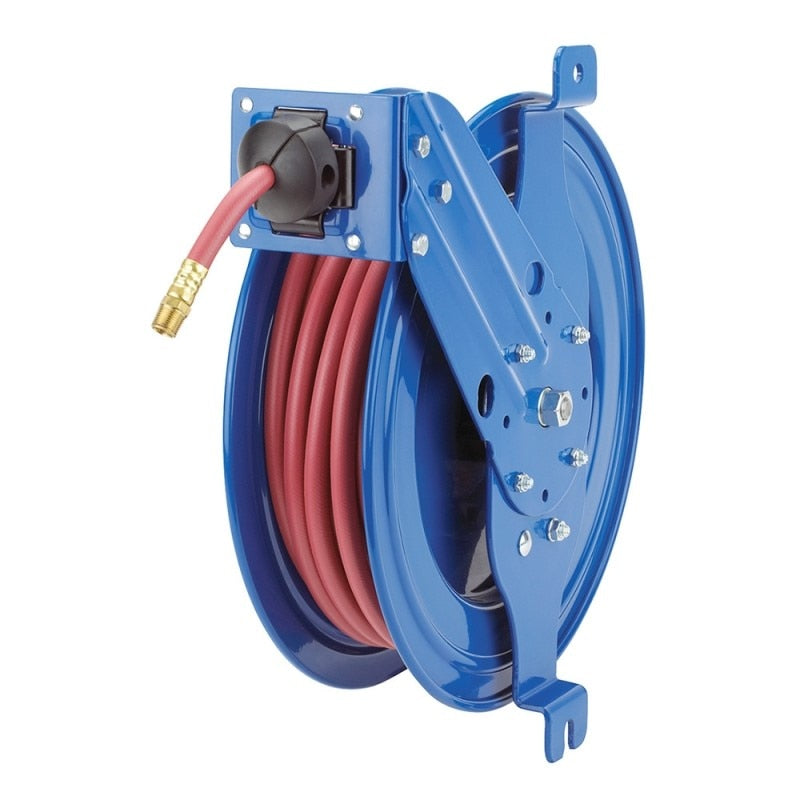

Coxreels SG17-M425 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS SG17-M425 is a side-mount, spring-driven hose reel built for air, water, oil, and grease service in demanding trade environments. Part of the COXREELS SG Series, it accepts hose with a 1/2 inch ID and 13/16 inch OD up to 25 feet in length. The reel mounts to any vertical flat surface using a simple two-bolt pattern, making it practical for permanent or temporary installs. A multi-position guide arm with roller assembly gives technicians direct control over hose routing and retraction. CNC robotically spun steel discs with rolled edges deliver the structural durability required for daily service use. Licensed mechanics, fleet service technicians, and industrial maintenance crews are the primary installers.

The SG17-M425 is designed for tight-space installations where hose management and quick access matter. Common deployment locations include service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The spring-driven retraction eliminates manual coiling, reducing wear on both the hose and the operator. The side-mount profile keeps the reel close to the wall or cabinet surface, maximizing usable workspace. This model handles air, water, oil, and grease lines, making it adaptable across multiple service bays or mobile units without requiring separate reels for each fluid type.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel enables seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for safe field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Two-bolt side-mount pattern installs and detaches quickly on any vertical flat surface, cabinet, or enclosed space
• Adjustable guide arm and roller assembly moves to six different positions using a standard wrench for maximum hose control
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings reduce ongoing maintenance

Compatibility

Designed for use with air, water, oil, and grease hose with a 1/2 inch ID and 13/16 inch OD, up to 25 feet in length. Part of the COXREELS SG Series for side-mount spring-driven hose reel applications.

Installation Notes

Installation is typically performed by a qualified mechanic or maintenance technician. Before mounting or servicing, shut off the fluid supply and relieve all pressure from the hose and reel assembly. The two-bolt mounting pattern requires a flat, structurally sound vertical surface capable of supporting the reel weight plus dynamic hose load. Guide arm position is adjusted with a standard wrench — confirm the arm is locked in position before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length Capacity: 25 feet
• Reel Drive Type: Spring driven
• Mount Style: Side mount, 2-bolt vertical flat surface
• Guide Arm Positions: 6 adjustable positions
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat, chip and rust resistant
• Weight: 46 pounds
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Material: Steel
• UPC: 674255741584

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG17-M425
