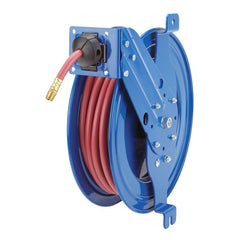

Coxreels SG13L-L325 Spring Driven Hose Reel 25 Ft

Product Description

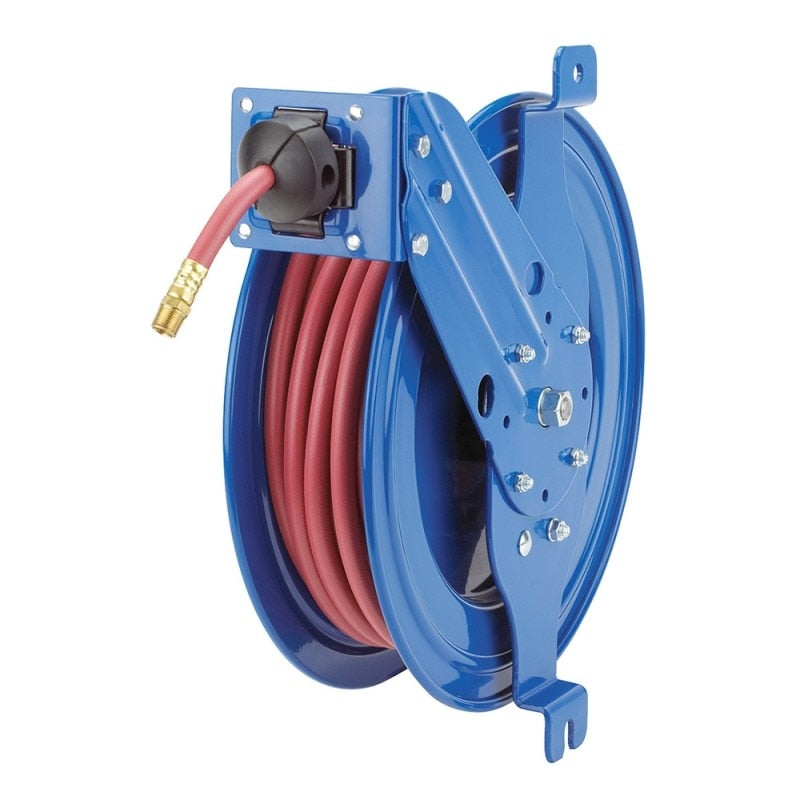

The COXREELS SG13L-L325 is a spring-driven hose reel from the SG Series, designed for controlled dispensing and retraction of air, water, oil, or grease hose in demanding service environments. The reel accepts 3/8 inch ID hose up to 25 feet in length and is built with heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. A solid brass 90-degree full-flow NPT swivel allows hose installation without removing the reel from its mount. The enclosed cartridge-style motor is lubricated and easily removable for field maintenance. Licensed trades including mobile service technicians, shop mechanics, and lube technicians are the typical installers for this unit.

The SG13L-L325 is suited for side-mount installation on vertical flat surfaces including service vehicle compartments, tool benches, walls, beams, vehicle lift systems, and machine tool stations. Its compact profile and two-bolt mounting pattern make it practical for tight spaces where a full-sized swing-arm reel would not fit. The adjustable six-position guide arm and roller assembly allow the hose outlet to be directed where needed, reducing kinking and wear during repeated use cycles. This reel is appropriate for both temporary and permanent installations across automotive, industrial, and fleet service settings.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor — removable for maintenance without disassembling the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without unmouting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for added strength, durability, and hose protection
• Side-mount, two-bolt pattern installs and detaches quickly from any vertical flat surface
• Six-position adjustable guide arm and roller assembly for directed hose control in confined spaces
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated precision bearings for consistent, low-maintenance operation

Compatibility

The SG13L-L325 accepts 3/8 inch ID hose up to 25 feet and is compatible with air, water, oil, and grease service lines. Designed as an OEM-style side-mount spring-driven reel for vertical flat surface installation in automotive, fleet, and industrial service applications.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic. Shut off and depressurize the supply line completely before mounting or connecting the reel. The two-bolt side-mount pattern requires a solid, load-bearing vertical surface rated for the combined weight of the reel and filled hose. Verify that all NPT swivel connections are sealed with thread sealant appropriate for the media in use before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 3/8 inch
• Hose Outside Diameter: 5/8 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Mounting Style: Side mount, vertical flat surface, 2-bolt pattern
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Finish: CPC powder coat, chip resistant, rust inhibiting
• Guide Arm Positions: 6 adjustable positions
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 23 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG13L-L325
