Coxreels SG13L-L125 Spring Driven Hose Reel 25 Ft

Product Description

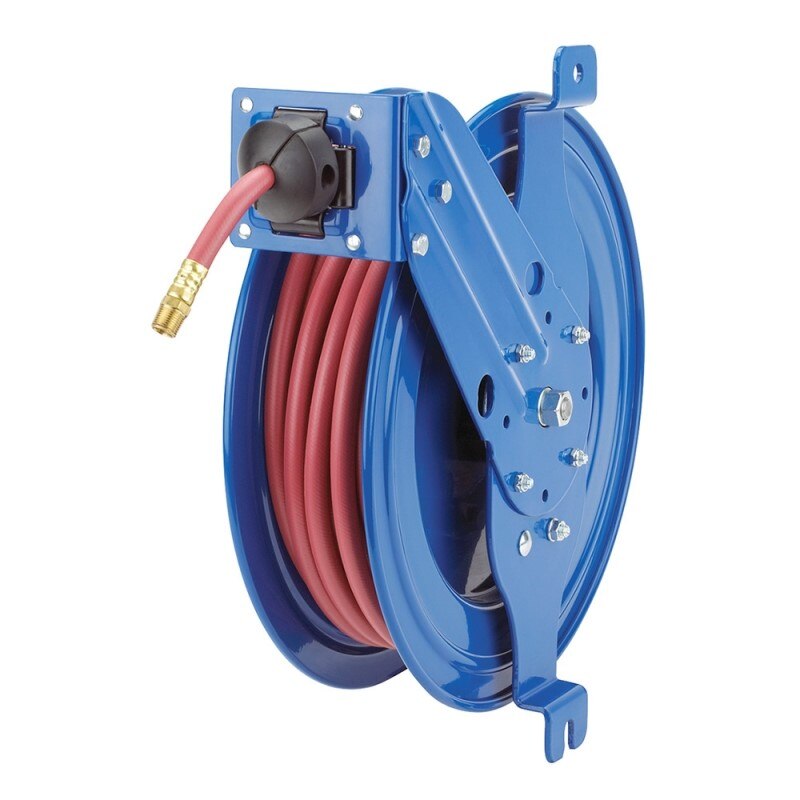

The COXREELS SG13L-L125 is a side-mount, spring-driven hose reel designed for air, water, oil, and grease service in demanding trade environments. Built with heavy-duty CNC robotically spun and ribbed steel discs, this reel accepts 1/4 inch ID hose up to 25 feet in length. A cartridge-style spring motor drives hose retraction automatically, keeping work areas clear and hoses off the floor. The unit mounts to any vertical flat surface using a simple two-bolt pattern, making it straightforward to install or remove. Licensed plumbers, HVAC technicians, fleet mechanics, and general service technicians will find this reel well-suited to fixed shop stations and mobile service vehicles alike.

The SG13L-L125 is built for tight-space installations including service truck bays, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The multi-position guide arm adjusts to six positions, giving technicians precise hose routing control in cramped or unconventional mounting orientations. This makes it a practical choice wherever hose management space is limited and fast repeated deployment is required.

Key Features

• Side-mount two-bolt pattern installs and detaches quickly from any vertical flat surface for temporary or permanent use
• Adjustable guide arm and roller assembly moves to six positions for maximum hose control in tight spaces
• Spring-driven cartridge motor is enclosed, lubricated, and removable for safe field maintenance without taking the reel off its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel
• CNC robotically spun and ribbed steel discs with rolled edges provide structural strength, hose protection, and operator safety
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed as an OEM-style replacement or direct installation unit for air, water, oil, and grease hose reel applications in the COXREELS SG Series side-mount spring-driven product family.

Installation Notes

Installation is performed by qualified service technicians or mechanics. Power down or depressurize all connected lines before mounting or servicing the reel. Secure the unit to a structurally sound vertical flat surface using the two-bolt mounting pattern per the manufacturer instructions. Follow applicable OSHA and facility safety guidelines when working with pressurized hose assemblies.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 25 feet
• Material: Steel
• Mount Type: Side mount, vertical flat surface
• Mounting Pattern: 2-bolt
• Guide Arm Positions: 6
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 22 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG13L-L125
