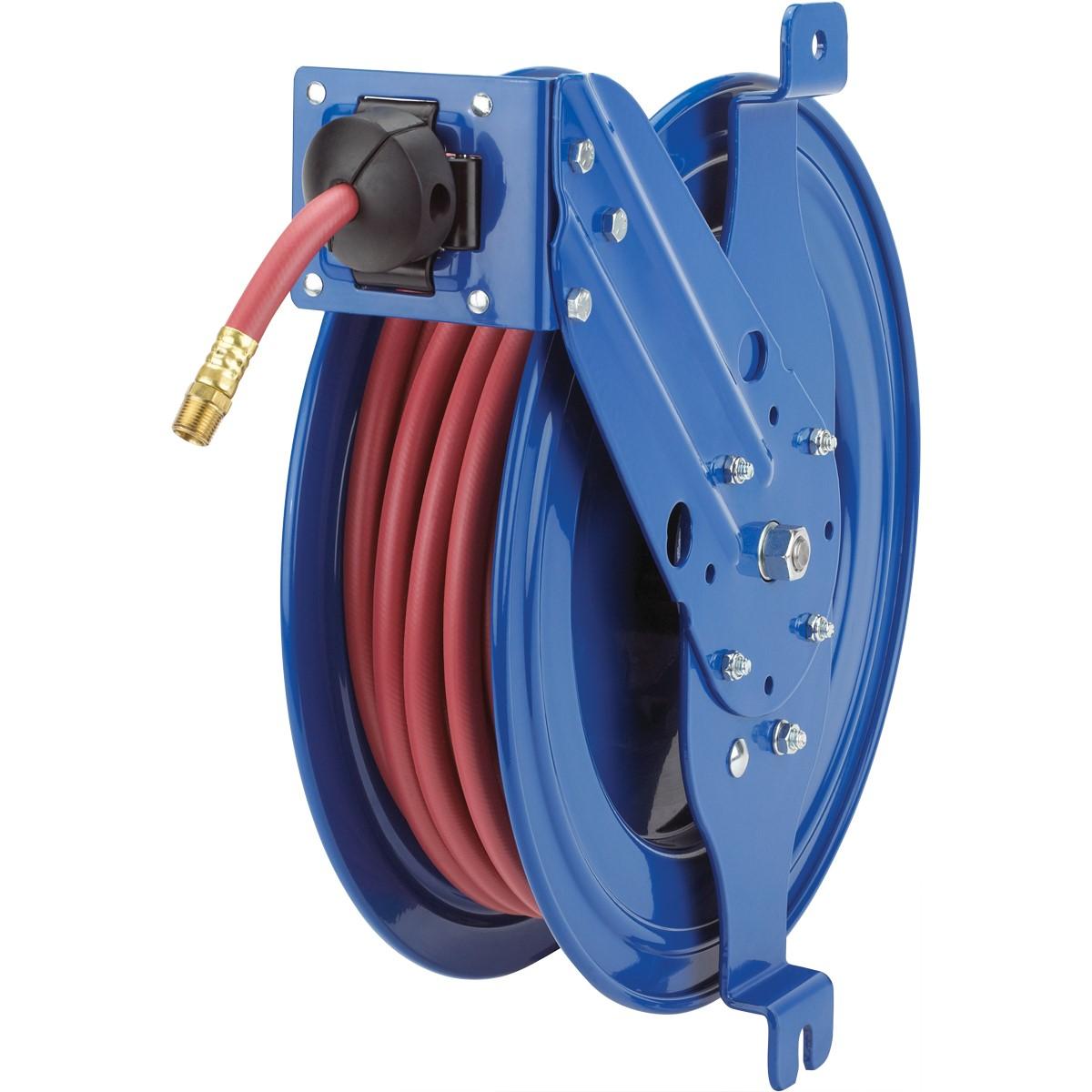

Coxreels SG13-L135 Spring Driven Hose Reel 35 Ft Steel

Product Description

The COXREELS SG13-L135 is a spring-driven hose reel designed for demanding service environments where reliable hose management and space efficiency are required. Part of the SG Series, this unit handles air, water, oil, and grease applications. The reel features a 1/4 inch inner diameter hose inlet, accommodates 35 feet of hose, and is constructed with heavy-duty steel components. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. Precision bearings are permanently lubricated for long service life. Licensed HVAC techs, plumbers, and service technicians working from vehicles, shop benches, or fixed wall installations rely on this unit for consistent, hands-free hose retraction.

The SG13-L135 is suited for residential and commercial service applications including service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The side-mount design attaches to any vertical flat surface using a simple two-bolt pattern, making it practical for both temporary and permanent installations in tight or enclosed spaces. The adjustable guide arm supports six different positions to direct hose routing as needed for the specific work environment.

Key Features

• Spring-driven retraction for hands-free hose management in service and shop environments
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose changes without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Multi-position guide arm and roller assembly adjusts to six positions for maximum hose control
• Two-bolt side-mount pattern supports fast installation and removal on vertical flat surfaces
• CPC powder coat finish is chip-resistant and rust-inhibiting for long-term corrosion protection

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS SG Series, compatible with air, water, oil, and grease hose service applications requiring a 1/4 inch ID inlet and 35-foot hose capacity on a side-mount configuration.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic. Mount the reel to a vertical flat surface using the two-bolt pattern before connecting the hose supply line. Shut off and depressurize the supply line completely before making any connections or performing maintenance on the swivel or cartridge motor. Follow applicable shop safety and equipment codes when mounting to service vehicles or lift systems.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 1/2 inch
• Hose Length: 35 feet
• Drive Type: Spring driven
• Mount Style: Side mount, vertical flat surface
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 26 pounds
• Material: Steel
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG13-L135
