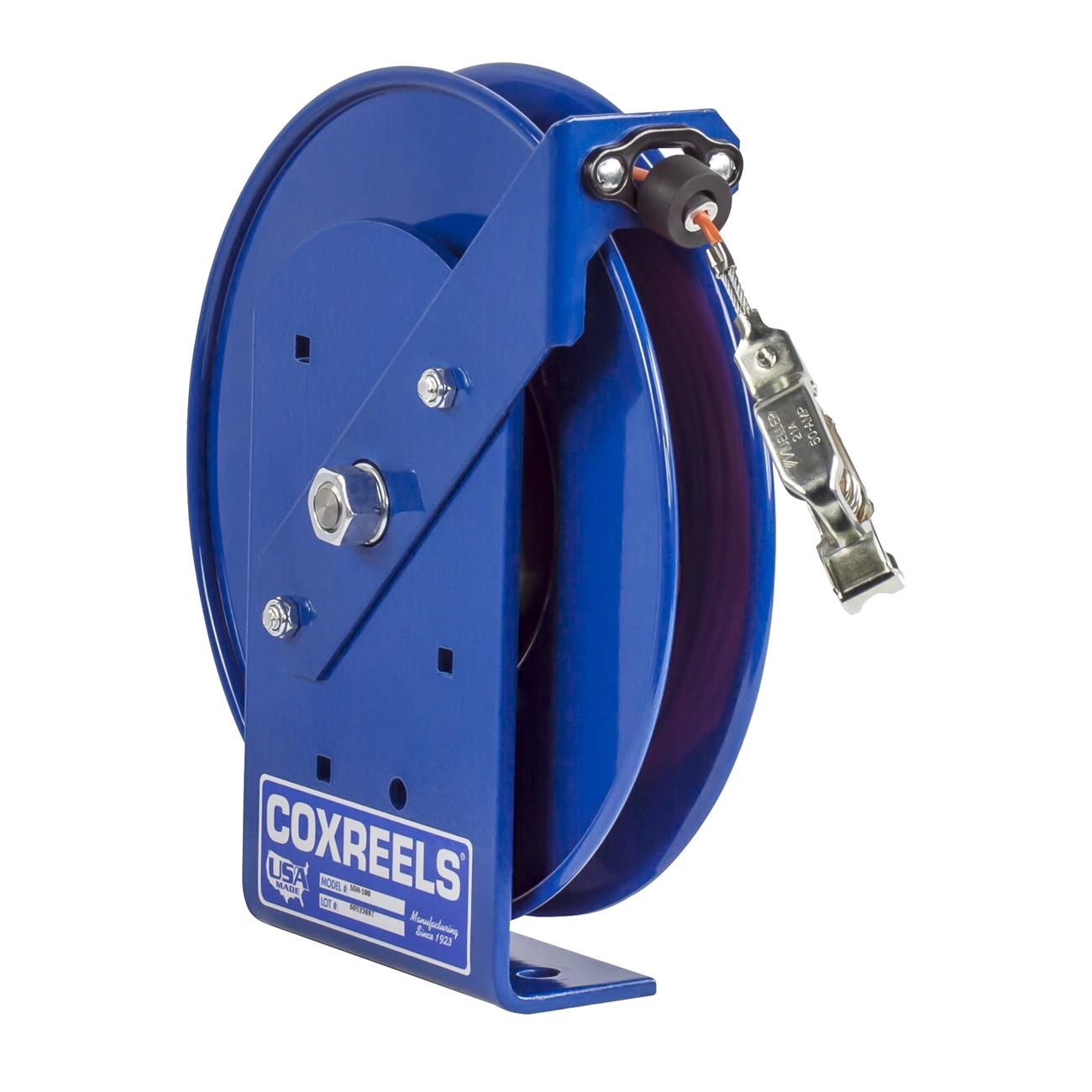

Coxreels SDH-200-1 Static Discharge Cable Reel 200 Ft

Product Description

The COXREELS SDH-200-1 is a heavy-duty static discharge cable reel designed for use in combustible and fuel-handling environments where uncontrolled static buildup presents an ignition hazard. Part of the COXREELS SD and SDH Series, this unit holds 200 feet of 7-strand by 7-wire stainless steel cable with a high-visibility orange vinyl cover. It features direct hand crank retraction and is built on a solid one-piece steel base with a single pedestal and support post requiring no welding. At 15 pounds, it is durable without being unwieldy for service bay or fueling station installation.

This reel is intended for use in locations where static grounding is required before and during fuel transfer or handling of flammable materials. Typical installations pair this unit with a fuel hose reel in commercial fueling stations, petroleum distribution facilities, fleet maintenance shops, and industrial sites handling combustible liquids or gases. The multi-position aluminum guide arm allows mounting to walls, floors, ceilings, and vehicle surfaces, giving installers flexibility across a range of site configurations.

Key Features

• Direct hand crank retraction for controlled, manual cable retrieval
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base and support post with single pedestal design, no-weld construction
• Multi-position aluminum guide arm compatible with wall, floor, ceiling, and vehicle mounting
• 7-strand by 7-wire stainless steel cable with high-visibility orange vinyl cover
• Includes 50-amp grounding clamp, adjustable solid rubber cable stop, and permanently lubricated precision bearings
• CPC powder coat finish is chip-resistant and rust-inhibiting

Compatibility

Designed as an OEM-style static discharge grounding reel for use in combustible environments; commonly paired with fuel hose reels in petroleum and industrial fluid-handling applications.

Installation Notes

Installation should be performed by a qualified electrician or licensed technician familiar with grounding requirements in hazardous locations. Confirm compliance with applicable NFPA and NEC codes for static grounding in Class I hazardous environments before mounting. Power down or de-energize any associated equipment before making grounding connections. Verify the grounding clamp makes solid metal-to-metal contact with the vessel or container being bonded.

Technical Specifications

• Cable Length: 200 feet
• Cable Construction: 7-strand x 7-wire stainless steel with orange vinyl cover
• Drive Type: Hand crank
• Base Material: Steel
• Guide Arm Material: Aluminum
• Grounding Clamp Rating: 50 amps
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 15 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255923775

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SDH-200-1
