Coxreels SD-50-1 Static Discharge Cable Reel 50 Ft

Product Description

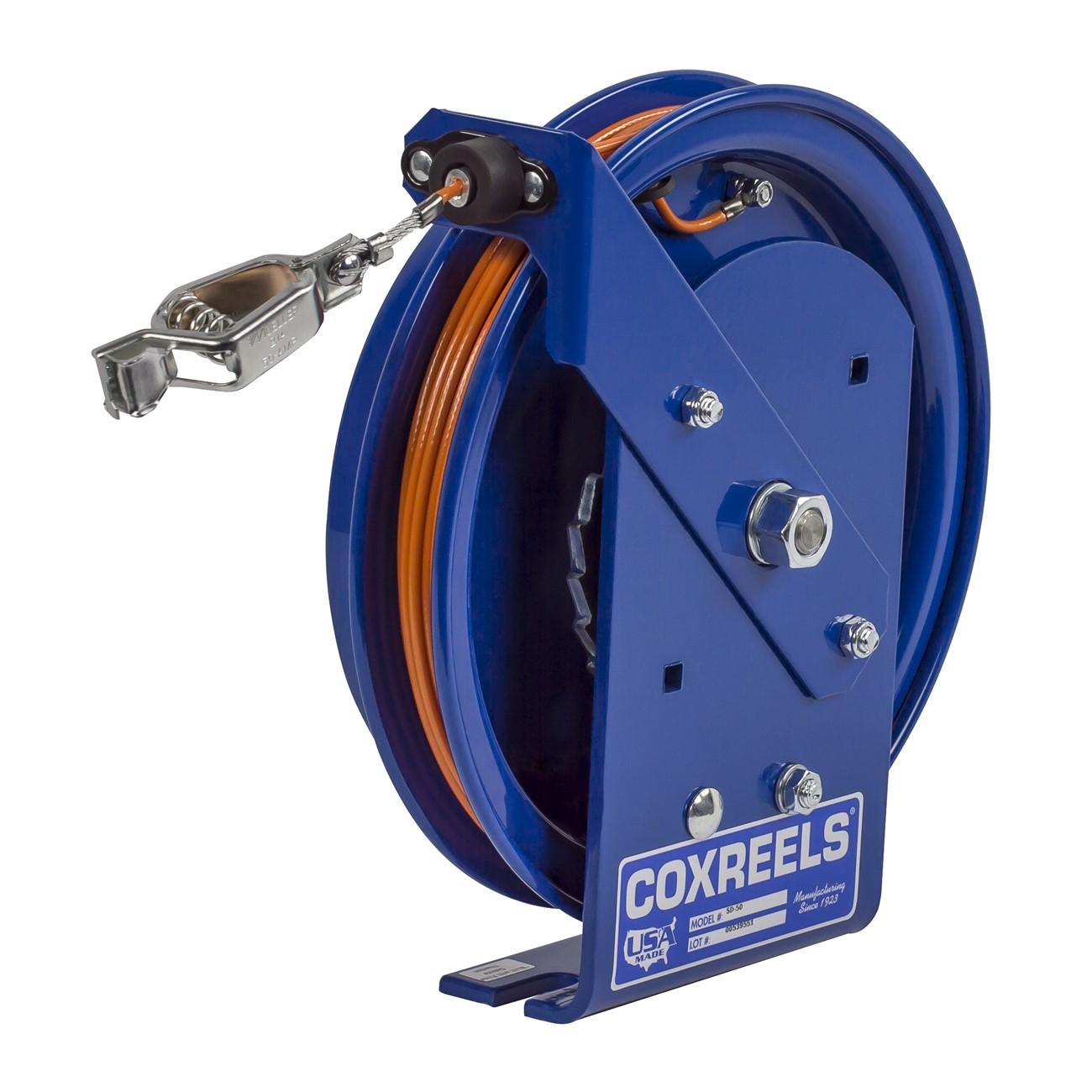

The COXREELS SD-50-1 is a spring-driven static discharge cable reel built for use in combustible environments where uncontrolled static buildup poses an ignition risk. The reel stores and deploys a 50-foot, 7-strand by 7-wire stainless steel cable with a high-visibility orange vinyl cover, allowing technicians to ground fuel-handling equipment quickly and reliably before transfer operations begin. The steel drum and disc assembly is CNC robotically spun with ribbed, rolled-edge construction for structural strength and operator safety. A permanently lubricated cartridge-style spring motor retracts the cable automatically and can be removed without disassembling the reel for streamlined field maintenance.

This reel is designed for fuel delivery, petroleum transfer, and chemical handling applications where static grounding is required by safety protocol or code. It is commonly mounted alongside fuel hose reels at service stations, fleet fueling facilities, industrial dispensing stations, and mobile fuel trucks. The adjustable multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across fixed and mobile installations. A 50-amp grounding clamp is included for direct connection to the vessel or vehicle being grounded.

Key Features

• Spring-driven cartridge motor retracts cable automatically; removable for easy maintenance without full disassembly
• 7-strand by 7-wire stainless steel cable with high-visibility orange vinyl cover for durability and quick identification
• CNC robotically spun steel discs with ribbed construction and rolled edges for strength and hose protection
• Single-pedestal, one-piece steel base with no-weld support post for maximum stability
• Adjustable aluminum guide arm supports wall, floor, ceiling, and vehicle mounting
• CPC chip-resistant, rust-inhibiting powder coat finish with adjustable solid rubber cable stop and 50-amp grounding clamp included

Compatibility

Designed as an OEM-style static discharge grounding reel for use in combustible and fuel-handling environments; commonly paired with fuel hose reels in petroleum transfer and industrial dispensing installations.

Installation Notes

Installation should be performed by a qualified technician familiar with static grounding requirements and applicable fire and safety codes. Ensure all power and fuel flow to the work area is shut off before mounting or servicing the reel. The guide arm mounting hardware should be secured to a surface rated for the reel weight. Verify the grounding clamp connection provides a low-resistance path to earth ground before placing the reel in service.

Technical Specifications

• Cable Length: 50 feet
• Cable Construction: 7-strand x 7-wire stainless steel with orange vinyl cover
• Drive Type: Spring drive
• Grounding Clamp Rating: 50 amps
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 20 pounds
• Material: Steel, Powder Coated
• UPC: 674255719125

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SD-50-1
