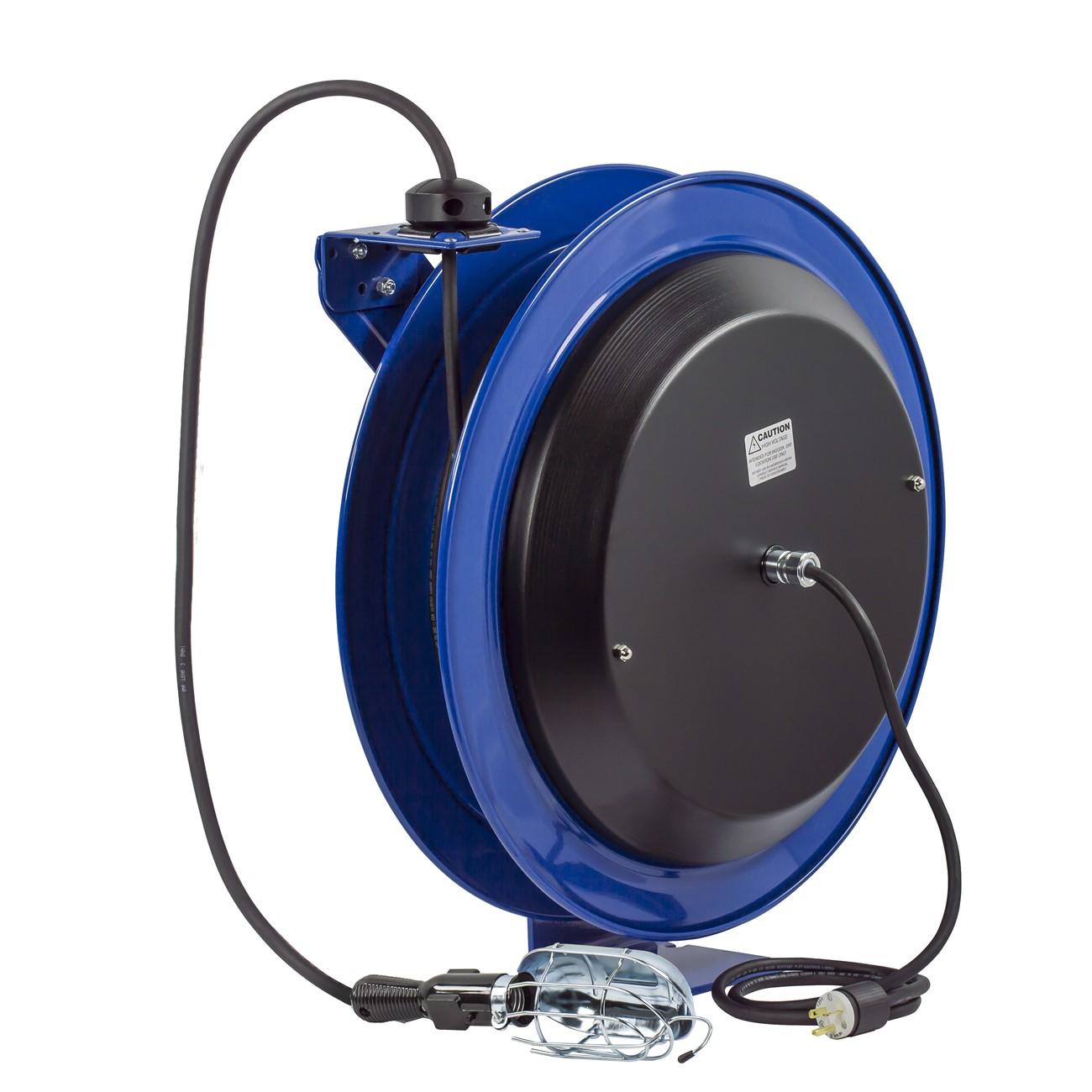

Coxreels PC24-0016-E Power Cord Reel 100 Ft Spring Drive

Product Description

The COXREELS PC24-0016-E is a spring-driven power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel holds 100 feet of power cord and retracts automatically after each use. Core construction uses CNC robotically spun and ribbed steel discs with rolled edges for structural strength and cord protection. A powder-coated steel component cover gives technicians fast access to the slip ring for routine maintenance without removing the reel from its mount. Licensed electricians and industrial maintenance professionals are the primary installers of this unit.

The PC24-0016-E belongs to the COXREELS PC Series, which is modeled after the proven P and SH Series platform. It is suited for industrial facilities, service garages, maintenance shops, and fleet service vehicles where a reliable, retractable power source is needed at a fixed or vehicle-mounted station. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable across a wide range of installation environments.

Key Features

• Self-retracting spring drive mechanism retrieves 100 feet of cord automatically
• External component cover allows slip ring maintenance without dismounting the reel
• Cartridge-style motor is lubricated, enclosed, and removable for safe servicing
• CNC spun and ribbed steel discs with rolled edges for durability and cord protection
• Single-pedestal steel base with one-piece support post and no-weld construction for stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable rubber cord stop, and incandescent caged drop light with tool tap plug

Compatibility

Designed as a heavy-duty industrial-grade power cord reel for fixed and vehicle-mounted installations requiring a retractable 100-foot power cord source.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for cord reels and branch circuit connections. Disconnect and lock out all power to the circuit before mounting or wiring the unit. Verify the mounting surface can support the reel weight of 73 pounds plus load, and use appropriate hardware for the selected mounting position. Do not exceed the cord and electrical ratings specified on the unit nameplate.

Technical Specifications

• Cord Capacity: 100 ft
• Drive Type: Spring Drive
• Housing Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 73 pounds
• UPC: 674255922426

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC24-0016-E
