Coxreels PC19-7516-E Power Cord Reel 75 Ft Spring Drive

Product Description

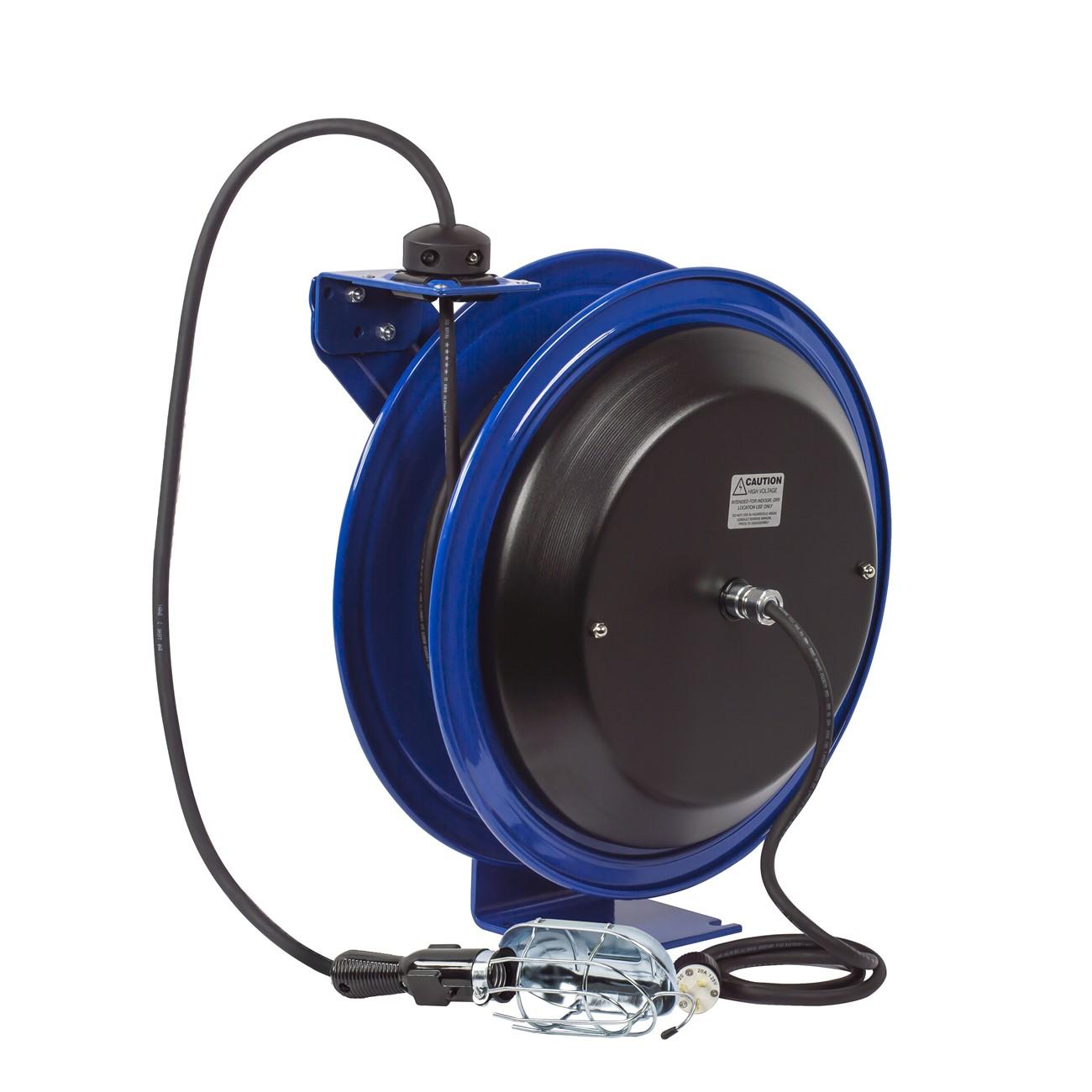

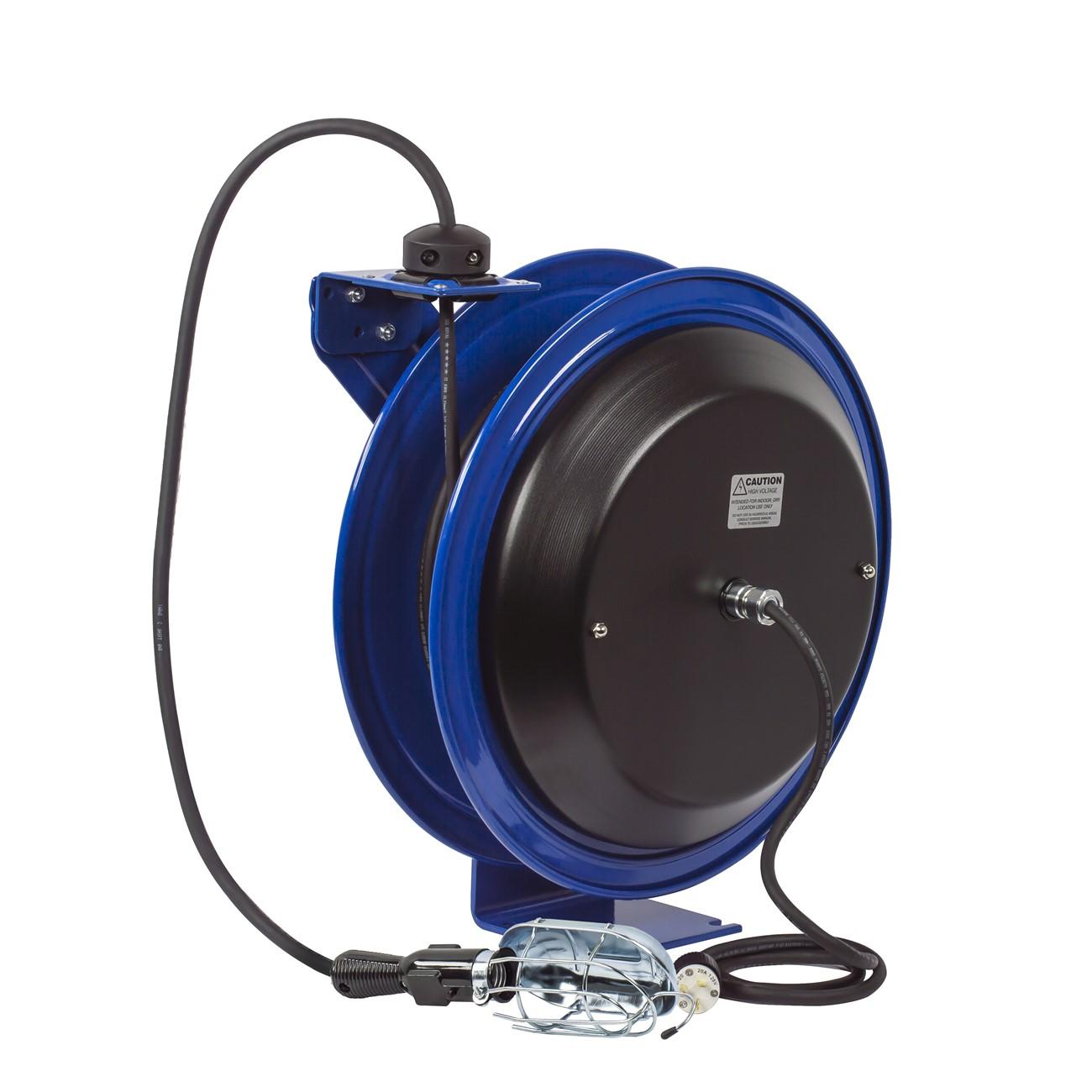

The COXREELS PC19-7516-E is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. Part of the COXREELS PC Series, it holds 75 feet of cord and retracts automatically to eliminate tangled extension cords on the job site. The reel weighs 60 pounds and is constructed with CNC robotically spun steel discs and a solid one-piece steel base. A powder coat finish resists chips and rust for long-term durability in demanding environments. Licensed electricians and industrial maintenance technicians are the primary installers of this unit.

The PC19-7516-E is designed for industrial facilities, commercial shops, garages, fleet service bays, and vehicle-mounted installations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of fixed and mobile service setups. The unit ships as a single reel assembly and includes a 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and an incandescent caged drop light with a tool tap plug.

Key Features

• Spring-driven self-retraction eliminates tangled extension cords and improves worksite safety
• 75-foot cord capacity for extended reach in large bays or industrial floor applications
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection
• External component cover in heavy-gauge powder coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is removable for safe, convenient servicing
• Solid one-piece steel base with single pedestal design and dual axle support for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations

Compatibility

Designed as an OEM-style replacement or direct installation unit for heavy-duty industrial power cord reel applications requiring a spring-driven, steel-constructed reel with 75-foot cord capacity.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power sources before servicing the reel, slip ring, or internal components. Ensure the mounting surface is rated to support the weight of the loaded reel assembly. The multi-position guide arm must be secured in the correct orientation for the chosen mounting configuration before energizing the unit.

Technical Specifications

• Cord Capacity: 75 feet
• Drive Type: Spring Drive
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 60 pounds
• Material: Steel
• Finish: CPC Powder Coat
• UPC: 674255922419

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19-7516-E
