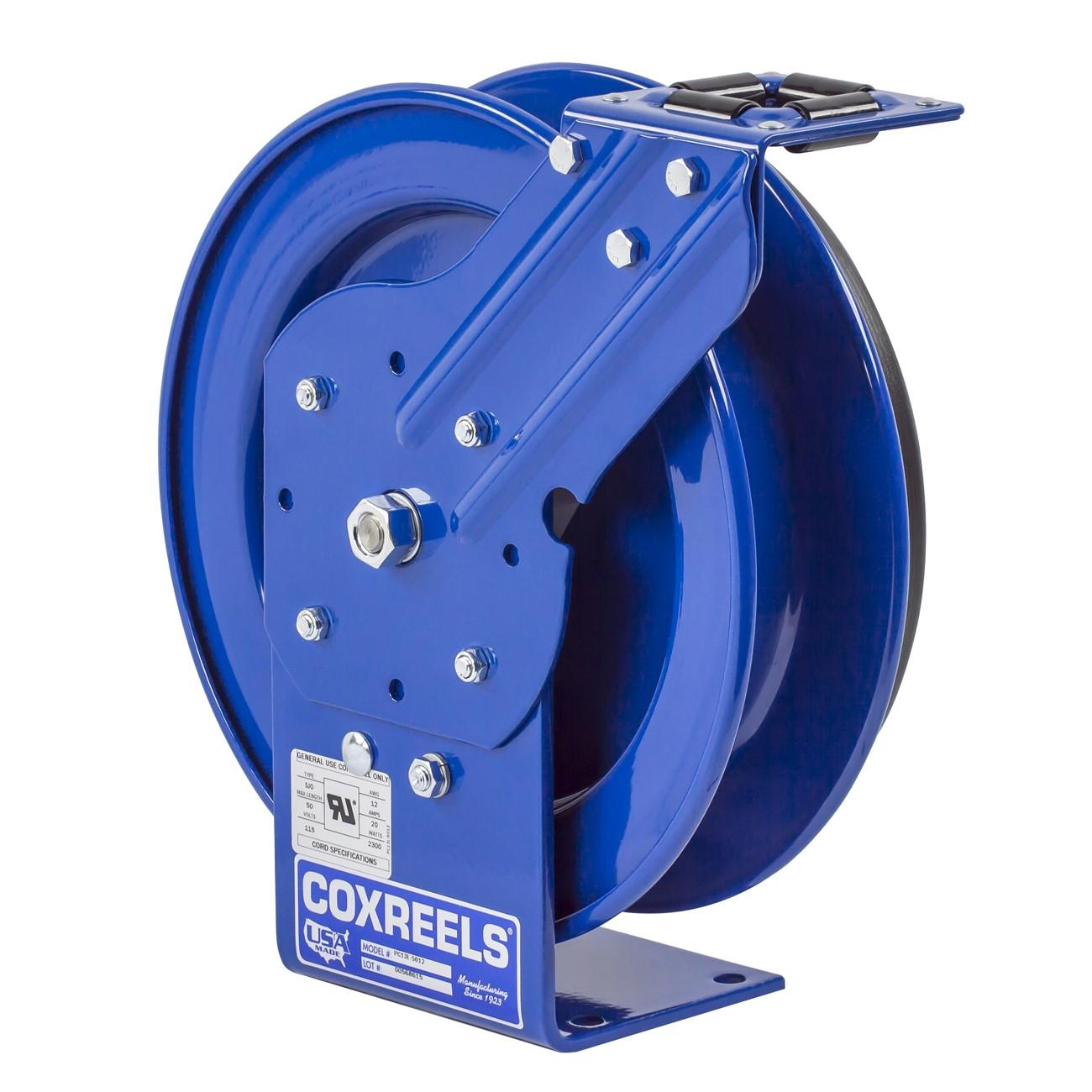

Coxreels PC13L-5016 Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13L-5016 is a spring-driven power cord reel built for heavy-duty industrial and commercial use. Part of the COXREELS PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features CNC robotically spun and ribbed steel discs with rolled edges for added strength and cord protection. At 31 pounds, the unit is constructed around a solid one-piece steel base and support post with no welds, giving it a stable single-pedestal footprint suited for demanding service environments. It is intended for installation and regular use by electricians, maintenance technicians, and industrial facility personnel.

The PC13L-5016 is designed for fixed or vehicle-mounted installations where a retractable power cord source is needed in place of standard extension cords. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, making it suitable for service bays, warehouses, manufacturing floors, and fleet maintenance facilities. The 50-foot cord capacity covers most mid-range service reach requirements without excess cord management overhead.

Key Features

• Spring-driven self-retracting mechanism eliminates tangled extension cords and reduces trip hazards
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and straightforward servicing
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and cord protection
• Solid one-piece steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

The PC13L-5016 is modeled after the COXREELS P and SH Series and is designed as a direct-fit replacement in applications where those series have been used. It is suited for fixed industrial power cord reel installations requiring a 50-foot spring-driven retractable reel.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for cord reel and power distribution equipment. Power must be fully de-energized at the circuit before making any electrical connections to the reel. The mounting surface must be capable of supporting the weight of the unit plus the loaded cord. Do not exceed the cord reel rated capacity or modify the spring motor assembly in the field.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring drive
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 31 pounds
• Material: Steel
• Base Design: Single pedestal, one-piece no-weld steel base
• Finish: Powder coat, chip-resistant and rust-inhibiting
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13L-5016
