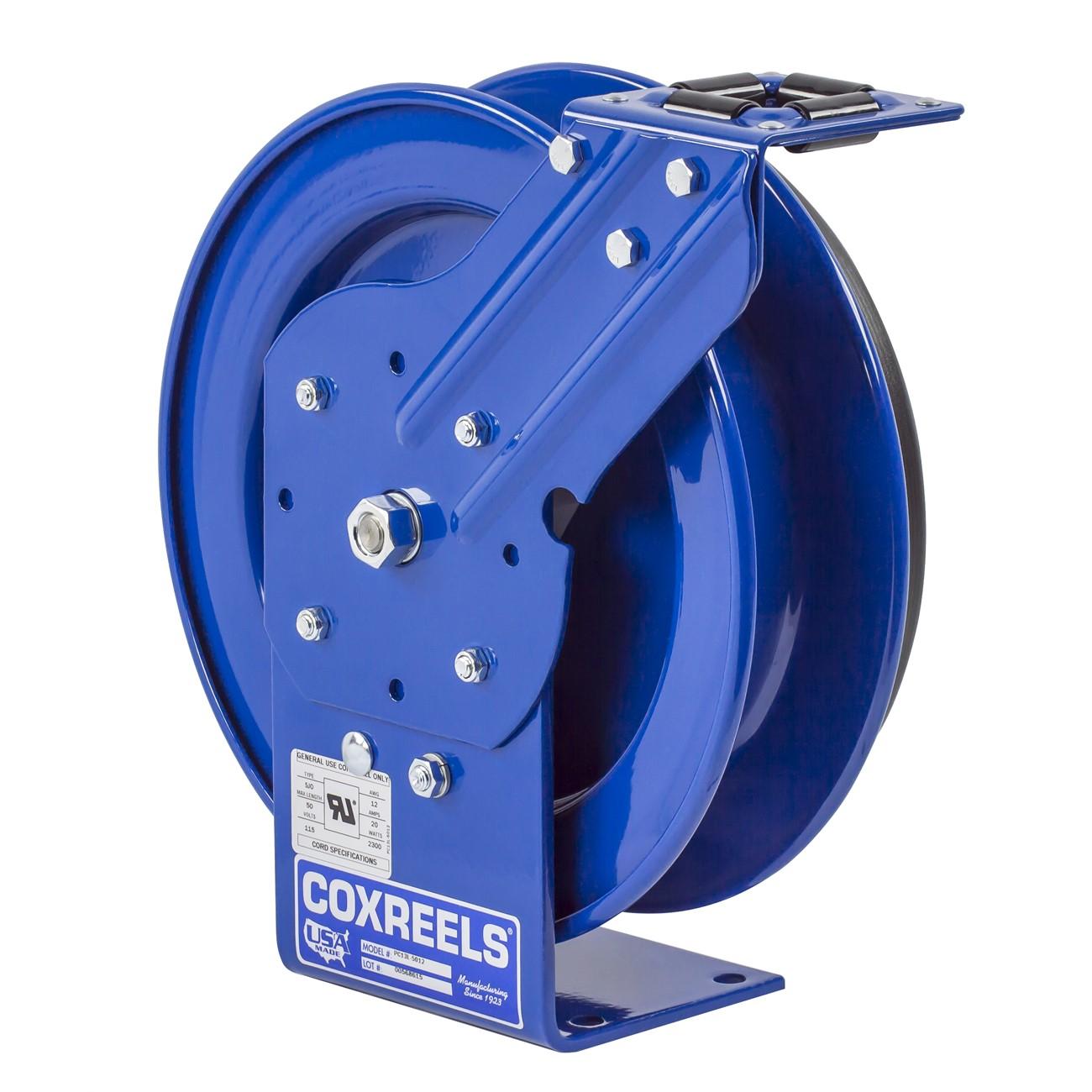

Coxreels PC13L-5012 Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13L-5012 is a spring-driven power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords by self-retracting the cord automatically, reducing trip hazards and improving jobsite efficiency. The reel houses a 50-foot power cord and is constructed with CNC robotically spun steel discs, a solid one-piece steel base, and a powder-coat finish that resists chips and rust. A cartridge-style spring motor is fully enclosed and lubricated for long service life. At 29 pounds, this is a substantial unit intended for permanent or semi-permanent mounting by electricians and maintenance technicians in demanding environments.

The PC13L-5012 is suited for industrial facilities, commercial workshops, vehicle service bays, and similar settings where a reliable, retractable power source is needed at a fixed station. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of installation layouts. The external component cover allows access to slip ring components for routine maintenance without removing the reel from its mount, which is a meaningful advantage in production or service environments where downtime matters.

Key Features

• Spring-driven self-retraction eliminates cord tangling and reduces trip hazards
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Cartridge-style spring motor is enclosed, lubricated, and removable for maintenance
• External component cover allows slip ring service without dismounting the reel
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Solid one-piece steel base with support post, no-weld construction for maximum stability
• Chip-resistant, rust-inhibiting powder-coat finish on all steel components

Compatibility

The PC13L-5012 belongs to the COXREELS PC Series, which is modeled after the P and SH Series reel platforms. It is designed as a direct-mount industrial power cord reel for facilities and service vehicle applications requiring a 50-foot retractable cord capacity.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for cord reels and fixed wiring installations. Power must be disconnected from the circuit before mounting, wiring, or performing any slip ring maintenance. Ensure the mounting surface is rated to support the weight of the reel plus cord load before securing the base. Refer to the manufacturer installation instructions for torque and wiring terminal guidance specific to this unit.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Weight: 29 pounds
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Mounting: Multi-position guide arm (wall, floor, ceiling, vehicle)
• UPC: 674255921122

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13L-5012
