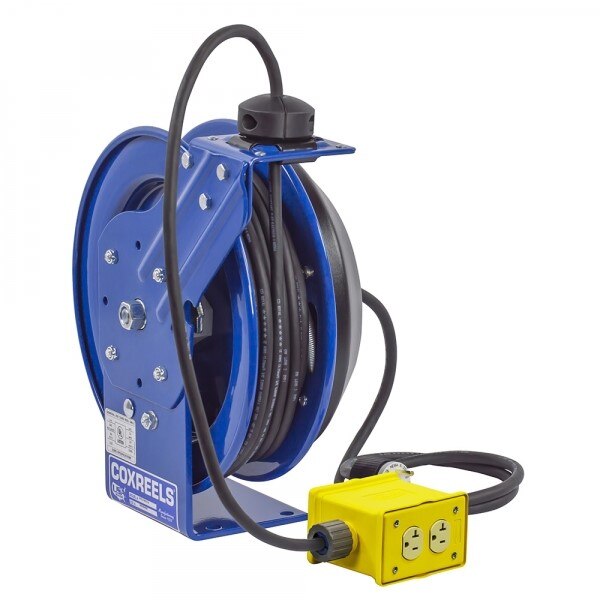

Coxreels PC13-5016-H Pc Series Power Cord Reel 50 Ft

Product Description

The COXREELS PC13-5016-H is a heavy-duty, industrial-grade spring-driven power cord reel built for demanding trade environments. Part of the PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection, a powder-coated steel component cover for easy slip ring access, and a permanently lubricated cartridge-style spring motor. At 37 pounds and measuring 13 inches long by 17 inches wide by 15.25 inches tall, it is sized for fixed industrial installations. A licensed electrician or qualified maintenance tech is the typical installer.

The PC13-5016-H is designed for industrial and commercial facilities where a reliable, retractable power source is needed at a fixed workstation, service bay, or overhead mounting position. It accommodates 50 feet of cord and ships with a 5-foot lead cable and grounding plug. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across shop, fleet maintenance, and manufacturing environments where extension cord clutter creates safety and efficiency problems.

Key Features

• Self-retracting spring drive eliminates tangled extension cords and reduces trip hazards
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is removable for safe and convenient service
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for cord protection and operator safety
• Solid one-piece steel base with single pedestal design and support post, no weld construction, for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and integrated Industrial Duty LED Light

Compatibility

Designed as an OEM-style industrial power cord reel replacement and new-installation solution for fixed-mount applications requiring a spring-driven retractable cord management system.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for fixed electrical equipment. Power down and lock out the circuit before making any wiring connections to the lead cable or grounding plug. Ensure the mounting surface is rated to support the weight of the reel plus the loaded cord. Do not exceed the cord and amperage ratings specified on the reel nameplate.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring Drive
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 37 pounds
• Material: Steel
• Finish: Powder Coat
• UPC: 674255925939

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5016-H
