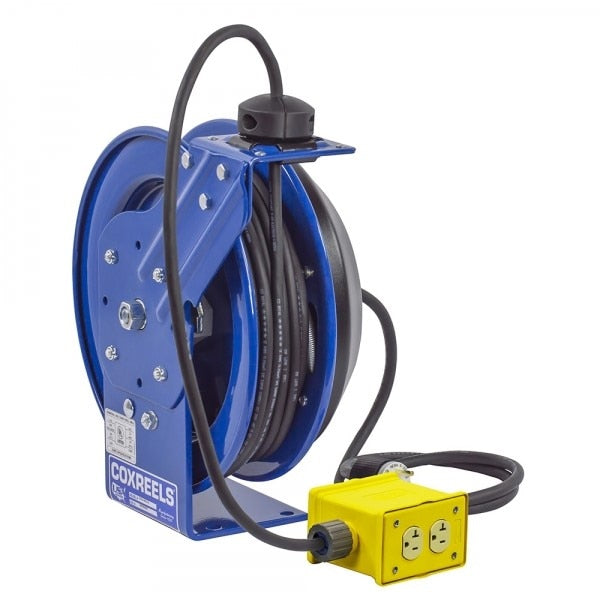

Coxreels PC13-5012-F Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13-5012-F is a heavy-duty, spring-driven power cord reel built for industrial and commercial applications where a reliable, self-retracting power source is required. Part of the PC Series, this unit carries 50 feet of cord and retracts automatically to eliminate tangled extension cords on the job site. The reel is constructed with CNC robotically spun and ribbed steel discs featuring rolled edges for strength and operator safety. A duplex GFCI metal industrial receptacle and a 5-foot lead cable with grounding plug are included. Licensed electricians and industrial maintenance technicians are the primary installers of this equipment.

The PC13-5012-F is designed for demanding industrial environments where a permanent or semi-permanent power cord management solution is needed. It is suited for manufacturing floors, service bays, warehouses, and fleet maintenance facilities. The multi-position guide arm allows mounting to walls, floors, ceilings, and vehicles, making it adaptable across a wide range of facility layouts. The single-pedestal steel base with no-weld construction provides a stable mount in high-use settings.

Key Features

• Spring-driven self-retraction eliminates tangled extension cords and improves worksite safety
• CNC robotically spun and ribbed discs with rolled edges for enhanced durability and cord protection
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for straightforward maintenance
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Includes duplex GFCI metal industrial receptacle, adjustable solid rubber cord stop, and 5-foot lead cable with grounding plug
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct upgrade for industrial spring-driven power cord reel applications. Modeled after the COXREELS P and SH Series for form and function consistency.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before servicing the reel or its electrical components. Confirm that the mounting surface can support the weight of the loaded reel prior to fastening. Do not exceed the cord and electrical ratings specified for this unit.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring Drive
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 42 pounds
• Material: Steel
• Receptacle Type: Duplex GFCI Metal Industrial
• Finish: Powder Coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5012-F
