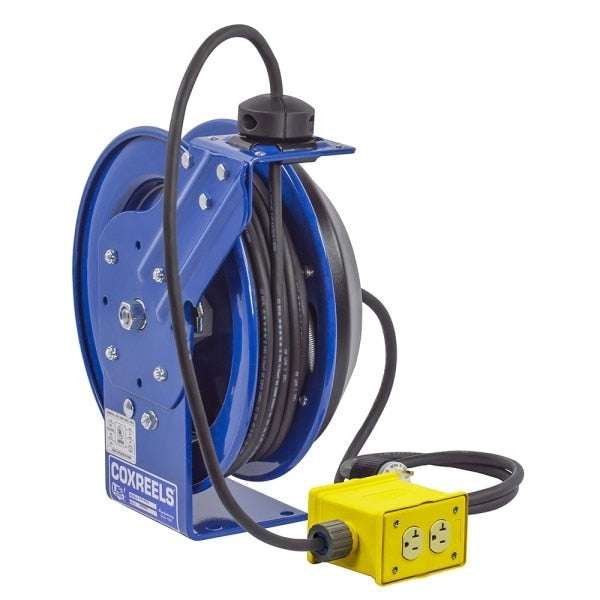

Coxreels PC13-5012-A Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13-5012-A is a heavy-duty, spring-driven power cord reel built for industrial and commercial applications. Part of the PC Series, it stores and retracts up to 50 feet of power cord, eliminating tangled extension cords on the job site. The spring drive mechanism self-retracts the cord automatically, reducing trip hazards and improving workflow. The reel is constructed with CNC robotically spun and ribbed steel discs with rolled edges for structural strength and operator safety. At 40 pounds, it is a substantial, permanently mounted unit intended for installation by licensed electricians or qualified maintenance professionals.

The PC13-5012-A is suited for manufacturing floors, service bays, warehouses, and fleet maintenance facilities where a reliable, fixed power source is needed at a workstation. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of facility layouts. The 5-foot lead cable and grounding plug allow direct connection to a power source, and the single industrial receptacle delivers power at the cord end. This reel is designed for demanding environments where a standard extension cord would be a safety liability.

Key Features

• Spring-driven self-retracting mechanism eliminates cord tangles and reduces trip hazards
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• Single-piece steel base with support post and no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and single industrial receptacle

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS PC Series, modeled after the P and SH Series reel platforms for industrial power cord management applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Power down and lock out the circuit before making any electrical connections to the reel. Secure the mounting base to a surface rated for the combined weight of the reel and cord load. Do not exceed the cord capacity or electrical rating marked on the reel housing.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring Drive
• Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 40 pounds
• UPC: 674255921061

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5012-A
