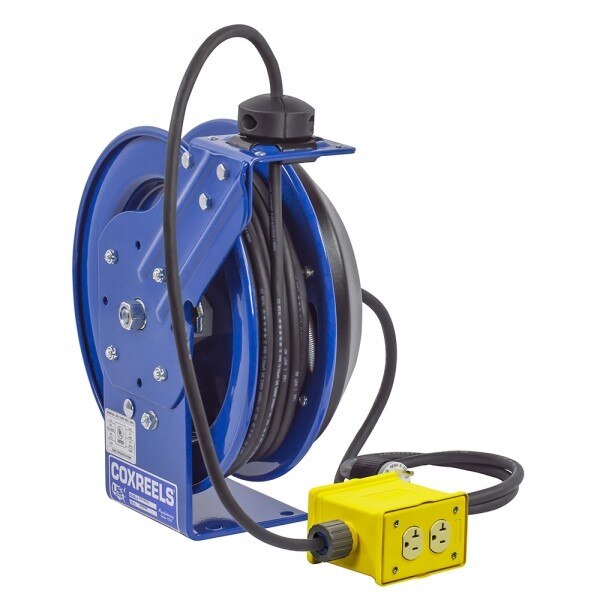

Coxreels PC13-3516-E Power Cord Reel 35 Ft Spring Drive

Product Description

The COXREELS PC13-3516-E is a spring-driven power cord reel built for heavy-duty industrial use. It replaces standard extension cords with a self-retracting system that reduces trip hazards and keeps work areas organized. The reel is constructed from powder-coated steel and features CNC robotically spun, ribbed discs with rolled edges for structural strength and operator safety. A 35-foot cord capacity makes it suited for a wide range of stationary and mobile service bays. Licensed electricians and industrial maintenance technicians are the primary installers. The unit ships ready for wall, floor, ceiling, or vehicle mounting via its multi-position guide arm.

The PC13-3516-E belongs to the COXREELS PC Series, which is modeled after the proven P and SH Series platform. It is intended for industrial and commercial environments where a reliable, permanent power cord management solution is needed. Typical applications include service garages, manufacturing floors, warehouses, and fleet maintenance facilities. The included 5-foot lead cable and grounding plug allow direct connection to a fixed power source. An incandescent caged drop light with a tool tap plug is also included, adding utility for technicians working in low-light conditions.

Key Features

• Spring-driven self-retraction keeps the cord coiled and reduces trip and tangle hazards
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and accessible field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges provide strength, durability, and cord protection
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and caged incandescent drop light with tool tap plug

Compatibility

Designed as an OEM-style replacement and direct-use power cord reel for industrial and commercial applications requiring spring-retractable cord management solutions.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power at the circuit breaker before mounting or wiring the unit. The multi-position guide arm should be secured to a structurally sound surface capable of supporting the reel weight plus cord load. Do not exceed the rated cord length or electrical capacity marked on the unit.

Technical Specifications

• Cord Length: 35 feet
• Drive Type: Spring Drive
• Frame Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 34 pounds
• Sold As: Each
• UPC: 674255921047

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-3516-E
