Coxreels P-WT-125 Welding Hose Reel 1/4 in 25 Ft Spring

Product Description

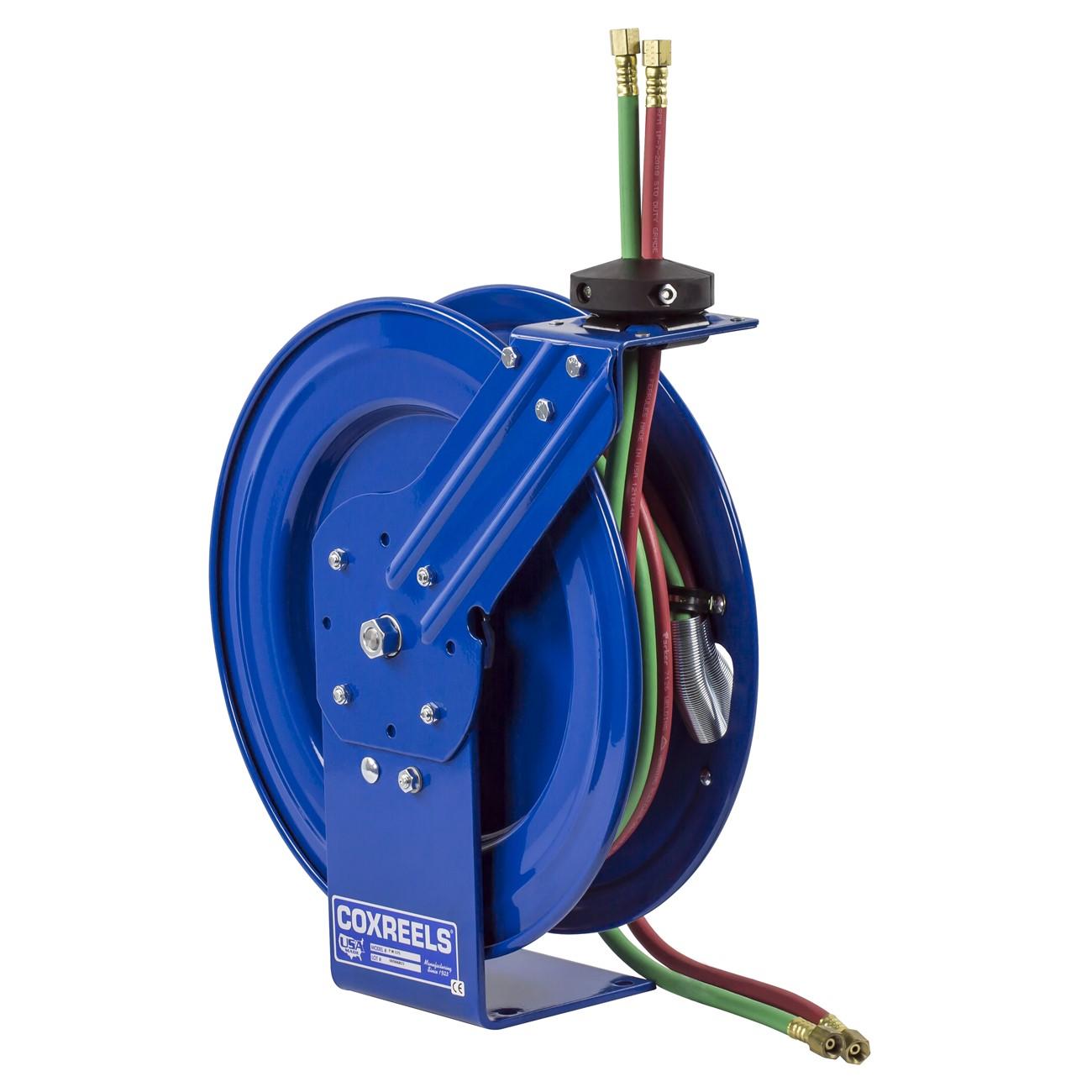

The COXREELS P-WT-125 is a spring-driven welding hose reel designed to manage twin-line welding hose in demanding shop and field environments. Built on the compact P-W Series chassis, it accommodates 1/4 inch ID hose up to 25 feet and features a CNC robotically spun steel disc construction with rolled edges for structural strength and hose protection. The external 90-degree full-flow dual-ported brass swivel with Viton seals routes both hose connections from the same side of the reel, eliminating the need to dismount the reel during use. Licensed welding technicians and industrial gas service professionals are the primary installers.

The P-WT-125 is suited for residential and light commercial welding stations, fabrication shops, and vehicle-mounted service setups. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of workspace layouts. The single pedestal base is constructed from solid one-piece steel with no weld joints, providing a stable footprint in high-use environments. The enclosed cartridge-style spring motor is removable for maintenance without full reel disassembly.

Key Features

• Spring-driven retraction with lubricated, enclosed cartridge motor for easy removal and maintenance
• External dual-ported brass swivel with Viton seals — both connections exit from the same side of the reel
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single pedestal design and no weld joints for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish for chip resistance and rust inhibition; includes adjustable solid rubber hose stop

Compatibility

Designed as an OEM-style replacement and direct-fit reel for 1/4 inch ID twin-line welding hose applications up to 25 feet in length within the COXREELS P-W Series product family.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable compressed gas safety codes. Shut off all gas supply valves and fully depressurize the hose and supply line before connecting or disconnecting the swivel fittings. Verify that the mounting surface — wall, floor, ceiling, or vehicle — is rated to support the reel weight and operational load before securing the base. Do not exceed the rated hose length or exceed the hose ID specification, as mismatched hose can damage the swivel seals and void the installation.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Disc Material: Steel
• Swivel Material: Brass with Viton seals
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 46 pounds
• UPC: 674255721623

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WT-125
