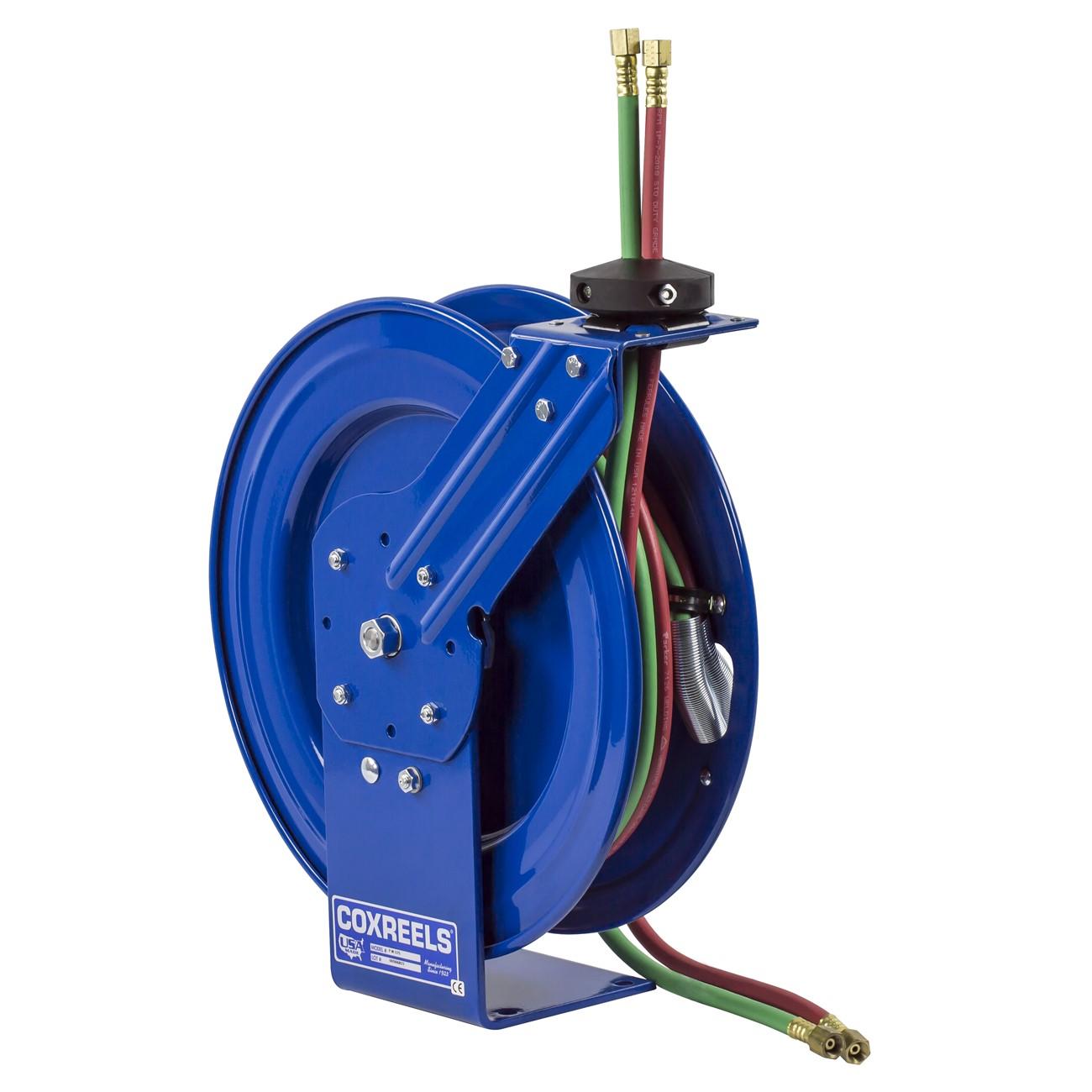

Coxreels P-WL-135 Welding Hose Reel 1/4 in 35 Ft Spring

Product Description

The COXREELS P-WL-135 is a spring-driven welding hose reel designed to manage twin-line welding hose in demanding shop and field environments. Built on the compact P-W Series chassis, it features a 1/4-inch inner diameter capacity and accommodates up to 35 feet of welding hose. The reel uses an external 90-degree full-flow dual-ported brass swivel with Viton seals, routing both hose connections from the same side so the reel never needs to be removed from its mount for connection access. Installation and service are handled by licensed welding equipment technicians or qualified maintenance personnel.

The P-WL-135 is suited for light industrial and fabrication environments where spring retraction and compact footprint are priorities. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, making this reel adaptable to fixed shop installations and service vehicle builds alike. The spring-driven retraction mechanism keeps twin-line welding hose controlled and off the floor, reducing trip hazards and hose wear in high-traffic work areas.

Key Features

• External 90-degree dual-ported brass swivel with Viton seals — both connections accessible from the same side, no reel removal required
• Enclosed cartridge-style spring motor is lubricated and fully removable for maintenance without disassembly of the full reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and single pedestal support post — no welds in the base structure for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; permanently lubricated precision bearings throughout

Compatibility

Designed for use with 1/4-inch inner diameter twin-line welding hose up to 35 feet in length as part of the COXREELS P-W Series spring-driven welding reel line.

Installation Notes

Mount installation and hose connection should be performed by a qualified technician familiar with welding gas systems and applicable safety codes. Shut off all gas supply at the source before connecting or disconnecting hose from the swivel. Verify that mounting hardware is rated for the combined weight of the reel and loaded hose before securing to wall, ceiling, floor, or vehicle surfaces. Do not exceed the hose length or pressure rating specified for this reel.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Swivel Material: Brass with Viton seals
• Disc Construction: CNC spun ribbed steel with rolled edges
• Base Material: Steel
Finish: CPC powder coat
• Mounting: Multi-position — wall, floor, ceiling, vehicle
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 40 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WL-135
