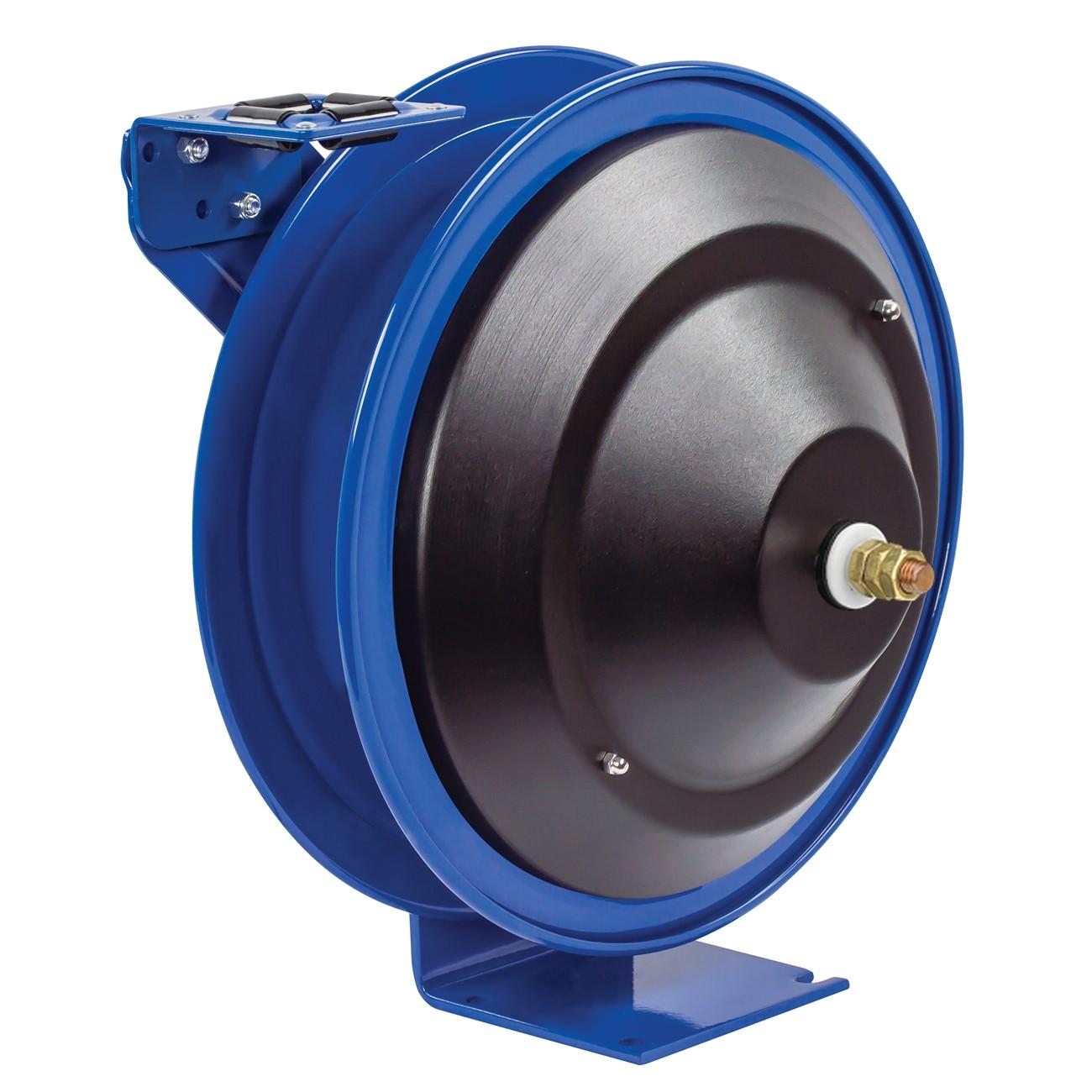

Coxreels P-WC17L-5002 Welding Cable Reel 50 Ft Spring Drive

Product Description

The COXREELS P-WC17L-5002 is a spring-driven welding cable reel built for professional trade environments where cable management directly affects jobsite safety and efficiency. Part of the P-WC Series, this unit stores up to 50 feet of welding cable on a self-retracting drum, keeping cable off the floor, reducing trip hazards, and extending cable service life. The reel is constructed with heavy-gauge steel and finished with a chip-resistant, rust-inhibiting CPC powder coat. A permanently lubricated cartridge-style motor and precision bearings are enclosed for long-term reliability with minimal maintenance intervals. Licensed welding professionals and industrial service technicians are the primary installers.

The P-WC17L-5002 is suited for fixed and mobile welding stations in fabrication shops, manufacturing facilities, vehicle service bays, and construction environments. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable to a wide range of workspaces. The single-pedestal, solid one-piece steel base provides maximum stability without requiring welded joints in the support structure.

Key Features

• Spring-driven self-retraction stores up to 50 feet of welding cable automatically
• Cartridge-style motor is lubricated, enclosed, and fully removable for maintenance without dismounting the reel
• External component cover in heavy-gauge CPC powder coated steel allows slip ring access without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, cable protection, and operator safety
• Solid one-piece steel base with single pedestal and Exclusive Super Hub dual axle support — no welded joints in the primary structure
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting orientations

Compatibility

Designed as an OEM-style spring-driven welding cable reel replacement or new installation for professional welding and fabrication applications requiring up to 50 feet of managed cable storage.

Installation Notes

Installation should be performed by a qualified electrician or welding equipment technician familiar with applicable NEC requirements for welding equipment circuits. Disconnect and lock out all power to the welding circuit before mounting or servicing the reel. Verify the mounting surface — wall, floor, ceiling, or vehicle — can support the static and dynamic load of the reel at full cable capacity. Do not exceed the cable length or gauge rating specified for this reel model.

Technical Specifications

• Cable Storage Length: 50 feet
• Drive Type: Spring driven self-retracting
• Frame Material: Steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Mounting: Multi-position — wall, floor, ceiling, or vehicle
• Weight: 42 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC17L-5002
