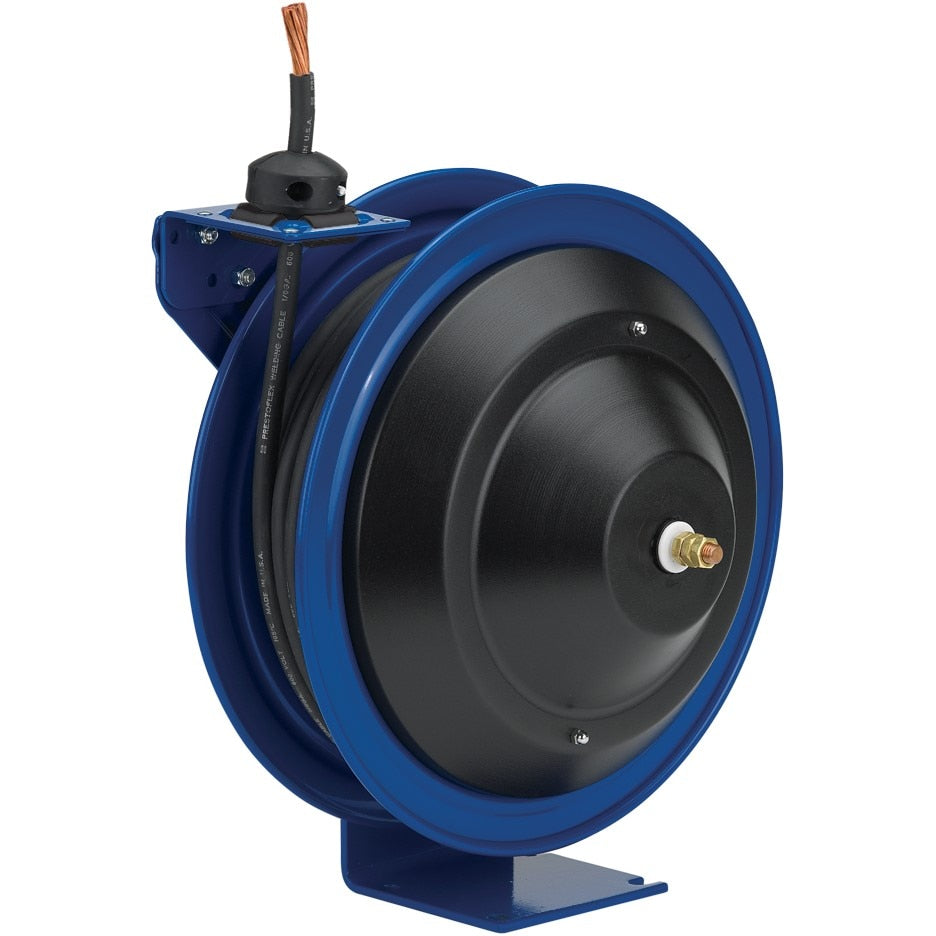

Coxreels P-WC17-3520 Welding Cable Reel 50 Ft

Product Description

The COXREELS P-WC17-3520 is a spring-driven welding cable reel built for demanding industrial and shop environments. It stores up to 50 feet of welding cable on a self-retracting drum, keeping the cable protected, organized, and ready for use. The reel is constructed from heavy-gauge steel and weighs 60 pounds, indicating a robust, permanent-mount design. A CPC powder coat finish resists chips and rust. Licensed electricians and welding equipment technicians are the typical installers for this class of reel.

The P-WC17-3520 is suited for welding stations in fabrication shops, manufacturing facilities, and service bays where cable management is critical to maintaining a safe and efficient work area. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable to a range of fixed and mobile installations. It is sold individually and is appropriate for applications requiring a 50-foot cable storage capacity.

Key Features

• Spring-driven self-retraction stores 50 feet of welding cable automatically
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Cartridge-style motor is lubricated, enclosed, and removable for straightforward maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Single-pedestal steel base with no-weld construction and dual axle support for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting

Compatibility

Designed as an OEM-style replacement or direct installation unit within the COXREELS P-WC Series, suitable for 50-foot welding cable reel applications in industrial and shop environments.

Installation Notes

Installation should be performed by a qualified electrician or trained welding equipment technician. Disconnect and lock out all electrical power to the welding circuit before mounting or servicing the reel. Ensure the mounting surface is capable of supporting the reel weight and the dynamic load of cable retraction. Follow applicable NEC guidelines for cable connections and grounding at the slip ring assembly.

Technical Specifications

• Cable Capacity: 50 feet
• Drive Type: Spring Drive
• Material: Steel
• Weight: 60 pounds
• Finish: CPC Powder Coat
• Mount Positions: Wall, Floor, Ceiling, Vehicle
• UPC: 674255921955

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC17-3520
