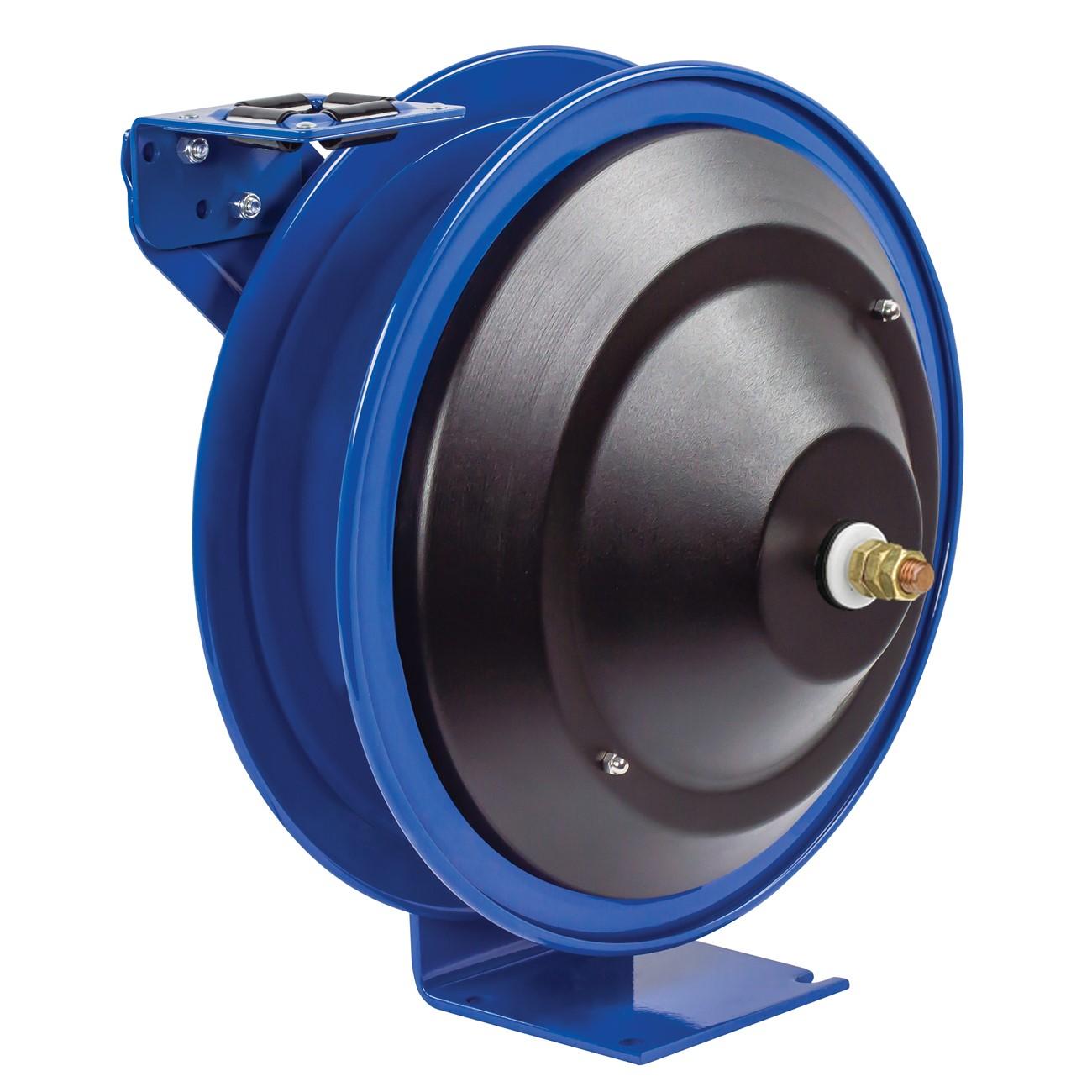

Coxreels P-WC13L-3504 Welding Cable Reel 35 Ft

Product Description

The COXREELS P-WC13L-3504 is a spring-driven welding cable reel designed to store, protect, and extend the service life of welding cable in demanding work environments. The reel holds up to 35 feet of welding cable and retracts automatically when released, keeping cable off the floor and out of the way. The steel construction includes CNC robotically spun and ribbed discs with rolled edges, a solid one-piece steel base and support post, and a CPC powder coat finish that resists chips and rust. Licensed welders, fabricators, and industrial maintenance technicians install this reel in shops, on vehicles, and in fixed workstations where organized cable management is required.

The P-WC13L-3504 is suited for both permanent and mobile installations. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of shop layouts and service truck setups. The cartridge-style spring motor is enclosed and lubricated for long service intervals. When maintenance is needed, the external component cover provides direct access to the slip ring assembly without removing the reel from its mount, reducing downtime during routine service calls.

Key Features

• Spring-driven self-retracting mechanism keeps 35 feet of welding cable neatly stored and off the work surface
• External component cover allows slip ring maintenance without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient service
• CNC robotically spun and ribbed steel discs with rolled edges for added strength, cable protection, and operator safety
• Solid one-piece steel base and support post with single pedestal design for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips and rust for long-term durability in industrial environments

Compatibility

Designed as an OEM-style replacement and standard installation reel for welding cable management applications in the COXREELS P-WC Series, accommodating 25, 35, or 50 foot welding cable configurations.

Installation Notes

Installation is typically performed by qualified welders, electricians, or industrial maintenance technicians. Before servicing or mounting the reel, disconnect all power sources and ensure the welding cable is fully de-energized. Secure the reel to a structurally sound mounting surface using appropriately rated hardware for the selected mounting position. Follow applicable NFPA and local electrical codes when connecting welding cable to the reel slip ring assembly.

Technical Specifications

• Cable Capacity: 35 feet
• Drive Type: Spring Drive
• Material: Steel
• Weight: 26 pounds
• UPC: 674255922006

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC13L-3504
