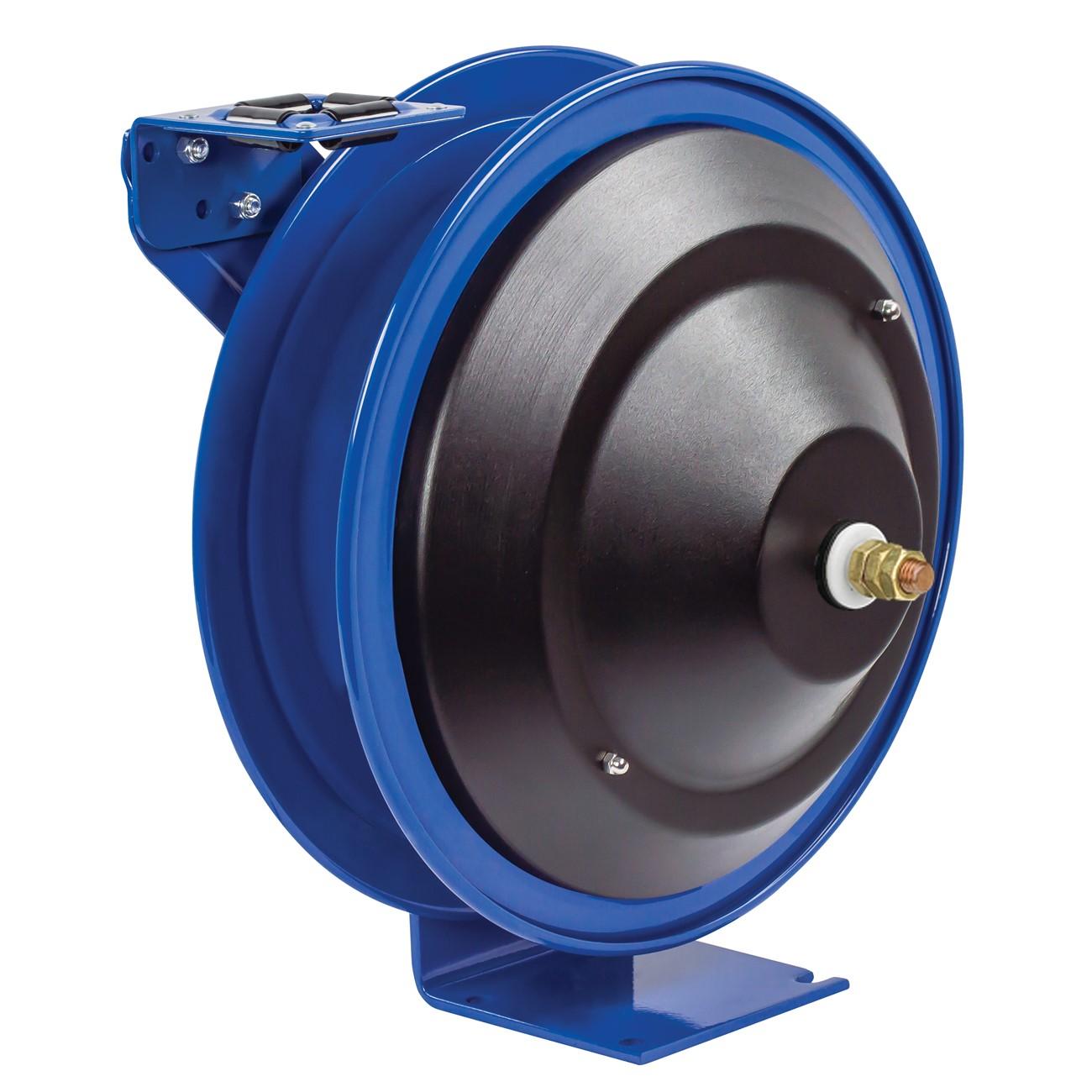

Coxreels P-WC13L-3502 Welding Cable Reel 35 Ft

Product Description

The COXREELS P-WC13L-3502 is a spring-driven welding cable reel designed to store, protect, and extend the service life of welding cable in demanding work environments. Part of the P-WC Series, it accommodates up to 35 feet of welding cable on a self-retracting drum built from heavy-gauge steel. The reel features a CPC powder-coat finish that resists chips and rust, and precision bearings that are permanently lubricated for long service intervals. It is typically installed by welding professionals, maintenance technicians, and industrial contractors who need a reliable, hands-free cable management solution at a fixed workstation or on a vehicle.

The P-WC13L-3502 is suited for both shop and field applications where organized cable storage reduces trip hazards and cable wear. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of installation configurations. The single-pedestal, one-piece steel base provides a stable footprint without added bulk. The enclosed cartridge-style motor is removable without special tooling, supporting routine maintenance in busy production or service environments.

Key Features

• Spring-driven self-retraction stores up to 35 feet of welding cable automatically
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• One-piece steel base with single-pedestal design and dual axle support for maximum stability without unnecessary weight
• CPC powder-coat finish resists chips and rust for long-term durability in industrial environments

Compatibility

Designed as an OEM-style spring-driven cable reel for use with standard welding cable in industrial, shop, and vehicle-mounted applications up to 35 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with cable reel mounting and welding system layouts. De-energize and disconnect all welding equipment before installing or servicing the reel. Secure the base to a structurally sound mounting surface appropriate for the selected orientation. Refer to applicable facility electrical and safety codes when integrating the reel into a permanent workstation setup.

Technical Specifications

• Cable Capacity: 35 feet
• Drive Type: Spring drive, self-retracting
• Material: Steel
• Finish: CPC powder coat
• Mounting: Multi-position guide arm (wall, floor, ceiling, vehicle)
• Weight: 26 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC13L-3502
