Coxreels P-WC13L-2501 Welding Cable Reel 25 Ft

Product Description

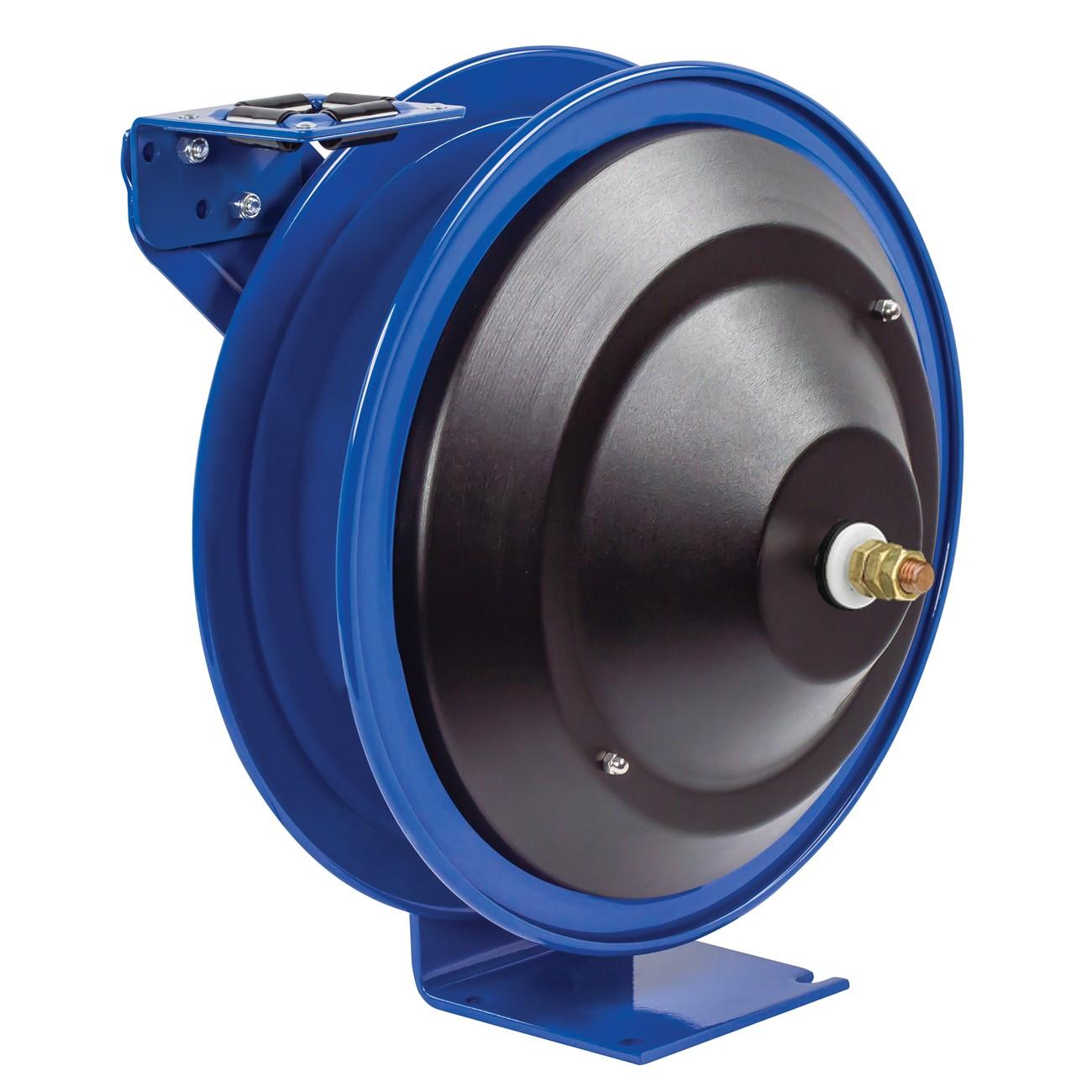

The COXREELS P-WC13L-2501 is a spring-driven welding cable reel designed to store, protect, and extend the service life of welding cable in demanding work environments. Part of the P-WC Series, it accommodates 25 feet of welding cable on a self-retracting drum built from heavy-gauge CPC powder-coated steel. The single-pedestal base is constructed from one solid piece of steel with no welds, providing maximum stability at a manageable 26 pounds. A permanently lubricated cartridge-style motor and enclosed slip ring assembly reduce downtime between service intervals. Welders, fabricators, and maintenance technicians working in shops, fleet service bays, and industrial facilities rely on this reel to keep cable off the floor and workspaces organized and safe.

The P-WC13L-2501 is suited for fixed and mobile installations in professional welding environments including fabrication shops, maintenance facilities, and service vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of workstation layouts. The spring-drive retraction mechanism keeps cable taut and under control during use, reducing trip hazards and cable wear. This reel is installed by welding professionals and industrial maintenance technicians in both light and heavy commercial settings.

Key Features

• Spring-drive self-retracting mechanism stores 25 feet of welding cable automatically
• One-piece solid steel base with single-pedestal design and no-weld construction for maximum stability
• Enclosed, lubricated cartridge-style motor is removable without special tools for routine maintenance
• External component cover allows slip ring access without removing the reel from its mount
• Heavy-gauge CNC robotically spun and ribbed discs with rolled edges for strength and operator safety
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips, rust, and corrosion for long service life

Compatibility

Designed as an OEM-style replacement and new-installation welding cable reel for professional welding and fabrication applications requiring a 25-foot spring-driven cable management solution.

Installation Notes

Installation should be performed by a qualified technician familiar with welding equipment and electrical cable management. Disconnect and de-energize all welding equipment before mounting or servicing the reel. The multi-position guide arm must be secured to a structurally sound surface rated for the combined weight of the reel and cable load. Consult applicable NFPA and OSHA standards for welding cable installation requirements in your jurisdiction.

Technical Specifications

• Cable Length: 25 feet
• Drive Type: Spring Drive
• Frame Material: Steel
• Base Construction: One-piece solid steel, no-weld single pedestal
• Weight: 26 pounds
• Mounting: Wall, floor, ceiling, or vehicle via multi-position guide arm
• Finish: CPC powder coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC13L-2501
