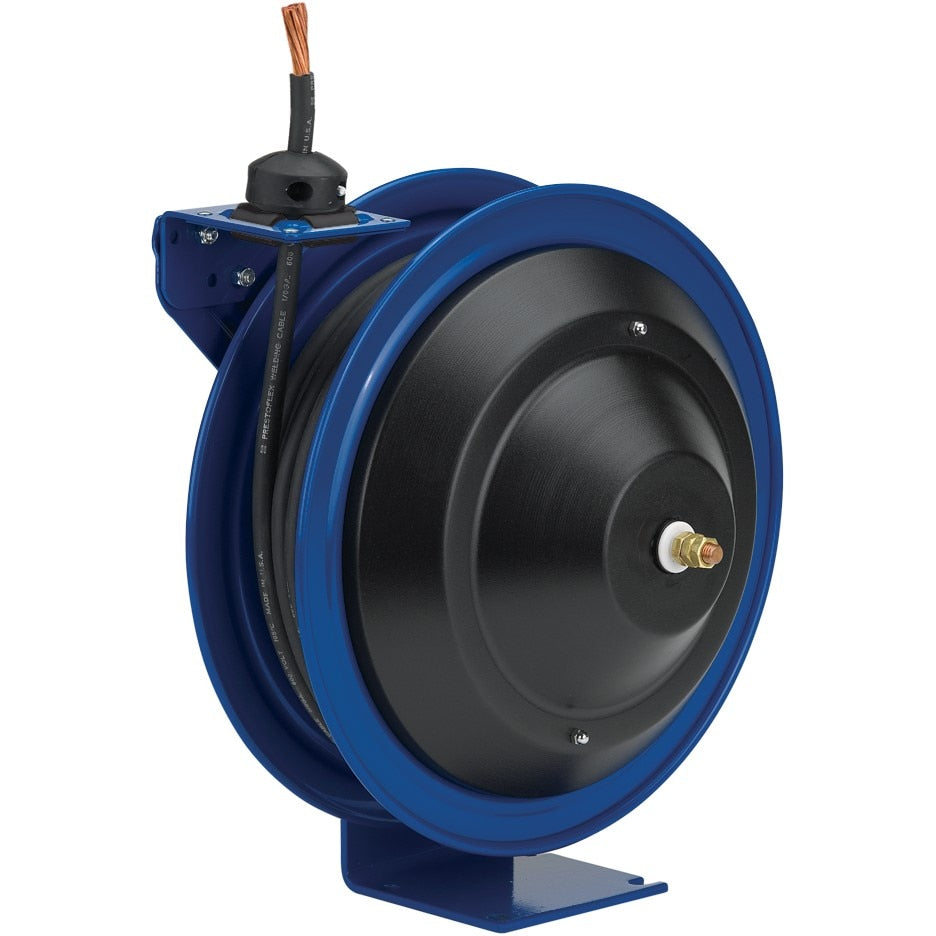

Coxreels P-WC13-3504 Welding Cable Reel 35 Ft Spring Drive

Product Description

The COXREELS P-WC13-3504 is a spring-driven welding cable reel built for industrial and shop environments where cable management directly affects safety and productivity. Part of the P-WC Series, this unit stores up to 35 feet of welding cable on a self-retracting drum, keeping the work area clear and the cable protected from damage caused by dragging, kinking, or foot traffic. The steel construction and CPC powder coat finish are designed for long-term durability in demanding conditions. Licensed electricians and welding equipment technicians are the primary installers of this reel type.

This reel is suited for welding stations in manufacturing facilities, fabrication shops, automotive service bays, and fleet maintenance environments. The multi-position guide arm allows mounting to walls, floors, ceilings, or vehicles, making it adaptable to a wide range of shop layouts. The 35-foot cable capacity fits most mid-range welding setups where the work area extends beyond a fixed station. The single-pedestal steel base provides a stable footprint without adding unnecessary weight.

Key Features

• Spring-driven self-retracting mechanism returns cable automatically after each use
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is removable for routine maintenance without full disassembly
• CNC robotically spun and ribbed discs with rolled edges for structural strength and cable protection
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish resists chipping, rust, and corrosion for extended service life

Compatibility

Designed as an OEM-style replacement or direct-install welding cable reel for industrial and commercial welding applications requiring up to 35 feet of retractable cable storage.

Installation Notes

Installation should be performed by a qualified electrician or welding equipment technician familiar with applicable NEC requirements for welding cable circuits. Disconnect and lock out all power sources before mounting or servicing the reel. Verify that the mounting surface and hardware are rated for the reel weight of 34 pounds plus cable load. Do not exceed the cable capacity rating of the drum.

Technical Specifications

• Cable Capacity: 35 feet
• Drive Type: Spring Drive
• Frame Material: Steel
• Finish: CPC Powder Coat
• Weight: 34 pounds
• Mounting: Multi-position guide arm, wall, floor, ceiling, or vehicle
• UPC: 674255921870

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC13-3504
