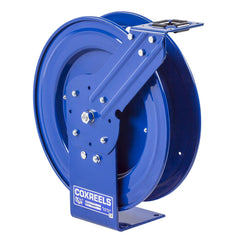

Coxreels P-MPL-420 Spring Driven Hose Reel 1/2 in 20 Ft

Product Description

The COXREELS P-MPL-420 is a spring-driven hose reel from the P Series line, built for heavy-duty trade applications where reliable hose retrieval and compact installation space are both required. The reel features a 1/2 inch inner diameter hose capacity rated for 20 feet of hose, housed in a solid steel construction with CNC robotically spun and ribbed discs. A lubricated, enclosed cartridge-style motor handles the retraction mechanism and is designed for straightforward field removal and maintenance. The machined brass 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount. Licensed contractors and service technicians in HVAC, plumbing, and fluid-handling trades are the primary installers.

The P-MPL-420 is suited for permanent wall, floor, ceiling, and vehicle mounting in both residential and light commercial service environments. The single-pedestal steel base with a no-weld support post provides a stable mounting footprint in service bays, utility rooms, and fleet vehicles. The multi-position guide arm makes it adaptable to tight or unconventional mounting configurations. Its compact overall footprint — 17.5 inches long, 8.5 inches wide, and 19.25 inches tall — allows installation in spaces where larger reels are impractical. This reel is commonly deployed in fluid transfer, pressure washing, oil dispensing, and similar continuous-use service scenarios.

Key Features

• Spring-driven retraction with lubricated, enclosed cartridge motor for easy removal and field maintenance
• Machined solid brass 90-degree full-flow NPT swivel — seal service and hose changes without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Single-pedestal, no-weld solid steel base and support post for maximum mounting stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish for chip resistance and rust inhibition; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven hose reel for 1/2 inch ID hose applications up to 20 feet in length across standard NPT-threaded fluid systems.

Installation Notes

Installation is typically performed by licensed plumbing, HVAC, or mechanical contractors following applicable local codes. Shut off fluid supply and relieve all line pressure before mounting or connecting the reel. Secure the steel base to a structural surface rated for the combined weight of the reel and filled hose assembly. Confirm NPT thread compatibility at the swivel connection before final tightening to avoid cross-threading or seal damage.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length Capacity: 20 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 41 pounds
• UPC: 674255718791

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-MPL-420
