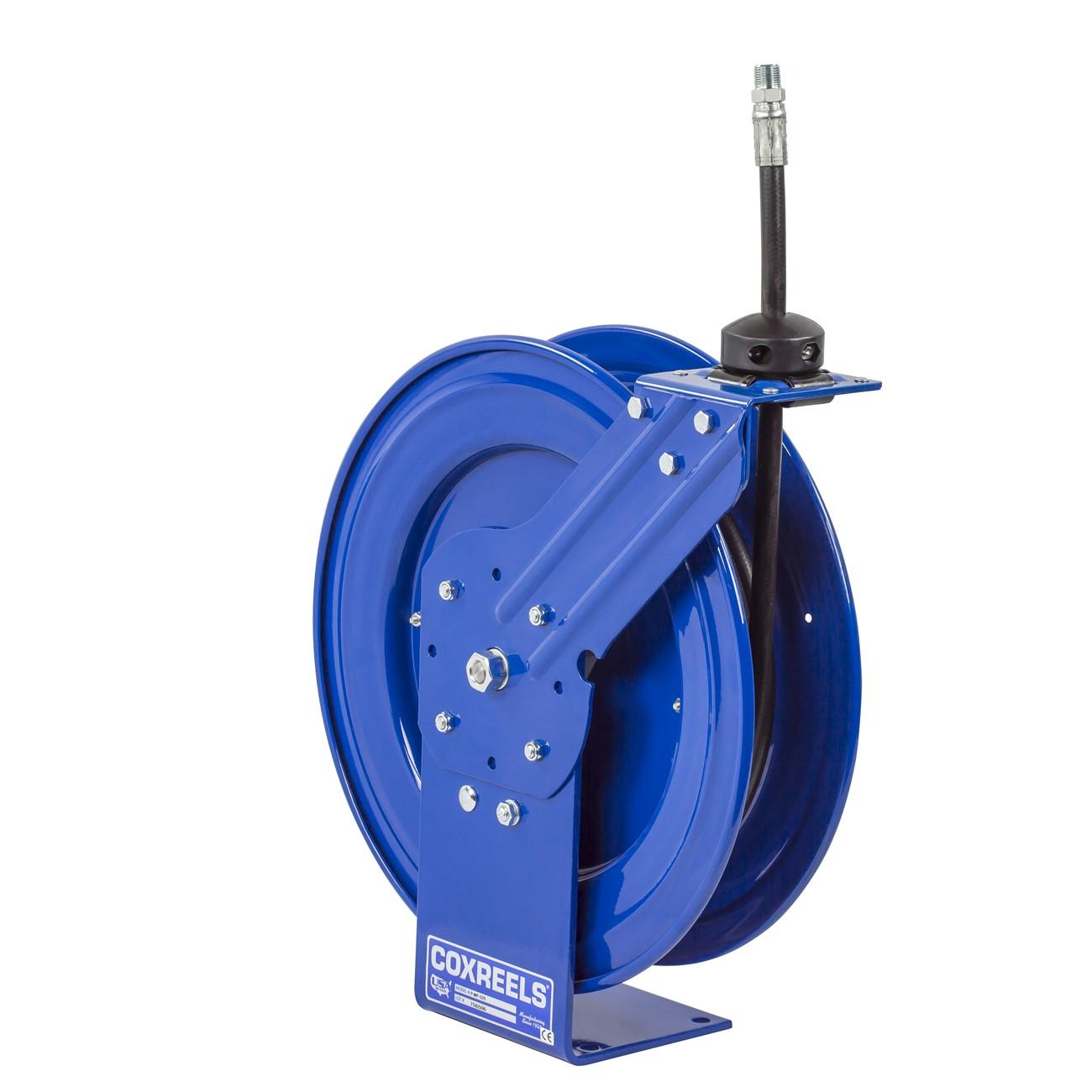

Coxreels P-MP-420 Spring Driven Hose Reel 1/2 in 20 Ft

Product Description

The COXREELS P-MP-420 is a spring-driven hose reel from the P Series line, designed for demanding industrial and trade applications. Built on a solid one-piece steel base, it accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, with a 20 ft hose capacity. The unit weighs 47 pounds and features a machined solid brass 90-degree full-flow NPT swivel, a removable cartridge-style motor, and a CPC powder coat finish that resists chips and rust. Licensed plumbers, mechanics, and industrial service technicians are the typical installers and end users of this reel.

The P-MP-420 suits a wide range of service environments where a compact, wall-, floor-, ceiling-, or vehicle-mounted hose management solution is needed. Its multi-position guide arm accommodates varied mounting configurations, making it practical for service bays, shop floors, and mobile service vehicles. The spring-driven retraction keeps hose organized and off the floor without manual rewinding, reducing trip hazards and wear on the hose assembly.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor removable for field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose swaps without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal support post, no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed to accept hose with a 1/2 inch inner diameter and 13/16 inch outer diameter up to 20 ft in length; confirm swivel thread size and hose end fittings match application requirements before installation.

Installation Notes

Installation is typically performed by a qualified mechanic or plumber familiar with compressed air, fluid, or hydraulic hose systems. Shut off and depressurize the supply line completely before connecting or disconnecting any hose or swivel fitting. Mounting hardware must be appropriate for the mounting surface and rated for the combined weight of the reel and hose under load. Consult applicable OSHA and facility safety guidelines for pressurized hose reel installations.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Capacity: 20 ft
• Drive Type: Spring driven
• Material: Steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 47 pounds
• UPC: 674255718708

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-MP-420
