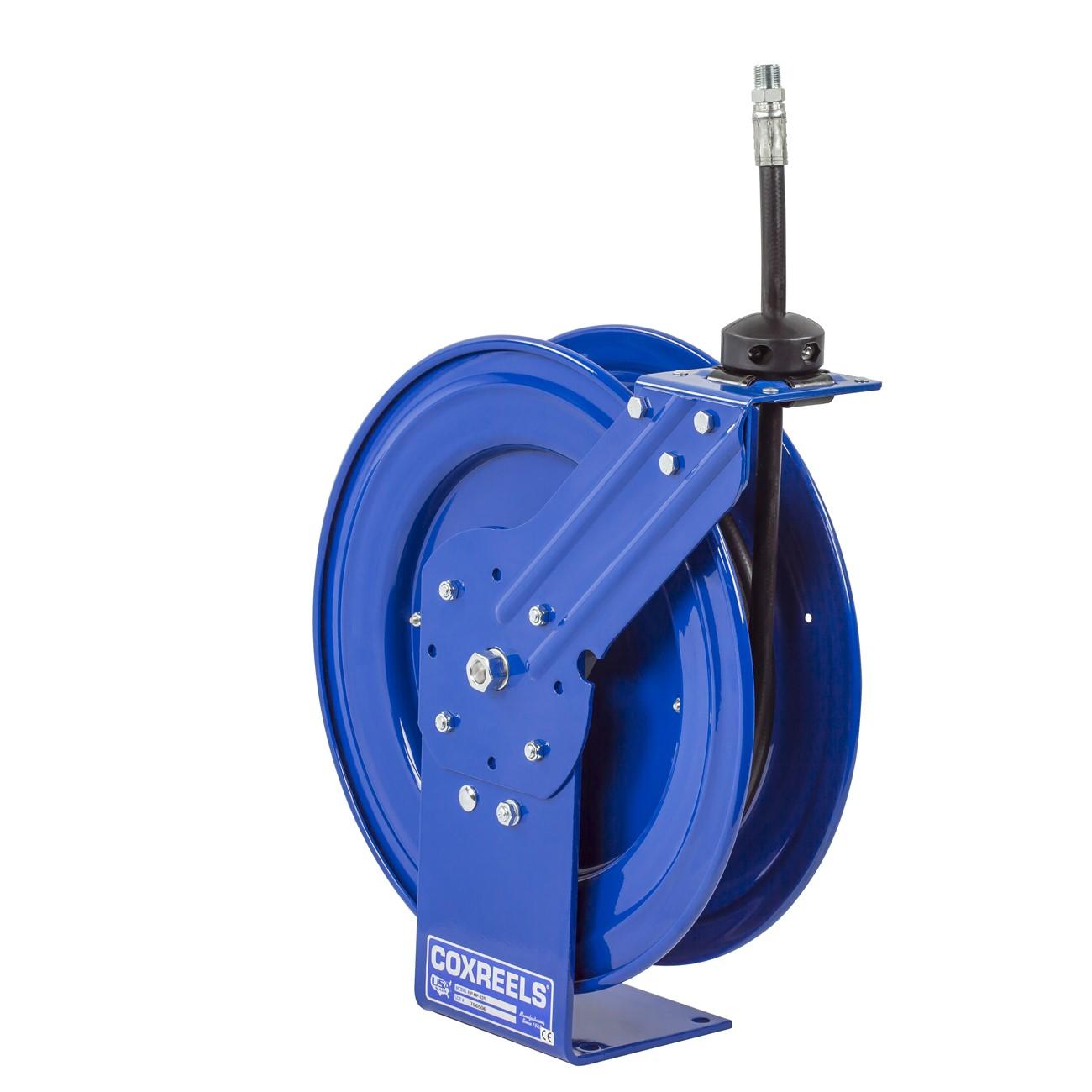

Coxreels P-MP-330 Spring Driven Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS P-MP-330 is a spring-driven hose reel from the P Series line, built for demanding trade environments where reliable hose retraction and compact footprint both matter. The reel accepts 3/8-inch ID hose up to 30 feet and is constructed with heavy-duty steel throughout. A machined solid-brass 90-degree full-flow NPT swivel allows for seal maintenance and hose installation without removing the reel from its mount. CNC robotically spun and ribbed steel discs with rolled edges provide structural strength while protecting the hose and the operator. Licensed HVAC technicians, plumbers, and general mechanical contractors regularly spec this reel for shop, fleet, and field service use.

The P-MP-330 is suited for wall, floor, ceiling, and vehicle mounting configurations, making it appropriate for both fixed shop installations and mobile service setups. The multi-position guide arm adjusts to fit the mounting orientation. Its compact dimensions — 17.5 inches long, 8.5 inches wide, and 19.25 inches tall — allow it to fit into tight utility spaces. A solid one-piece steel base with a single pedestal support post, no welds, provides stable footing under repeated daily use. This reel is a common choice for compressed air, fluid transfer, and similar pressurized hose applications in light commercial and industrial settings.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge-style motor that is removable for maintenance without full disassembly
• Machined solid-brass 90-degree full-flow NPT swivel supports fast seal service without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Solid one-piece steel base with single pedestal support post, no-weld construction
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed to accept 3/8-inch ID hose with an 11/16-inch OD up to 30 feet in length; intended for use in compressed air, fluid transfer, and similar hose reel applications where a spring-driven steel reel is specified.

Installation Notes

Installation is typically performed by a qualified mechanical or service technician familiar with pressurized hose systems. Depressurize and drain any connected hose or fluid supply before mounting or servicing the reel. Mounting hardware should be appropriate for the substrate — wall studs, structural framing, or vehicle mounting surfaces — and sized to support the reel weight of 51 pounds plus a loaded hose. Refer to local mechanical codes and the manufacturer installation guide for mounting torque and swivel connection requirements.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Maximum Hose Length: 30 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 51 pounds
• UPC: 674255718685

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-MP-330
