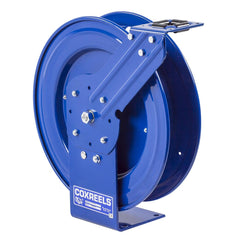

Coxreels P-LPL-430-AL Aluminum Spring Hose Reel 30 Ft

Product Description

The COXREELS P-LPL-430-AL is a spring-driven aluminum hose reel built for professional trades requiring a lightweight, corrosion-resistant alternative to steel reels without sacrificing structural integrity. Part of the Alumi-Pro series, this reel is constructed from high-quality aluminum and shares its core design with the proven COXREELS P Series line. It accepts hose with a 1/2 inch inner diameter and 3/4 inch outer diameter, with a 30-foot hose capacity. The reel weighs 21 pounds and measures 17.5 inches long by 8.5 inches wide by 19.25 inches tall. It is suited for service technicians, fleet maintenance crews, and tradespeople who need a durable, mount-ready reel that resists corrosion in demanding environments.

The P-LPL-430-AL is designed for use in residential and light commercial service applications where a compact, corrosion-resistant hose reel is required. Its multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, making it well suited for service vans, shop bays, and field rigs. The spring-driven retraction mechanism keeps hose managed and off the floor between uses, reducing trip hazards and wear on the hose itself. HVAC technicians, plumbers, and general service professionals are the primary installers of this type of reel.

Key Features

• High-quality aluminum construction provides corrosion resistance with less weight than comparable steel reels
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is removable for maintenance; precision coil spring is factory tuned and matched to application
• Heavy-duty CNC robotically spun and ribbed aluminum discs with rolled edges for hose protection and operator safety
• Solid one-piece aluminum base and support post with no-weld single pedestal design for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting; CPC powder coat finish resists chipping and rust

Compatibility

Designed as an OEM-style spring-driven hose reel for use with 1/2 inch ID hose up to 30 feet in length; compatible mounting configurations include wall, floor, ceiling, and vehicle installations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-handling systems and mechanical mounting hardware. Shut off all fluid supply and depressurize the hose line before connecting or servicing the reel. Secure the mounting base to a structurally adequate surface using appropriately rated fasteners for the selected mount position. Follow all applicable workplace safety and equipment codes when installing on vehicles or overhead structures.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 30 feet
• Drive Type: Spring-driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 21 pounds
• Material: Aluminum
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255730519

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-430-AL
