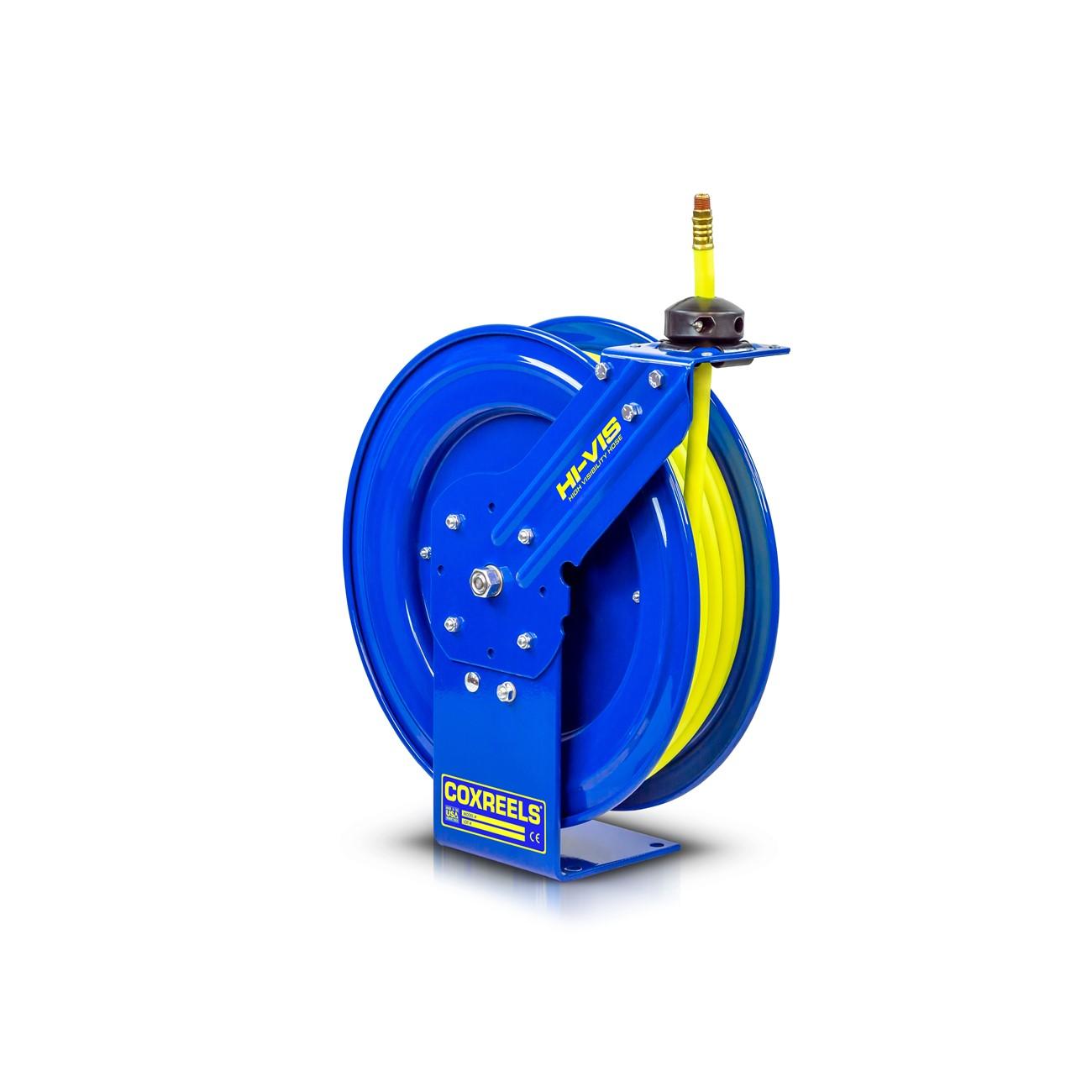

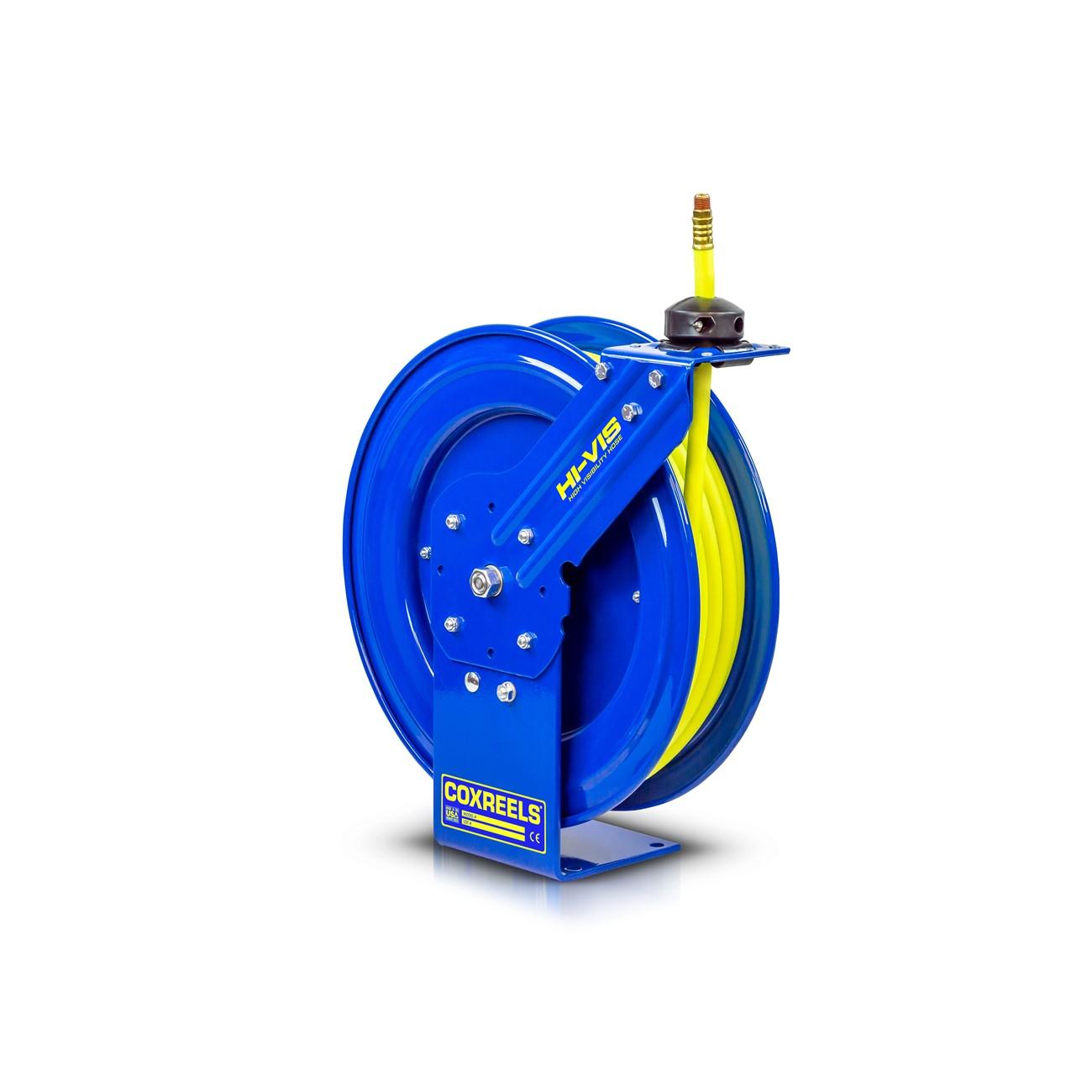

Coxreels P-LP-450-HV Hv Safety Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS P-LP-450-HV is a high visibility safety hose reel designed for industrial and trade service environments where hose management, worker awareness, and controlled retraction are critical. The reel ships with a hybrid bright yellow hose with a white glossy stripe, making the hose easy to spot on busy job sites. Built on a solid one-piece steel base with CNC robotically spun and ribbed discs, this unit is engineered for durability and operator safety. A machined brass 90-degree full-flow NPT swivel allows fast hose installation without removing the reel from its mount. Licensed trades including HVAC technicians, plumbers, and industrial service technicians are the primary installers of this equipment.

The P-LP-450-HV is suited for use in commercial and light industrial settings where a 1/2 inch ID hose reel with a 50-foot capacity is required. The high visibility hose construction reduces trip hazard potential by laying flat and resisting kinking, making it appropriate for shop floors, service vehicles, and overhead ceiling or wall installations. The adjustable guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of service setups.

Key Features

• Hybrid PVC and rubber hose construction offers kink resistance, low-temperature flexibility, and reduced coil memory
• Bright yellow hose with white glossy stripe for high visibility and job site safety awareness
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without dismounting the reel
• Enclosed cartridge-style motor is lubricated and fully removable for field maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength and hose protection
• Chip-resistant, rust-inhibiting CPC powder coat finish with adjustable solid rubber hose stop and precision permanently lubricated bearings

Compatibility

Designed as an OEM-style hose reel for use in industrial, commercial, and service vehicle applications requiring a 1/2 inch ID hose reel with 50 feet of hose capacity.

Installation Notes

Installation is typically performed by licensed mechanics, HVAC technicians, or industrial equipment technicians. Shut off all fluid supply lines and relieve system pressure before mounting or servicing this reel. The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting — verify that the mounting surface can support the loaded weight of the reel before securing. Follow all applicable OSHA and facility safety codes when installing reels in overhead or mobile vehicle configurations.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Length: 50 feet
• Unit Weight: 48 pounds
• Overall Length: 17.5 inches
• Overall Width: 8.5 inches
• Overall Height: 19.25 inches
• Hose Type: Hybrid PVC and rubber blend, high visibility yellow with white stripe
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, single pedestal, no-weld construction
• Finish: CPC powder coat, chip and rust resistant
• Mounting Positions: Wall, floor, ceiling, vehicle
• UPC: 674255752535

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-450-HV
