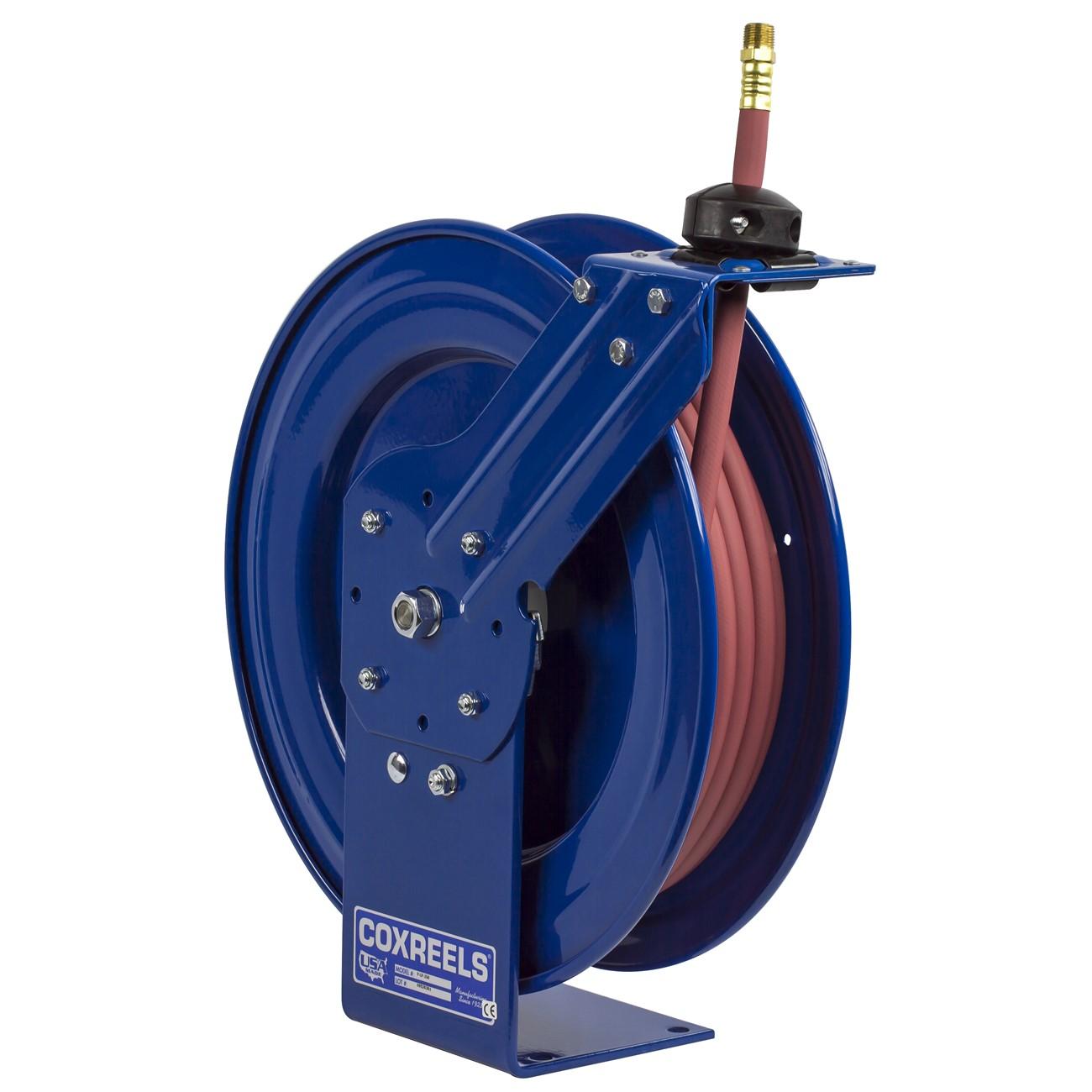

Coxreels P-LP-425 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS P-LP-425 is a spring driven hose reel from the P Series line, built for demanding trade and industrial service environments. Designed for 1/2 inch ID hose with a 3/4 inch OD and a 25 foot hose capacity, this reel delivers consistent, controlled hose retraction through a lubricated, cartridge-style spring motor. The single-pedestal steel base and CNC robotically spun disc construction give it the structural integrity needed for daily use in workshops, service bays, and vehicle-mounted applications. At 44 pounds, it is a heavy-duty unit intended for permanent or semi-permanent installation by mechanical contractors, fleet service technicians, and industrial maintenance crews.

The P-LP-425 fits a wide range of fluid transfer applications including compressed air, water, and light oil delivery in both residential service and light commercial settings. Its multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, making it adaptable across shop layouts and service truck configurations. The compact footprint keeps it practical in space-limited installs without sacrificing hose length or flow capacity.

Key Features

• Spring driven cartridge motor is fully enclosed, lubricated, and removable for easy maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal support post, no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring driven hose reel for use with 1/2 inch ID, 3/4 inch OD hose up to 25 feet in length across standard NPT-connection fluid delivery systems.

Installation Notes

Installation should be performed by a qualified mechanical technician familiar with hose reel mounting requirements. Shut off and bleed all pressure from the supply line before mounting or connecting the reel. Verify that mounting surface load rating is adequate for the reel weight plus hose and fluid load. Consult applicable OSHA and local facility safety codes for pressurized hose system installations.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 44 pounds
• UPC: 674255718395

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-425
