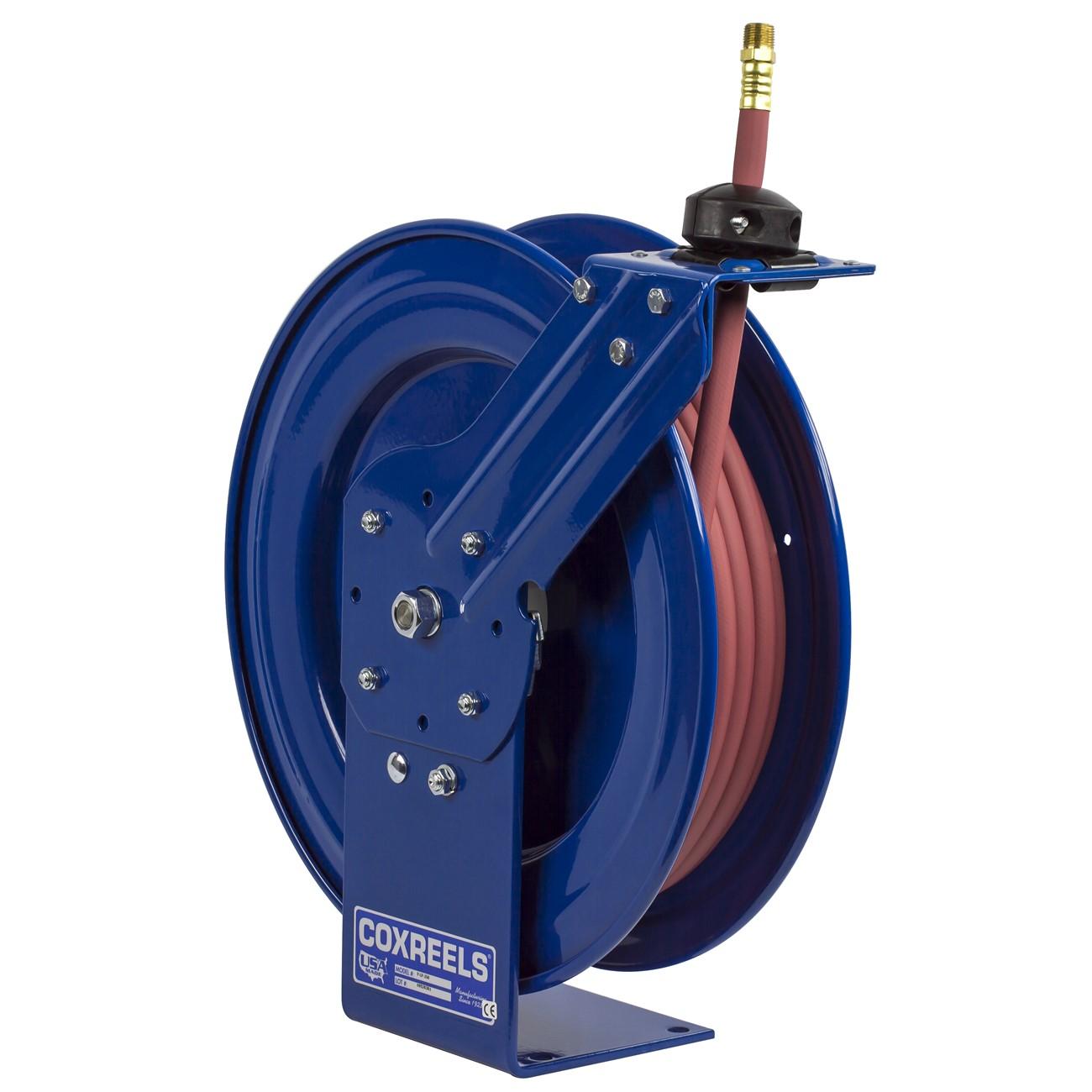

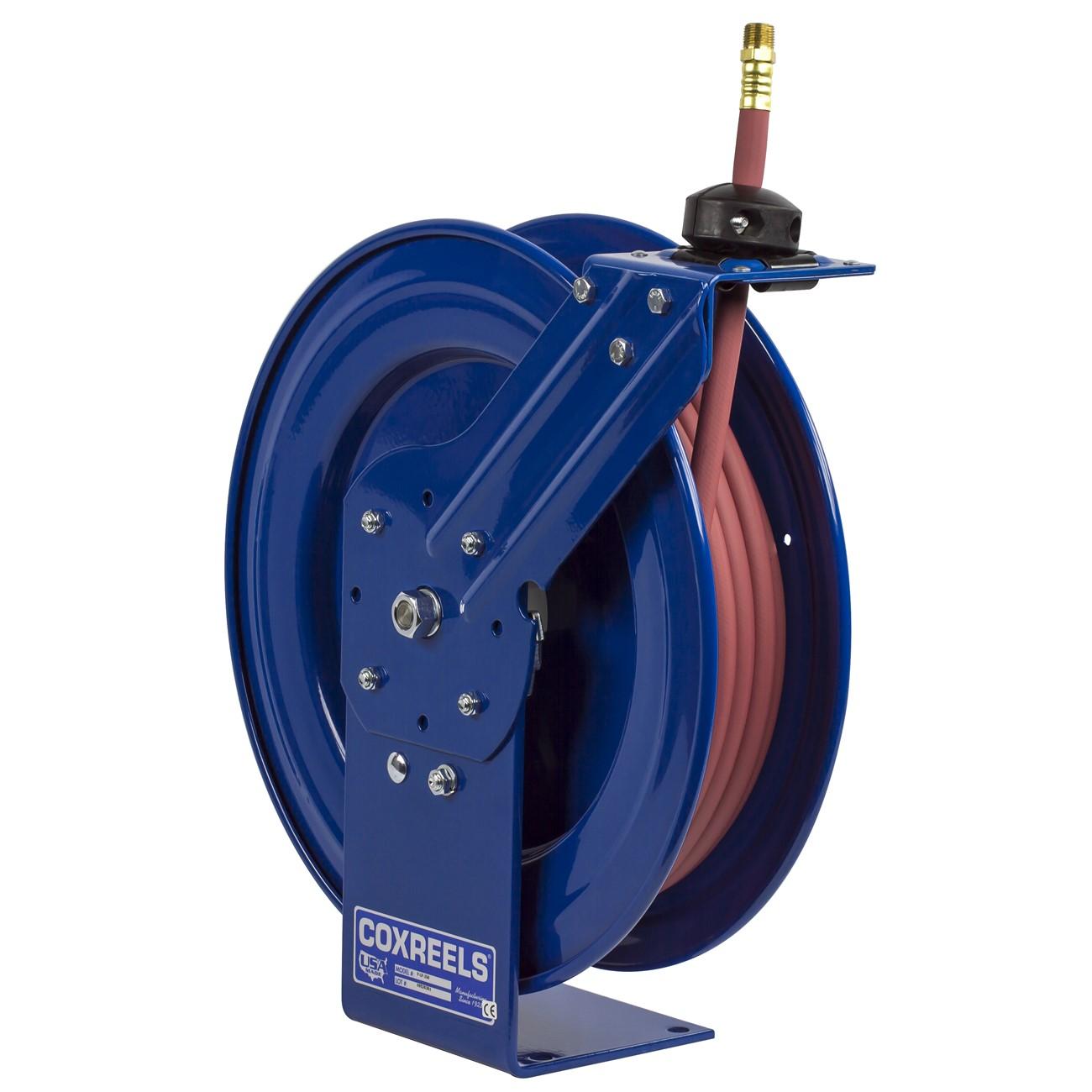

Coxreels P-LP-150 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS P-LP-150 is a spring-driven hose reel designed for reliable, repeated use in demanding trade environments. It accepts hose with a 1/4 inch inner diameter and holds up to 50 feet of hose. The reel uses a lubricated, enclosed cartridge-style motor that is fully removable for field maintenance without specialty tools. Heavy-duty CNC robotically spun and ribbed discs with rolled edges give the drum its structural strength while protecting the hose from edge wear. A solid one-piece steel base with single pedestal design and no-weld construction keeps the unit stable under continuous use. Licensed HVAC technicians, plumbers, and general contractors install this reel in shops, service vehicles, and fixed service bays.

The P-LP-150 is suited for stationary and mobile service applications where a compact footprint matters. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it practical across shop and field installs. The machined solid brass 90-degree full-flow NPT swivel allows hose connection and seal service without removing the reel from its mount, reducing downtime during routine maintenance. The unit ships as a single reel assembly and is appropriate for light-duty fluid or air service lines in residential and light commercial settings.

Key Features

• Spring-driven retraction for automatic hose retrieval without manual winding
• Lubricated enclosed cartridge motor is removable for maintenance without dismounting the reel
• CNC robotically spun ribbed discs with rolled edges for hose protection and structural durability
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service in place
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mount configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style spring-driven hose reel for 1/4 inch ID hose applications up to 50 feet in length across residential, commercial, and mobile service installations.

Installation Notes

Installation is typically performed by a qualified technician or mechanic familiar with pneumatic or fluid service line setups. Shut off and depressurize any connected air or fluid supply before mounting or servicing the reel. Secure the base mounting hardware to a surface rated for the combined weight of the reel and fully loaded hose. Verify NPT swivel thread compatibility with your supply line fittings before final connection.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 1/2 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 40 pounds
• UPC: 674255718173

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-150
