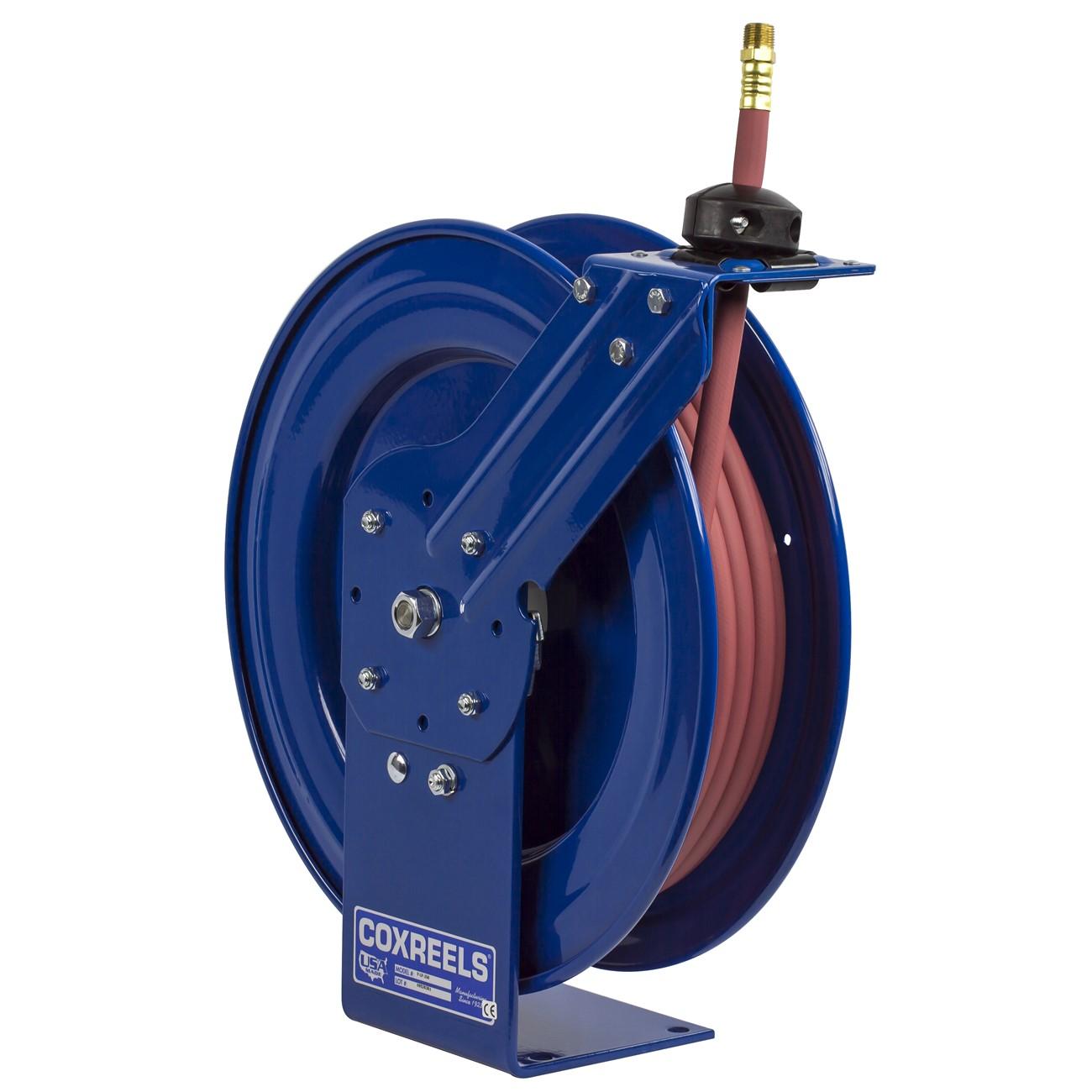

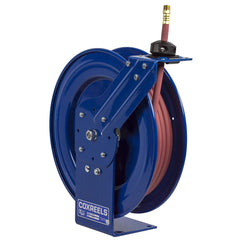

Coxreels P-LP-135 Spring Driven Hose Reel 35 Ft

Product Description

The COXREELS P-LP-135 is a spring driven hose reel from the P Series line, designed for dependable retraction and long service life in demanding trade environments. Built around a compact, heavy-duty steel frame, it accepts hose with a 1/4 inch inner diameter and handles up to 35 feet of hose length. The reel features a machined solid brass 90-degree full-flow NPT swivel for leak-resistant connections and easy hose installation without removing the unit from its mount. A lubricated, enclosed cartridge-style motor allows safe, fast maintenance access. CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect both the hose and the operator. Licensed trades and facility maintenance professionals rely on this reel for repetitive-use fluid delivery applications.

The P-LP-135 suits residential, commercial, and light industrial service scenarios where a compact, wall-, floor-, ceiling-, or vehicle-mounted hose reel is needed. Its multi-position guide arm adapts to a wide range of mounting orientations, making it useful across service vehicles, shop bays, mechanical rooms, and outdoor equipment stations. The adjustable solid rubber hose stop and permanently lubricated precision bearings reduce downtime between service intervals. This reel is well suited for pneumatic tool lines, low-pressure fluid transfer, and similar applications managed by HVAC technicians, plumbers, or general mechanical service crews.

Key Features

• Spring driven retraction with enclosed cartridge-style motor for safe, tool-free maintenance access
• Machined solid brass 90-degree full-flow NPT swivel — seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting
• Single-pedestal, no-weld solid one-piece steel base with support post for maximum stability
• CPC powder coat finish resists chips and rust for extended outdoor and shop-environment service life

Compatibility

Designed as an OEM-style spring driven hose reel replacement or new installation for 1/4 inch ID hose applications requiring up to 35 feet of retractable hose in commercial or light industrial service settings.

Installation Notes

Installation is typically performed by a licensed mechanical contractor or qualified service technician. Shut off and bleed all pressure from the supply line before mounting or connecting the reel. Secure the base to a structurally sound surface using fasteners rated for the mounting substrate and in accordance with applicable local mechanical codes. Do not exceed the rated hose size or working pressure specifications for the hose and fittings used with this reel.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 1/2 inch
• Maximum Hose Length: 35 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Construction: Single-pedestal, no-weld solid one-piece steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 28 pounds
• UPC: 674255718135

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-135
