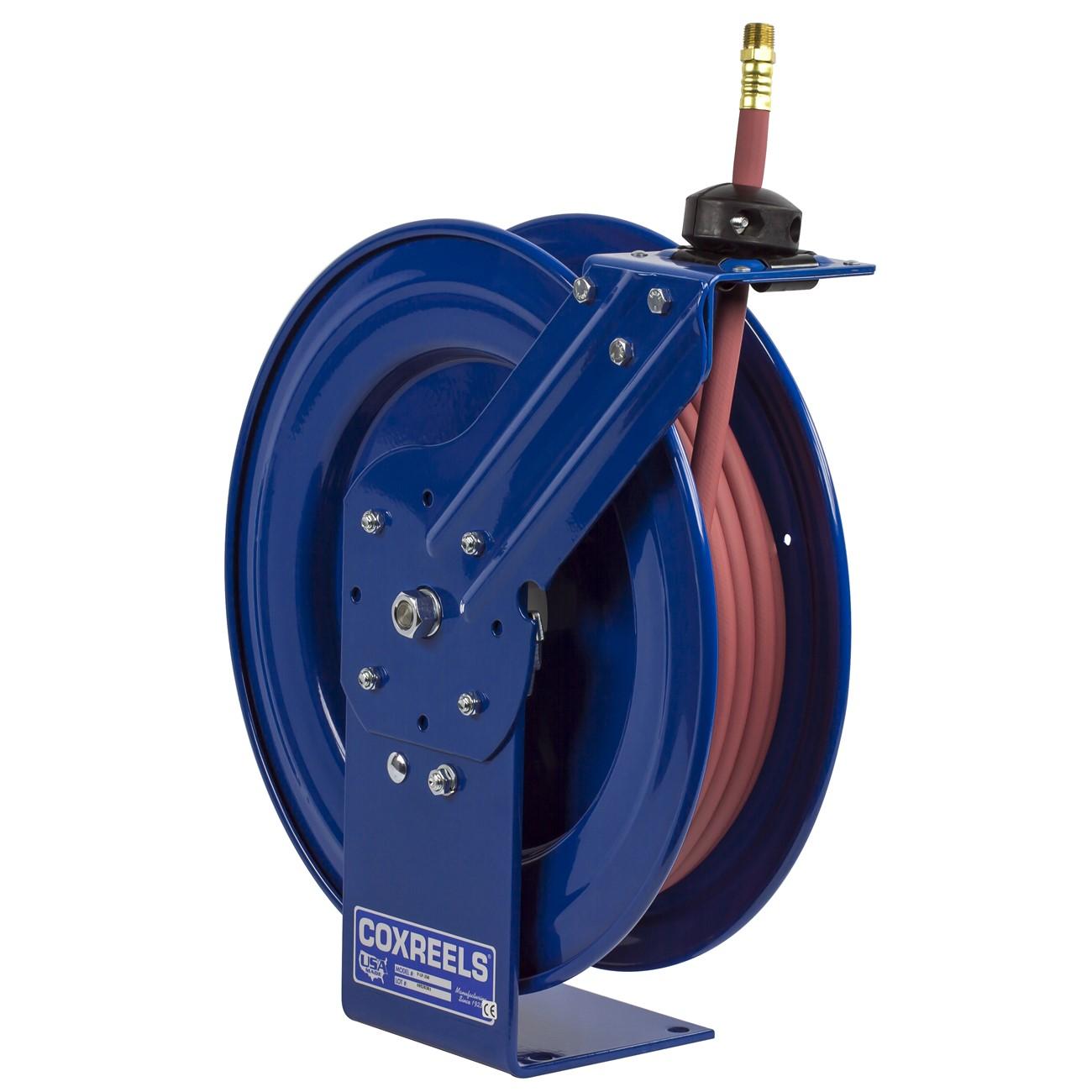

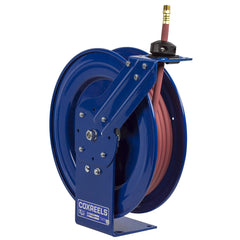

Coxreels P-LP-115 Spring Driven Hose Reel 15 Ft

Product Description

The COXREELS P-LP-115 is a spring-driven hose reel from the P Series line, designed for reliable, hands-free hose retraction in demanding trade environments. Built around a compact, heavy-duty steel frame, it accommodates a 1/4 inch ID hose up to 15 feet in length. The unit features a CNC robotically spun and ribbed disc construction with rolled edges for structural strength and hose protection. A cartridge-style spring motor is fully enclosed and lubricated, allowing removal for maintenance without disrupting the reel mount. Licensed HVAC technicians, plumbers, and service contractors use this reel in shops, service vehicles, and fixed service bays where consistent hose management and fast retraction matter.

The P-LP-115 suits residential and light commercial service applications where a compact footprint is required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to service van installations, shop bays, and equipment rooms. The solid one-piece steel base and single pedestal design provide stable, no-weld support across mounting surfaces. The reel is appropriate for use with air, water, or compatible fluid lines within the rated hose size.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without dismounting the reel
• CNC robotically spun ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal maintenance and fast hose installation
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• Solid one-piece steel base with single pedestal design, no weld construction
• CPC powder coat finish resists chips and rust for long service life; includes adjustable solid rubber hose stop

Compatibility

Designed to accept 1/4 inch ID hose up to 15 feet in length; compatible with standard NPT hose fittings within the rated ID and hose length specifications.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, or mechanical contractors depending on the fluid service application. Shut off the supply line and relieve all hose pressure before mounting or servicing the reel. Secure the base to a structurally sound surface rated for the combined weight of the reel and hose assembly. Verify NPT thread compatibility and apply appropriate thread sealant per the applicable plumbing or mechanical code before connecting the supply line.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Capacity: 15 feet
• Drive Type: Spring driven
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 27 pounds
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255718050

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-115
