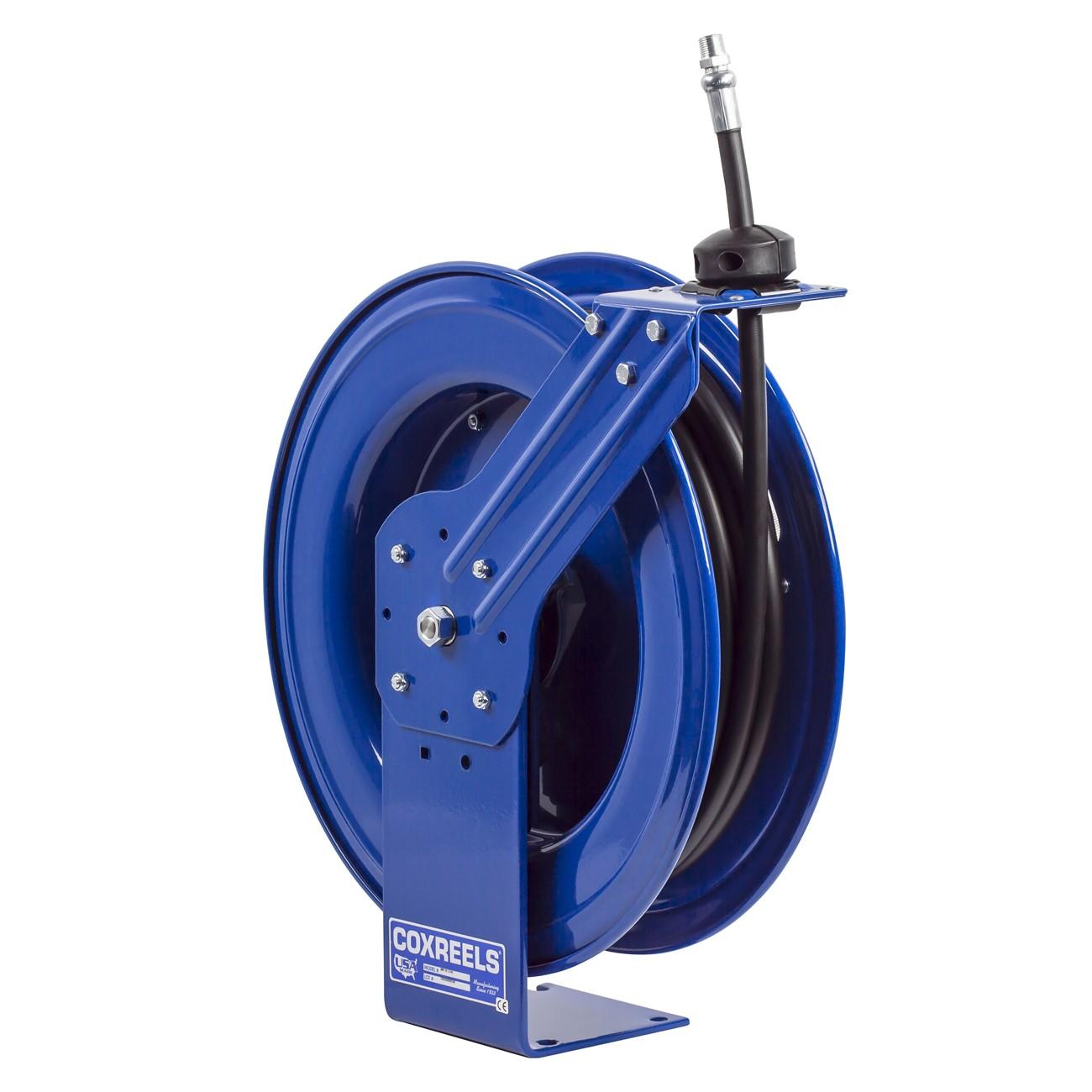

Coxreels MP-N-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS MP-N-350 is a spring-driven hose reel from the SH Series, designed for dependable performance in demanding trade applications. Built on a larger chassis and frame than standard reels, it accommodates longer hose lengths and larger hose diameters. The reel features a machined brass 90-degree full-flow NPT swivel, a cartridge-style spring motor, and CNC robotically spun ribbed steel discs with rolled edges. A CPC powder coat finish resists chipping and rust. Licensed trades and service technicians working with compressed air, water, or fluid lines will find this reel suited to fixed and vehicle-mount installations alike.

The MP-N-350 is intended for use with 3/8 inch inner diameter hose up to 50 feet in length. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to shop, fleet, and field service environments. The single-pedestal steel base provides a stable, no-weld foundation. The Super Hub dual axle support system reduces vibration and increases structural integrity during repeated hose extension and retraction cycles.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge motor for easy removal and maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Dual axle Super Hub support system reduces vibration and strengthens reel stability during operation
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven hose reel for trade use with 3/8 inch ID hose up to 50 feet in length in compressed air, water, and fluid service applications.

Installation Notes

Installation should be performed by a qualified mechanic or service technician familiar with hose reel mounting requirements. Shut off and bleed all line pressure before connecting or disconnecting hose or fittings. Secure the mounting surface to support the rated load of the reel and hose assembly. Verify that inlet fittings and swivel connections are properly torqued and leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 11/16 inches
• Hose Capacity: 50 feet
• Frame Material: Steel
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Design: Single pedestal, no-weld one-piece steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 65 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MP-N-350
