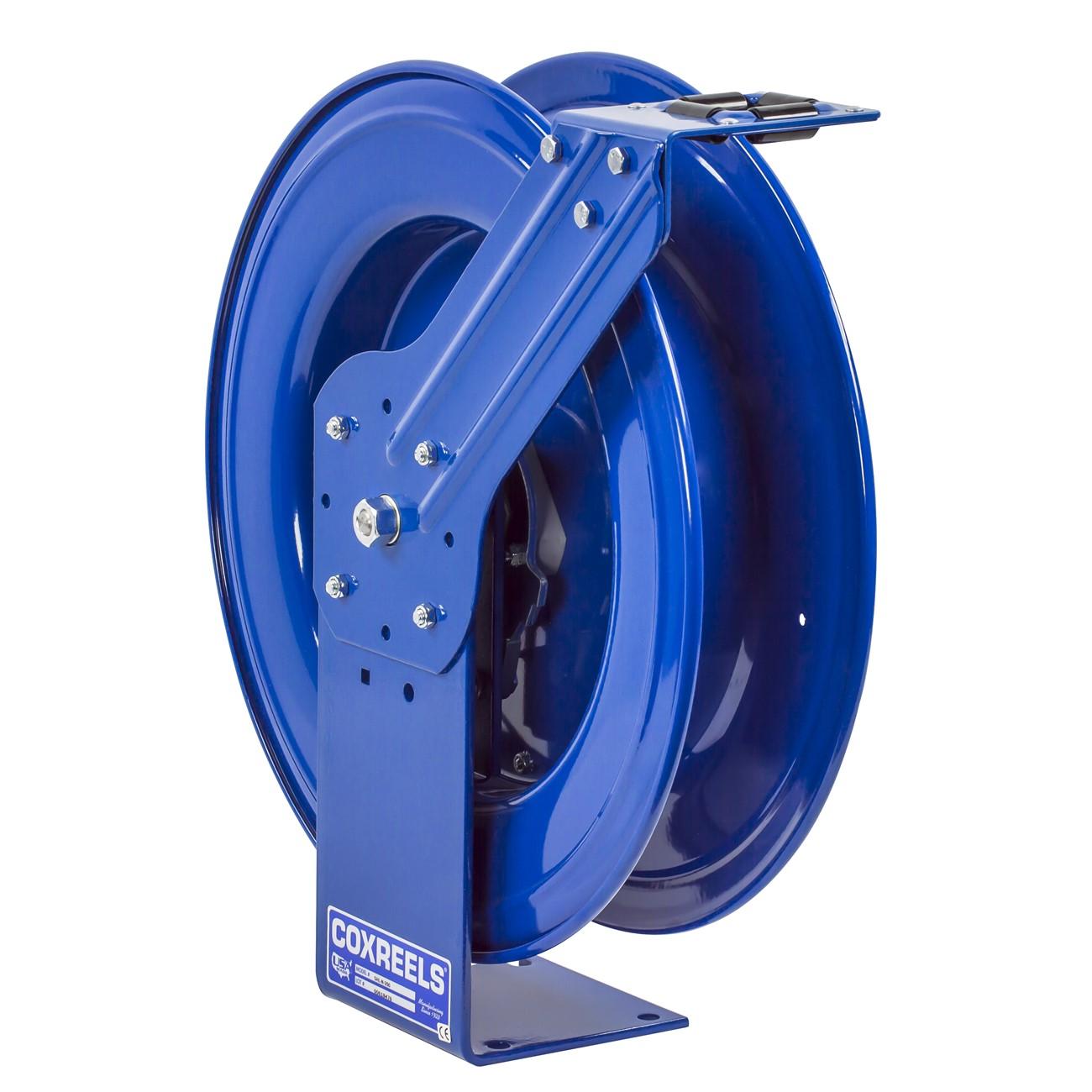

Coxreels HPL-N-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS HPL-N-350 is a spring-driven hose reel from the SH Series, designed for demanding trade and industrial applications where reliable hose retraction and structural durability are required. Built on a larger chassis and frame than standard models, the HPL-N-350 accommodates longer hose lengths and larger hose diameters. The reel features a 3/8-inch inner diameter hose path and accepts up to 50 feet of hose. A machined zinc-plated steel 90-degree full-flow NPT swivel provides straightforward seal maintenance without requiring reel removal from the mounting surface. The enclosed cartridge-style motor is lubricated and easily removable for routine service. Finished in a chip-resistant CPC powder coat for long-term corrosion resistance.

The HPL-N-350 is suited for use in commercial and industrial environments including fleet maintenance shops, service bays, manufacturing facilities, and any fixed or vehicle-mounted application requiring controlled hose deployment and automatic retraction. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of job site setups. The single-pedestal, no-weld steel base provides a stable foundation without excess weight.

Key Features

• Spring-driven automatic retraction for consistent hose management in high-use environments
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service without removing the reel from its mount
• Enclosed cartridge-style motor is pre-lubricated and removable for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single-pedestal, no-weld design and exclusive dual axle support system for reduced vibration and increased stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed for use with 3/8-inch inner diameter hose up to 50 feet in length in fixed or vehicle-mounted installations. Consult COXREELS documentation to confirm hose type and fitting compatibility before installation.

Installation Notes

Installation is typically performed by a qualified mechanical or fleet service technician. Depressurize and disconnect the hose supply line completely before mounting or servicing the reel. The multi-position guide arm should be secured to a structurally sound surface rated for the combined weight of the reel and hose under load. Follow all applicable facility safety and OSHA guidelines when mounting to overhead or vehicle surfaces.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Swivel Type: 90-degree full-flow NPT machined zinc-plated steel
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 53 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HPL-N-350
