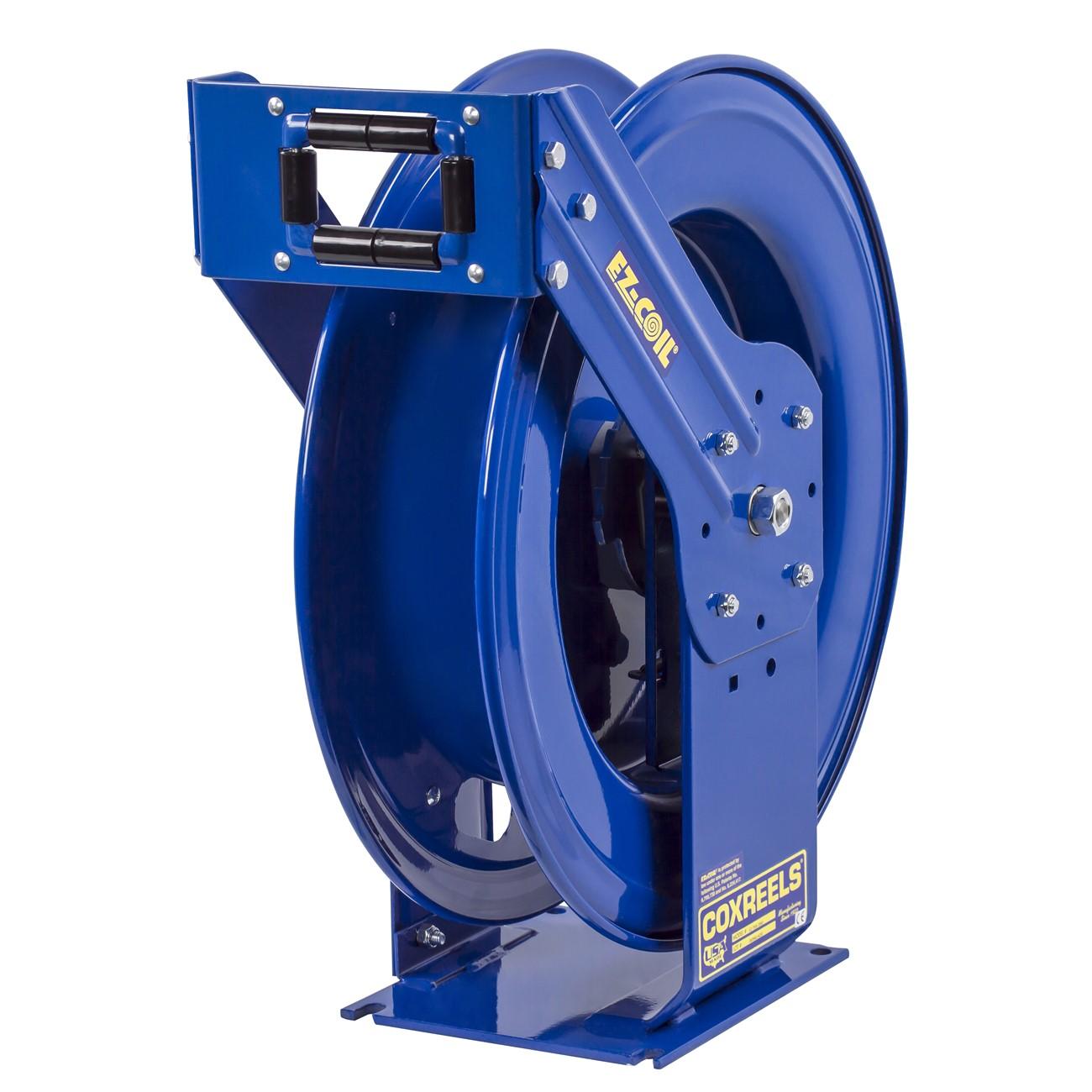

Coxreels EZ-TSHL-475 Spring Driven Hose Reel 75 Ft

Product Description

The COXREELS EZ-TSHL-475 is a heavy-duty, spring-driven hose reel engineered for truck-mount and off-road service applications. It accepts hose with a 1/2 inch inner diameter and 3/4 inch outer diameter at a working length of 75 feet. Built on an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system, this reel is designed to absorb vibration and maintain structural integrity under the most demanding field conditions. The EZ-Coil spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk and extending hose life. Licensed HVAC techs, plumbers, and fleet service professionals working from service vehicles will find this reel suited to daily, high-cycle use in rugged environments.

The EZ-TSHL-475 is built for mobile service operations where reliability under abuse is non-negotiable. It is ideal for truck-mounted fluid-dispensing, compressed air, or wash-down applications in off-road and construction environments. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of service van and truck bed layouts. The reel ships as a single unit and is sold individually.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than conventional reels for operator safety
• Super Hub triple axle support reduces vibration and strengthens structural integrity for off-road use
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve durability
• 1/4 inch solid one-piece steel base with dual pedestal design and no-weld support post for maximum stability
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings require minimal maintenance

Compatibility

Designed as an OEM-style truck-mount replacement or new-installation spring-driven hose reel for mobile service rigs requiring 1/2 inch ID hose at 75 feet of working length.

Installation Notes

Installation is typically performed by a qualified service technician familiar with mobile fluid or pneumatic systems. Depressurize and drain all connected lines before mounting or servicing the reel. Secure the steel base to a structurally sound mounting surface rated for the combined weight of the reel and hose at 73 pounds. Consult applicable vehicle or facility codes when routing hose and making swivel connections.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 75 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Swivel Material: Solid brass
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 73 pounds
• UPC: 674255724051

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSHL-475
