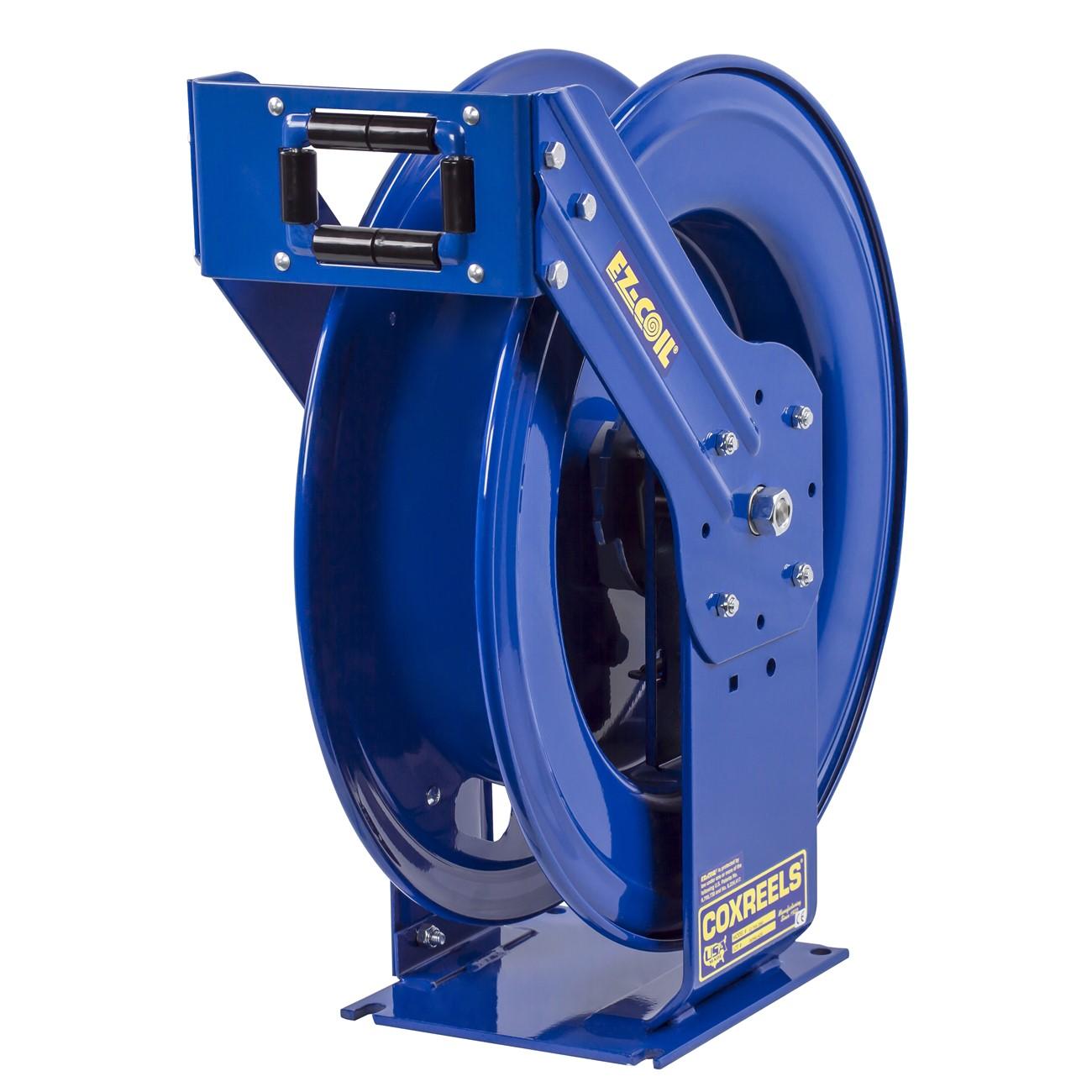

Coxreels EZ-TSHL-350 Spring Driven Hose Reel 35 Ft

Product Description

The COXREELS EZ-TSHL-350 is a spring-driven hose reel built for truck-mount and off-road service applications. Part of the COXREELS T Series, it features an extra-large chassis with dual pedestal-style arms and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under heavy field use. The reel accepts 3/8 inch ID hose with a 5/8 inch OD and handles a hose length of 35 feet. Weighing 55 pounds, it is constructed for demanding environments where conventional reels fail. Licensed HVAC technicians, plumbers, and fleet service professionals working from service vehicles are the primary installers of this unit.

The EZ-TSHL-350 is designed for truck-mounted service rigs and off-road work vehicles where consistent hose retraction and structural durability are required. The EZ-COIL motor retracts hose up to 80 percent slower than conventional spring-driven reels, reducing snap-back risk during everyday operation. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable across a range of service truck and shop setups. It is well suited for fluid transfer, compressed air, and similar trade applications where a reliable retractable hose reel is essential.

Key Features

• EZ-COIL spring motor retracts hose up to 80 percent slower than standard reels, reducing snap-back hazard
• Super Hub triple axle support reduces vibration and improves structural integrity for off-road use
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with dual pedestal design and no-weld support post for maximum stability
• CPC powder coat finish resists chips and rust for long-term durability in outdoor and vehicle environments

Compatibility

Designed as a truck-mount, spring-driven hose reel replacement or new installation for service vehicles requiring 3/8 inch ID hose management up to 35 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid or air systems. Depressurize and disconnect all hose lines before mounting or servicing the reel. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting surfaces — confirm fastener ratings are appropriate for the mounting substrate and load. Follow applicable shop safety and vehicle upfit guidelines when securing the reel to a service truck chassis.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length: 35 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 55 pounds
• Base Material: Steel
• Swivel Material: Solid Brass
• Drive Type: Spring Driven
• Finish: CPC Powder Coat
• UPC: 674255734623

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSHL-350
