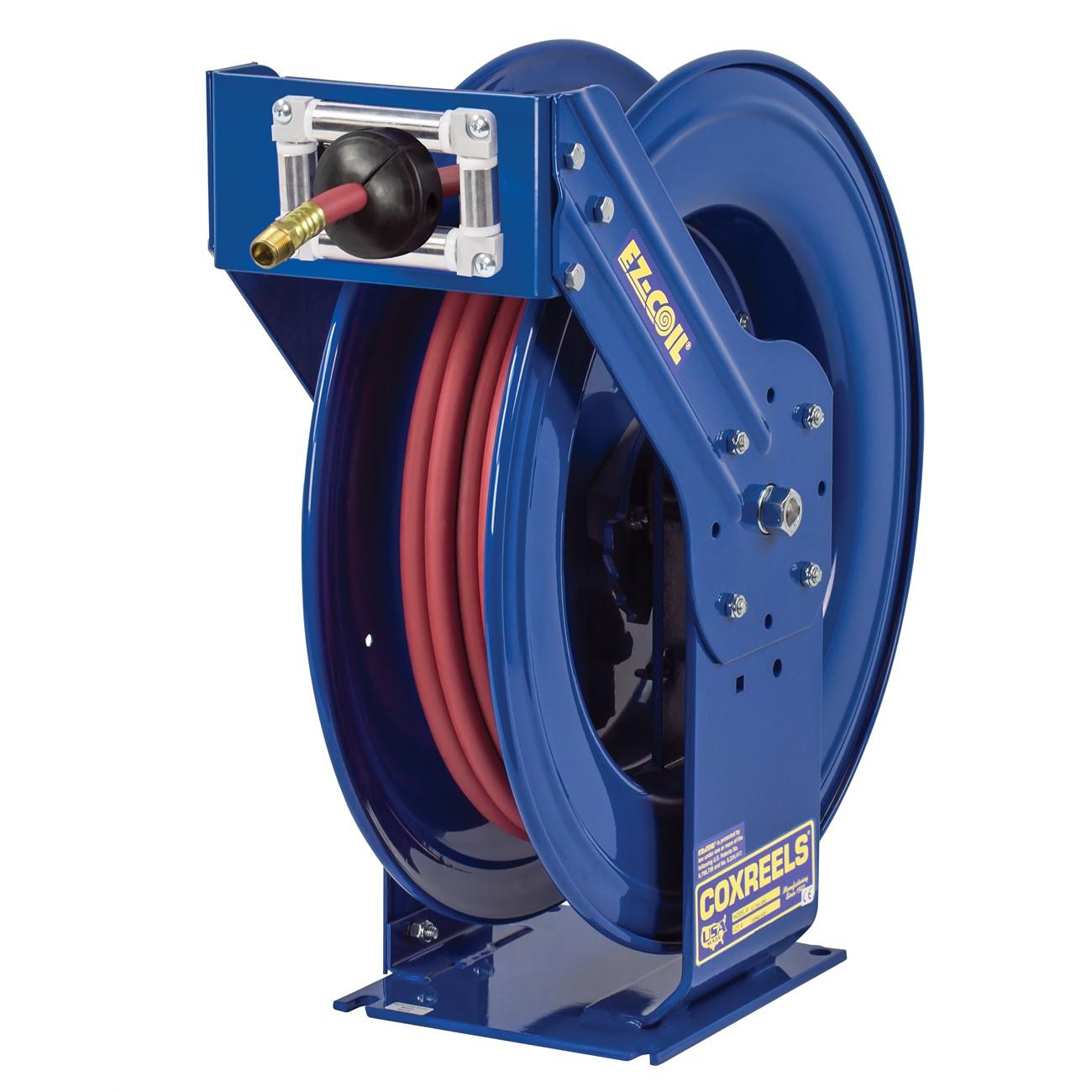

Coxreels EZ-TSH-535 Spring Driven Hose Reel 3/4 Inch

Product Description

The COXREELS EZ-TSH-535 is a heavy-duty, spring-driven hose reel from the T Series line, engineered specifically for truck-mount and off-road service applications. It accommodates hose with a 3/4-inch inner diameter and 1-1/16-inch outer diameter up to 35 feet in length. The reel is built around an extra-large chassis with dual pedestal-style arms and COXREELS Super Hub triple axle support, which reduces vibration and reinforces structural integrity under the punishment of rugged field environments. Licensed HVAC techs, plumbers, and fleet service technicians who run vehicle-mounted reel systems rely on this design where conventional reels fail.

The EZ-TSH-535 is suited for mobile service vehicles and fleet trucks operating in demanding off-road or high-vibration environments. It is appropriate for distributing water, air, or compatible fluid lines on work trucks in residential and commercial service operations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a range of vehicle types and service body layouts.

Key Features

• EZ-COIL spring motor is enclosed in a lubricated cartridge housing that is fully removable for maintenance without pulling the reel from its mount — retracts up to 80 percent slower than conventional spring-driven reels for operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Solid one-piece steel base with dual pedestal design and support post — no weld construction for maximum stability
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle surfaces
• CPC powder coat finish resists chipping and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style truck-mount replacement or new-install spring-driven hose reel for mobile service vehicles requiring a 3/4-inch ID hose connection up to 35 feet.

Installation Notes

Installation is typically performed by a qualified service technician or fleet upfitter familiar with vehicle-mounted reel systems. Relieve all line pressure and disconnect the hose from the fluid source before mounting or servicing the reel. Secure the steel base to the vehicle service body using appropriate fasteners rated for the mounting surface. Verify that all swivel connections are properly sealed and torqued to the hose fitting manufacturer's specifications before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inches
• Hose Length Capacity: 35 feet
• Drive Type: Spring driven
• Mount Type: Truck mount, multi-position
• Base Material: Steel, one-piece no-weld construction
• Swivel Material: Solid brass
• Finish: CPC powder coat, chip and rust resistant
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 77 pounds
• UPC: 674255728967

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-535
