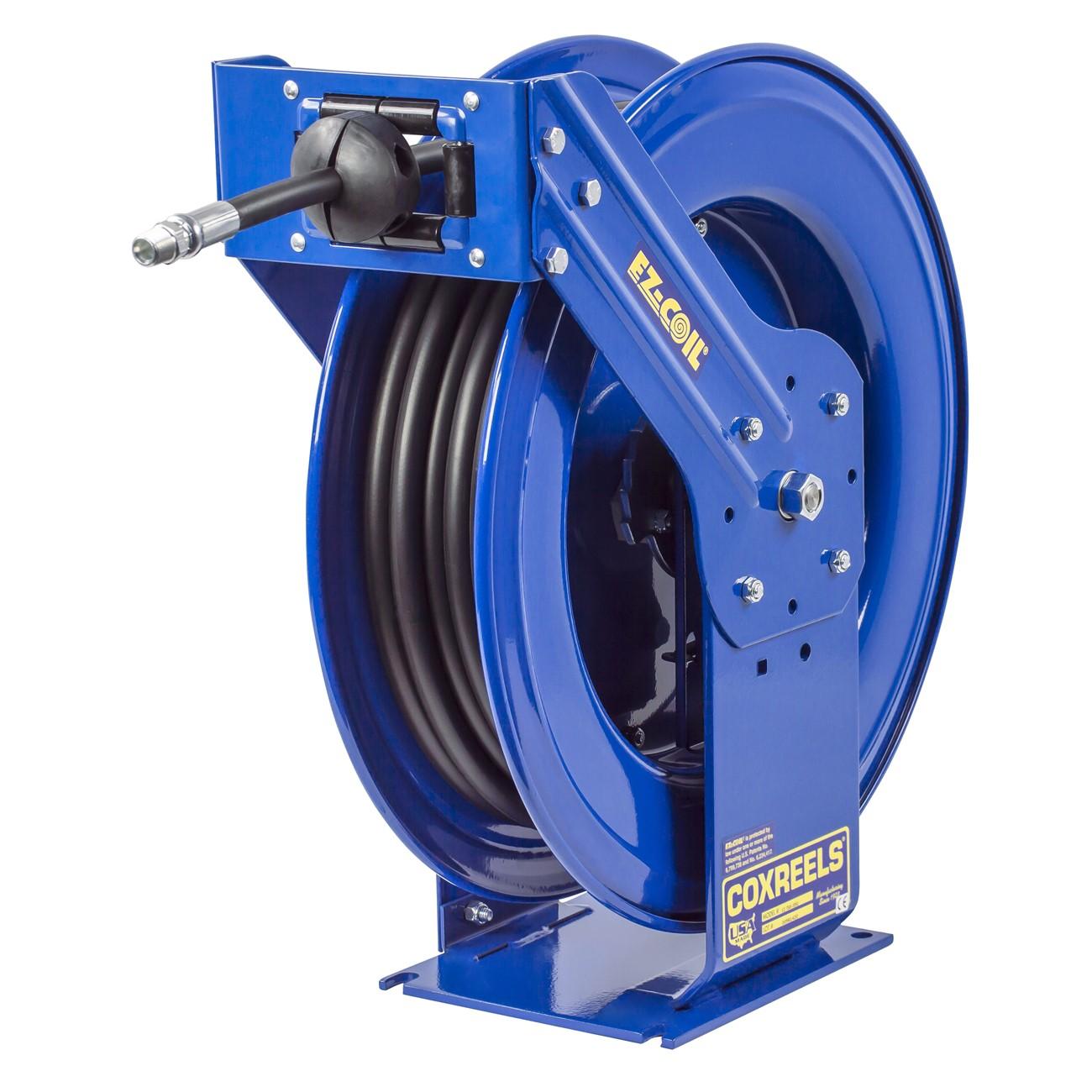

Coxreels EZ-TMP-350 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TMP-350 is a spring-driven, truck-mount hose reel built for demanding off-road and field service applications. Part of the COXREELS T Series, it features an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system that reduces vibration and reinforces structural integrity under heavy use. The reel accepts 3/8 inch ID hose up to 50 feet and is suited for technicians and service crews who need reliable hose management in abusive operating environments. A CPC powder coat finish resists chipping and rust for long-term durability in outdoor and vehicle-mounted service.

The EZ-TMP-350 is designed for truck-mounted service reel applications in industries such as HVAC, plumbing, lubrication, and general fluid transfer. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of service vehicle setups. The EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional spring-driven reels, reducing snap-back hazards for field technicians working daily with the reel.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than standard spring reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and structural strength
• Dual pedestal design with solid one-piece steel base and support post — no welds — for maximum stability
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed for truck-mount and vehicle-based hose reel applications accepting 3/8 inch ID hose up to 50 feet in length. Verify swivel inlet thread size and hose OD of 11/16 inch against existing plumbing before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid delivery systems. Relieve all system pressure and disconnect the power source or vehicle ignition before mounting or servicing the reel. Secure all fasteners to the mounting surface per the vehicle or equipment manufacturer guidelines. Confirm NPT swivel connections are properly sealed with appropriate thread sealant before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 74 pounds
• Base Material: Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• Drive Type: Spring Driven
• Mount Type: Truck Mount
• UPC: 674255730441

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMP-350
