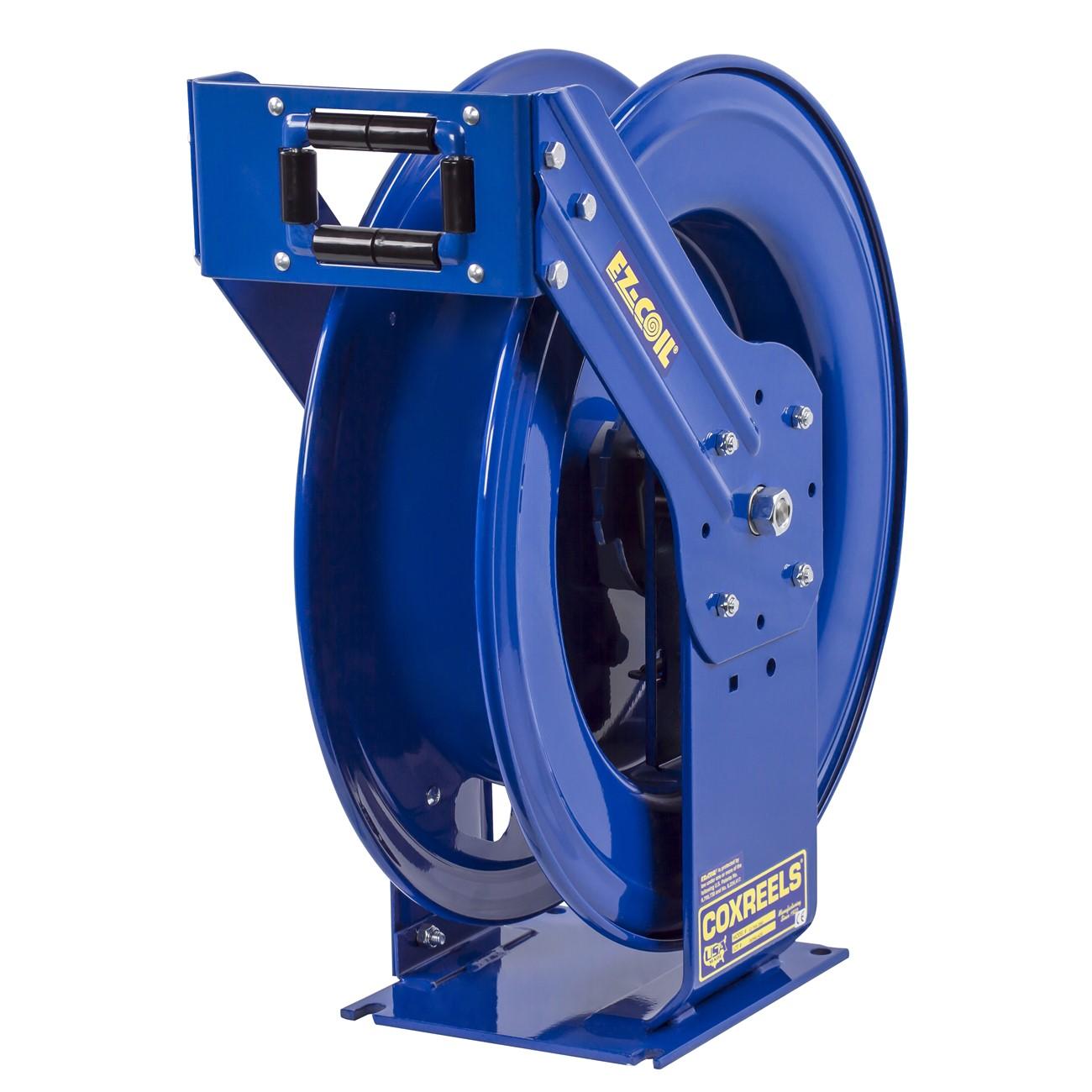

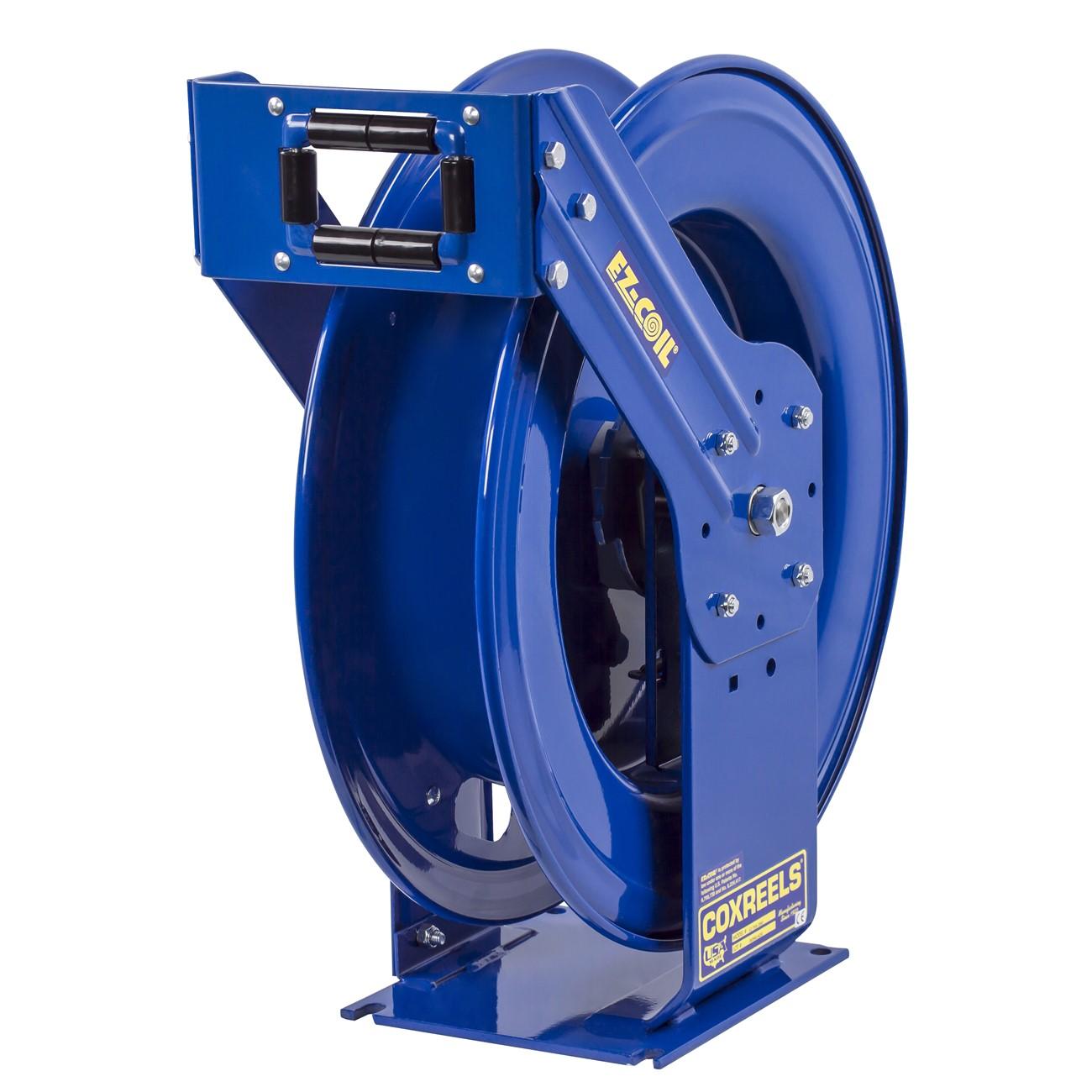

Coxreels EZ-THPL-1100 Spring Driven Hose Reel 100 Ft

Product Description

The COXREELS EZ-THPL-1100 is a spring-driven hose reel from the T Series line, built for truck-mount and off-road service applications. It accepts 1/4 inch ID hose up to 100 feet in length. The reel features an extra-large chassis with dual pedestal-style arms and the Coxreels Super Hub, which provides triple axle support to reduce vibration and reinforce structural integrity. That combination makes this reel suited for demanding field environments where conventional reels fail. Licensed HVAC technicians, plumbers, and fleet service professionals who run reels off work vehicles will recognize the design as purpose-built for abuse-rated use cases.

The EZ-THPL-1100 is designed for mobile service truck installations where off-road vibration, repetitive hose deployment, and rugged daily use are standard conditions. Its multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility during upfit. The EZ-Coil spring motor retracts hose up to 80 percent slower than conventional reels, which reduces snap-back risk during retraction. This reel is a common choice for mobile lubrication, compressed air, or fluid transfer service rigs.

Key Features

• EZ-Coil spring motor retracts hose up to 80 percent slower than standard reels, reducing snap-back hazard
• Lubricated and enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• Super Hub triple axle support reduces vibration and strengthens reel integrity under off-road loads
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with dual pedestal design, no-weld construction, and permanently lubricated precision bearings
• CPC powder coat finish provides chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement or direct-fit reel for truck-mount and stationary service installations requiring a 1/4 inch ID spring-driven hose reel rated for 100 feet of hose.

Installation Notes

Installation is typically performed by fleet upfit technicians or qualified service professionals. Depressurize and disconnect all fluid or air supply lines before mounting or servicing the reel. Verify that the mounting surface and fasteners are rated for the reel weight of 82 pounds plus the loaded hose. Consult applicable OSHA and vehicle safety standards when mounting reels to service truck bodies.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven
• Mount Type: Truck mount / multi-position
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• UPC: 674255730472

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THPL-1100
