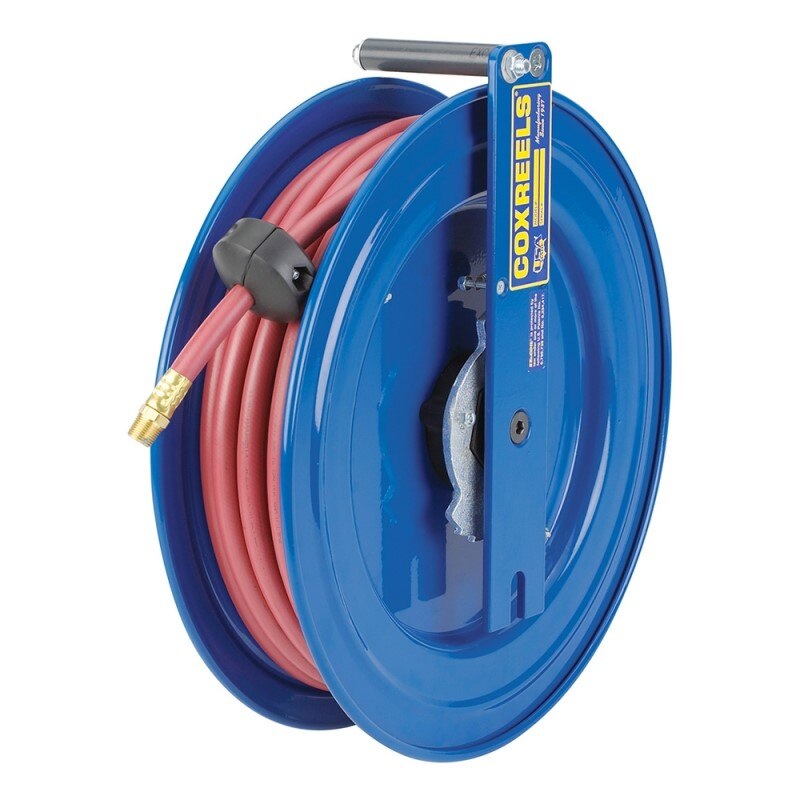

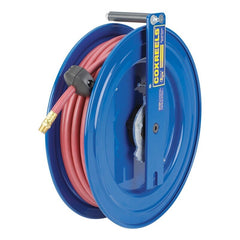

Coxreels EZ-SR17L-L430 Spring Driven Hose Reel Side Mount

Product Description

The COXREELS EZ-SR17L-L430 is a spring-driven retractable hose reel from the EZ-S Series, designed for side mount and cabinet mount installations in demanding trade environments. The EZ-Coil spring motor retracts hose up to 80% slower than conventional reels, reducing snap-back hazards and extending hose life. The reel features a machined solid brass 90-degree full-flow NPT swivel that allows 360-degree hose direction for operation in any direction the job requires. Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect the hose during retraction. A chip-resistant CPC powder coat finish and permanently lubricated precision bearings are built in for long service life. This reel is installed by HVAC technicians, fleet mechanics, lube technicians, and general service professionals.

The EZ-SR17L-L430 is suited for air, water, oil, grease, and similar fluid service applications. Its compact side mount profile makes it a practical fit for service vehicles, tool benches, tool boxes, machine tool stations, vehicle lift systems, vertical walls, beams, and enclosed cabinet spaces. The two-bolt mounting pattern allows fast installation and detachment, supporting temporary or permanent setups at multiple workstations. The hose control bar prevents the hose from slipping off the disc during operation, keeping the line controlled and the work area safer.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts hose up to 80% slower than conventional reels for reduced snap-back hazard
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Two-bolt side mount pattern supports fast attach and detach for temporary or permanent single and multi-workstation use
• Hose control bar keeps hose seated on the disc during retraction
• CPC powder coat finish resists chipping and rust; permanently lubricated precision bearings require no routine greasing

Compatibility

Designed for air, water, oil, and grease hose service with a 1/2 inch ID, 3/4 inch OD hose up to 30 feet in length. Suitable for side mount, cabinet mount, and enclosed-space installations on service vehicles, tool benches, and vertical flat surfaces.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic. Depressurize and drain the supply line completely before connecting or disconnecting hose or swivel fittings. Use appropriate thread sealant on NPT connections per manufacturer practice. Verify the two-bolt mounting surface is structurally sound and rated for the combined weight of the reel and filled hose before securing.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 30 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 29 pounds
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• Mounting Pattern: 2-Bolt Side Mount
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SR17L-L430
