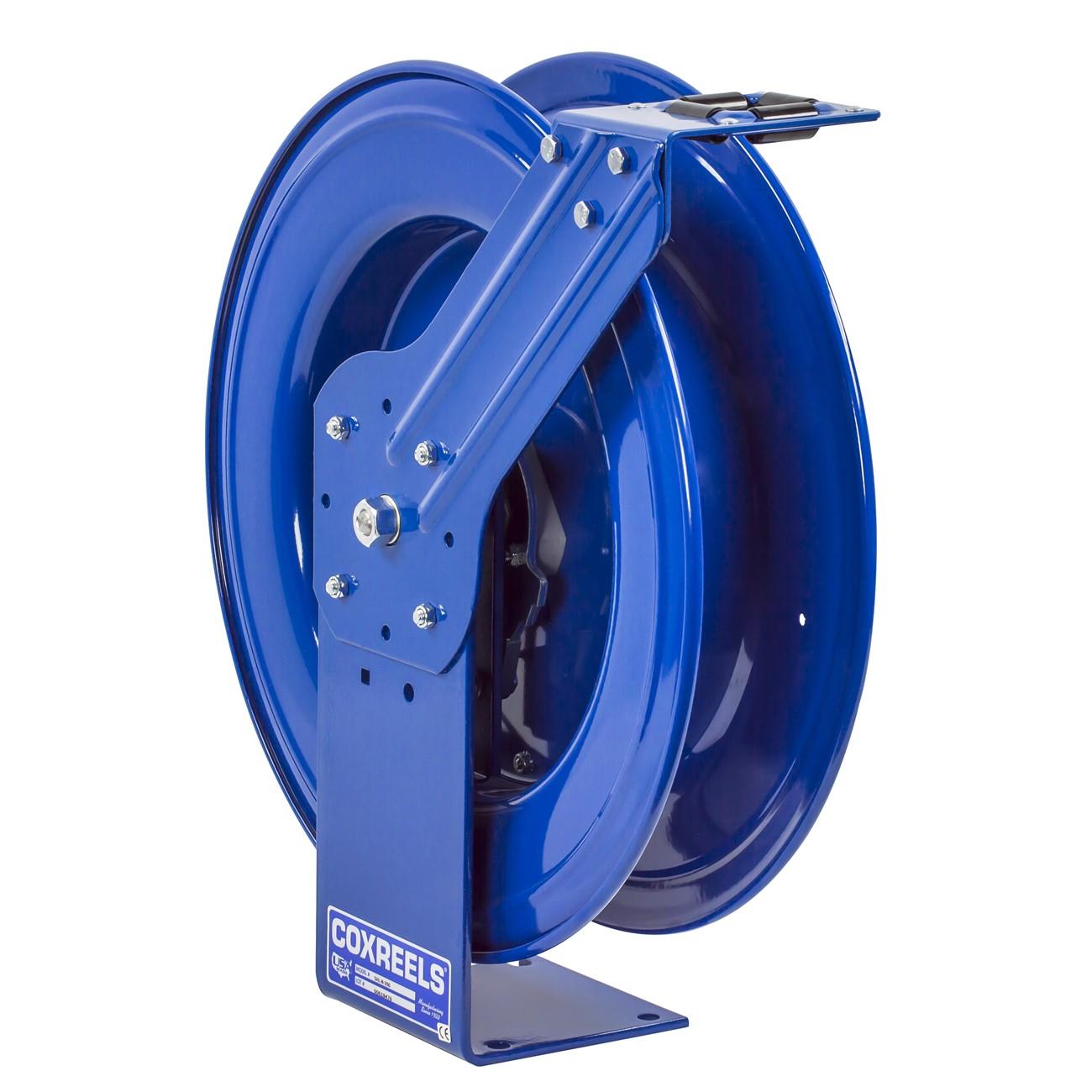

Coxreels EZ-SHL-525 Spring Driven Hose Reel 3/4 in 25 Ft

Product Description

The COXREELS EZ-SHL-525 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding industrial and trade applications. It features a dual axle support system that reduces vibration and increases structural stability during operation. The reel is equipped with the EZ-COIL safety retraction system, which slows hose retraction to up to 80% slower than conventional spring reels, reducing snap-back hazards. The heavy-duty frame accommodates a 3/4 inch ID hose up to 25 feet in length. A machined brass full-flow NPT swivel allows for fast hose installation and seal maintenance without removing the reel from its mount. This unit is intended for installation by qualified maintenance technicians, service professionals, or mechanical contractors in fixed or vehicle-mounted service bays.

The EZ-SHL-525 suits a wide range of applications including fleet maintenance facilities, industrial service bays, spray wash stations, and mobile service vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to tight or unconventional service spaces. The enclosed, lubricated cartridge-style spring motor is removable for maintenance without full reel disassembly. The single-pedestal steel base provides a no-weld, one-piece foundation for maximum stability in high-use environments.

Key Features

• EZ-COIL spring retraction system slows hose retrieval up to 80% compared to conventional reels for improved operator safety
• Super Hub dual axle support reduces vibration and reinforces structural integrity during operation
• Machined solid brass 90-degree full-flow NPT swivel supports in-place seal maintenance and hose installation
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle configurations
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed for use with 3/4 inch ID hose up to 25 feet in length. Suitable for SH Series Super Hub spring-driven reel applications in fixed or vehicle-mounted installations.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements and applicable local mechanical codes. Depressurize and disconnect the supply line before servicing the swivel, spring motor, or mounting hardware. Ensure the mounting surface is rated to support the weight and dynamic load of a loaded, operating reel. Refer to the manufacturer installation guide for guide arm positioning and fastener specifications.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1 1/16 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Base Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 45 pounds
• UPC: 674255724020

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SHL-525
