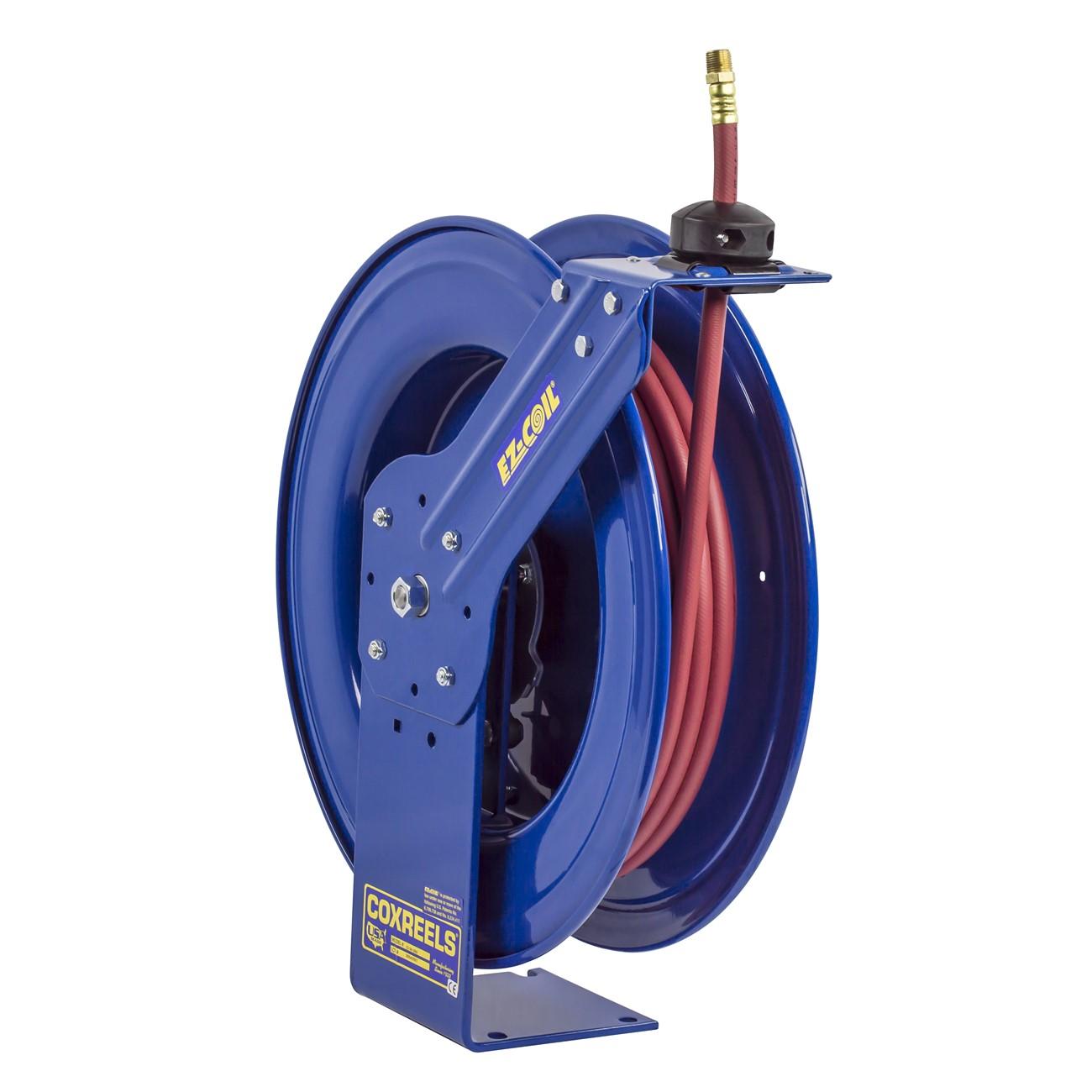

Coxreels EZ-SH-525 Spring Driven Hose Reel 3/4 in 25 Ft

Product Description

The COXREELS EZ-SH-525 is a spring-driven retractable hose reel from the SH Series Super Hub line, built for heavy-duty service in demanding trade environments. Designed to handle 3/4 inch ID hose up to 25 feet in length, this reel uses a dual axle support system that reduces vibration and increases structural stability during operation. The EZ-COIL motor is a lubricated, enclosed cartridge-style unit that retracts hose at up to 80% slower than conventional reels, reducing snap-back risk. At 52 pounds, the reel is a substantial unit suited for permanent or semi-permanent installation. Licensed HVAC technicians, plumbers, and industrial service professionals are the primary installers.

The EZ-SH-525 is suited for wall, floor, ceiling, and vehicle mounting, making it adaptable across shop, service bay, and field vehicle setups. The multi-position guide arm adjusts to match the mounting orientation without additional hardware. The single pedestal steel base is a one-piece, no-weld design that provides a stable footprint for high-cycle use. Applications include compressed air delivery, water service, and other fluid-handling tasks where a retractable spring-driven reel improves workflow and reduces hose wear.

Key Features

• EZ-COIL spring motor retracts hose up to 80% slower than conventional reels, reducing snap-back hazard
• Dual axle Super Hub support system reduces vibration and strengthens reel frame integrity
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and operator during retraction
• 1/4 inch solid steel one-piece base and support post with no-weld construction for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven reel for use with 3/4 inch ID hose up to 25 feet in length in wall, floor, ceiling, or vehicle-mount configurations.

Installation Notes

Installation is typically performed by a qualified mechanic, plumber, or HVAC technician. Shut off the fluid or air supply and depressurize the line before connecting or disconnecting the swivel fitting. The multi-position guide arm should be set to the correct orientation before the reel is fastened to its mounting surface. Ensure the mounting substrate can support the combined weight of the reel and a fully charged hose before final installation.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length: 25 feet
• Reel Type: Spring driven, EZ-COIL
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: 1/4 inch solid steel, one-piece no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Weight: 52 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-525
