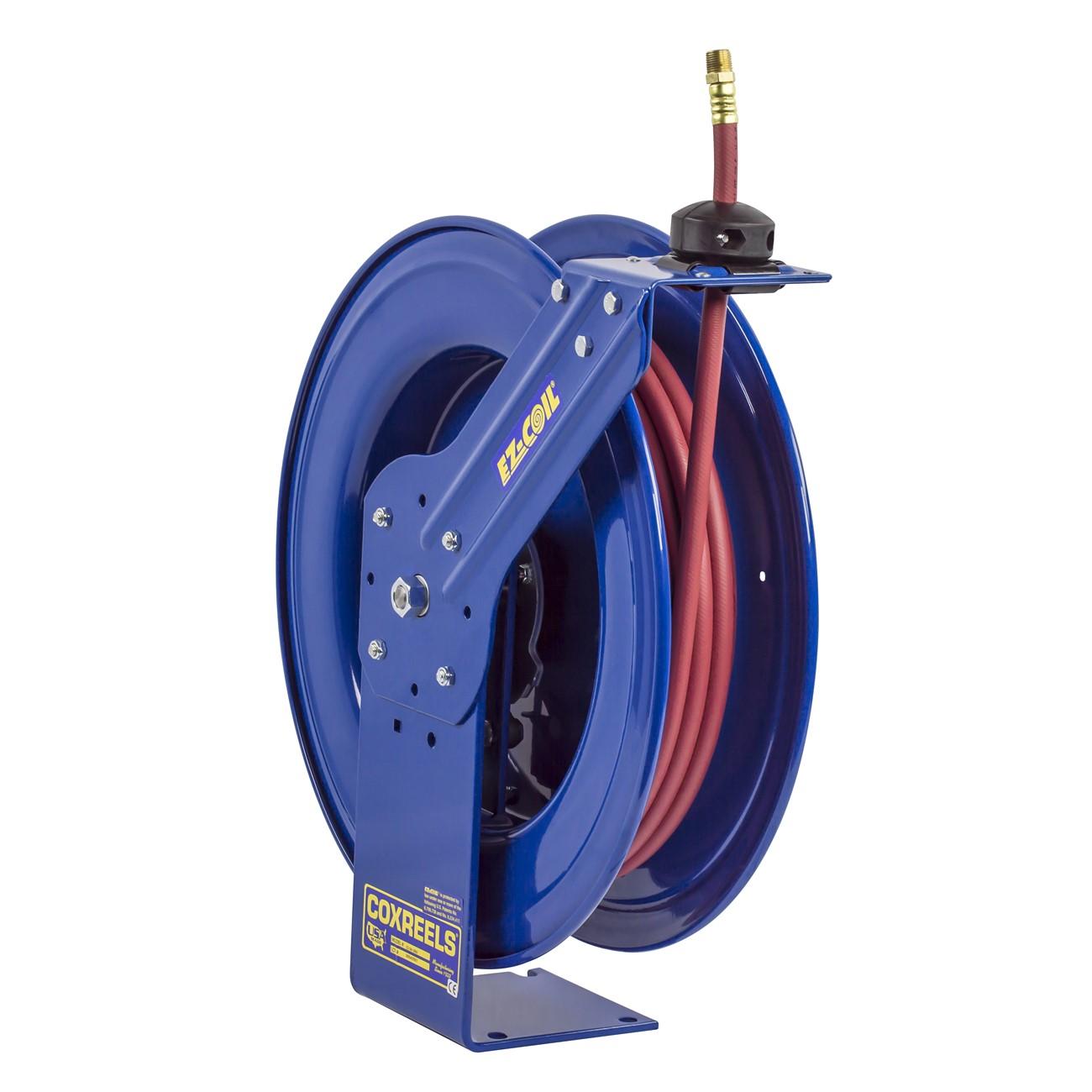

Coxreels EZ-SH-4100 Spring Driven Hose Reel 100 Ft

Product Description

The COXREELS EZ-SH-4100 is a spring-driven hose reel built on the SH Series Super Hub platform, designed for demanding trade applications where reliable hose retraction and structural durability are required. It accommodates a 1/2 inch ID, 3/4 inch OD hose up to 100 feet in length. The larger chassis and frame are engineered to handle longer hose runs and larger diameters than standard compact reels. The dual axle Super Hub support system reduces vibration and increases reel stability during operation. A licensed plumber, HVAC technician, or industrial service technician would typically install this unit in a fixed service bay, vehicle, or facility setting.

The EZ-SH-4100 is suited for both residential service environments and light commercial or industrial settings where a retractable hose reel is mounted to a wall, floor, ceiling, or service vehicle. The EZ-Coil spring motor retracts the hose at up to 80 percent slower than conventional spring reels, reducing snap-back hazards during daily use. The pedestal base supports permanent mounting in high-cycle service environments such as HVAC shops, plumbing service fleets, and fluid transfer stations.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts hose up to 80 percent slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for increased strength, hose protection, and operator safety
• Single pedestal design with solid one-piece steel base and support post — no welds — and dual axle Super Hub support for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style spring-driven retractable hose reel for trade service applications requiring 1/2 inch ID hose up to 100 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid handling systems. Shut off all pressure to the supply line before connecting or disconnecting the inlet swivel. Ensure the mounting surface — wall, floor, ceiling, or vehicle — is rated to support the unit weight of 81 pounds plus the weight of a fully loaded hose. Verify NPT thread connections are sealed properly with approved thread sealant and inspected for leaks before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven (EZ-Coil)
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, single-piece no-weld pedestal
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 81 pounds
• UPC: 674255729674

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SH-4100
