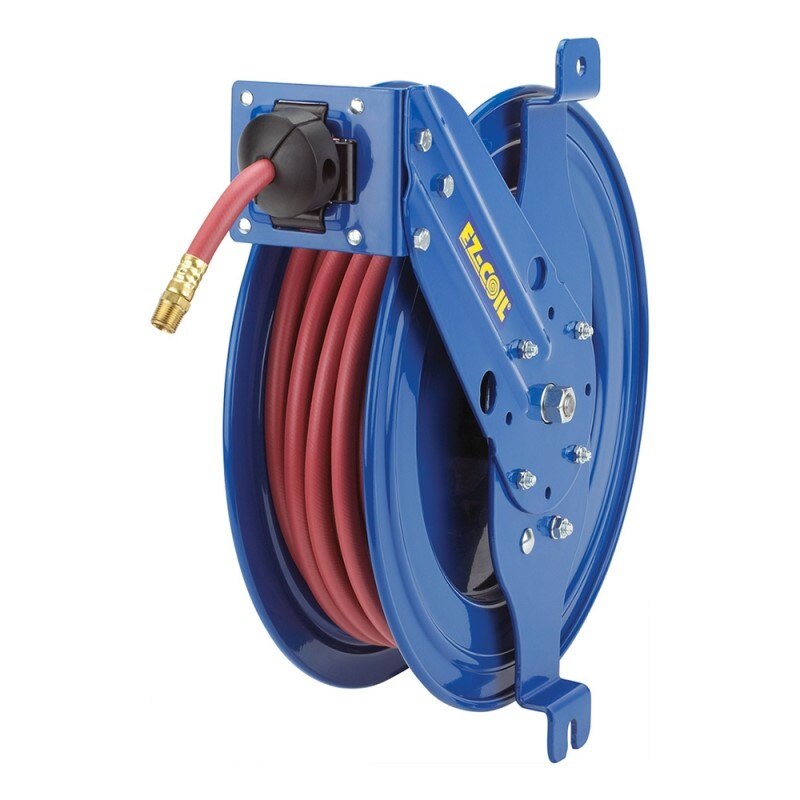

Coxreels EZ-SG19-L450 Spring Driven Side Mount Hose Reel

Product Description

The COXREELS EZ-SG19-L450 is a spring-driven, side-mount hose reel from the SG Series, built for controlled hose retraction in demanding service environments. It accepts 1/2 inch ID hose and is compatible with air, water, oil, and grease service lines. The EZ-Coil retraction system slows rewind speed by up to 80 percent compared to conventional spring reels, reducing snap-back risk during daily use. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. The unit is finished in a chip-resistant, rust-inhibiting CPC powder coat. Weighing 52 pounds, it is a heavy-duty unit suited for permanent or temporary installation on vertical flat surfaces.

This reel is designed for use on service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations where space is limited. The two-bolt mounting pattern makes it straightforward to mount or detach from any vertical flat surface, making it practical for both fixed shop installations and mobile service rigs. The adjustable six-position guide arm and roller assembly give technicians precise hose routing control in tight or confined spaces. Suitable for air, water, oil, and grease hose applications in automotive, industrial, and fleet service settings.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional spring reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose changes and seal service without dismounting the reel
• Six-position adjustable guide arm and roller assembly for maximum hose control and routing flexibility
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Two-bolt side mount pattern installs and detaches quickly on any vertical flat surface
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed for air, water, oil, and grease hose service as part of the COXREELS SG Series side-mount spring-driven hose reel line. Accepts 1/2 inch ID hose.

Installation Notes

Installation is typically performed by a qualified mechanic or industrial maintenance technician. Power down or depressurize the service line before connecting or disconnecting hose at the swivel fitting. Mount to a vertical flat surface using the two-bolt pattern, ensuring the mounting substrate is rated for the combined weight of the reel, hose, and fluid load. The guide arm position can be adjusted using a standard wrench without removing the reel from its mount.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 50 feet
• Retraction Type: Spring driven, EZ-Coil enclosed cartridge motor
• Swivel: Solid brass 90-degree full-flow NPT
• Guide Arm Positions: 6 adjustable positions
• Mounting Style: Side mount, 2-bolt vertical flat surface pattern
• Finish: CPC powder coat, chip and rust resistant
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 52 pounds
• UPC: 674255744455

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SG19-L450
