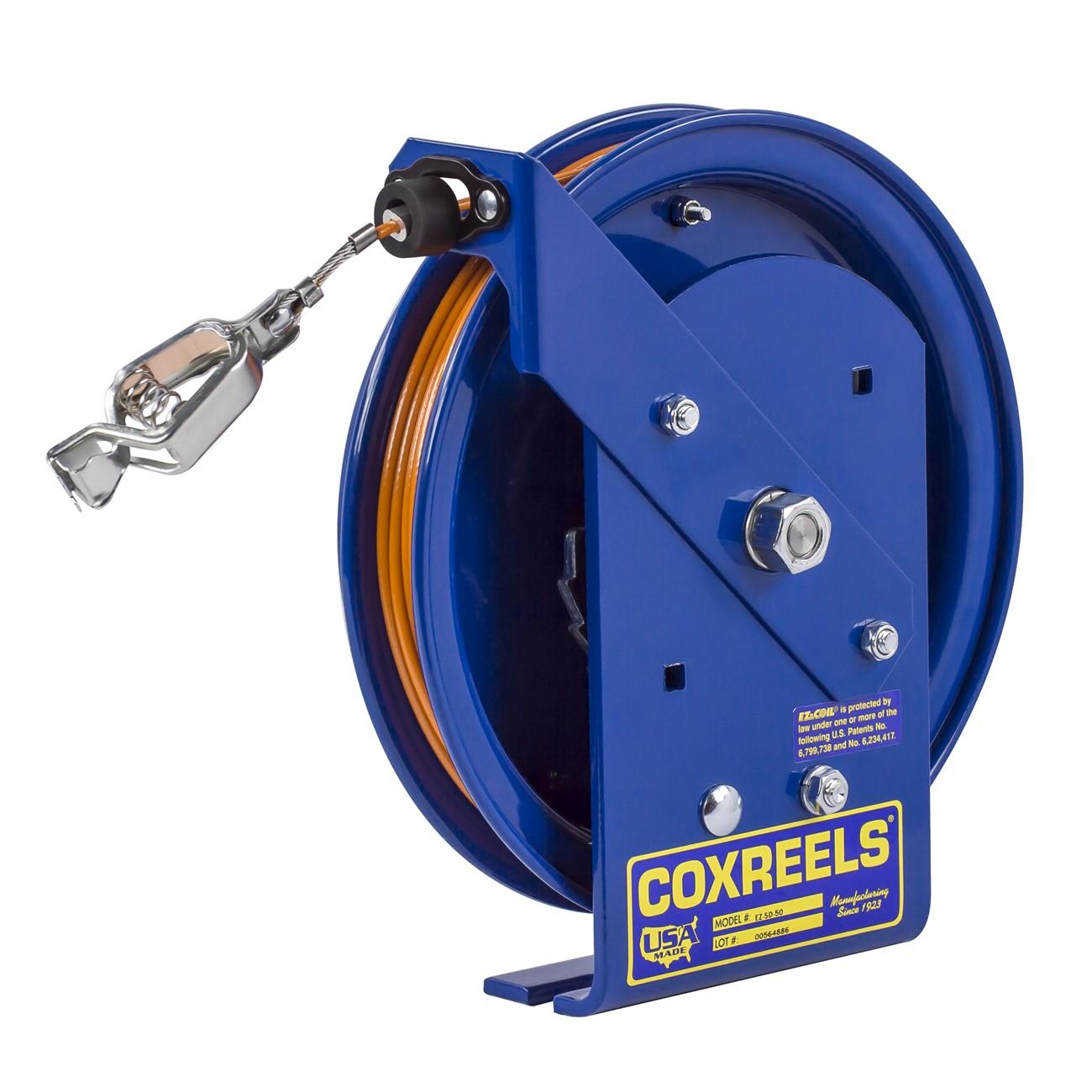

Coxreels EZ-SD-50 Static Discharge Cable Reel 50 Ft

Product Description

The COXREELS EZ-SD-50 is a static discharge cable reel built for use in combustible and potentially explosive environments. It stores and retrieves a 50-foot, 7-strand by 7-wire galvanized steel cable with a high-visibility orange vinyl cover, allowing technicians to safely ground equipment and dissipate static buildup before fueling or handling flammable materials. The reel features Coxreels patented EZ-Coil drive system, a lubricated and enclosed cartridge-style motor that retracts cable up to 80 percent slower than conventional spring-driven reels, reducing snap-back hazards. The single-pedestal steel base and CNC-spun ribbed discs with rolled edges provide structural durability for demanding shop, fleet, and industrial service environments. Licensed technicians and fuel service professionals install and rely on this reel where static discharge control is a code or safety requirement.

The EZ-SD-50 is designed for fixed and mobile installations in combustible environments, including fuel dispensing stations, bulk fuel storage facilities, fleet maintenance shops, and industrial sites handling flammable liquids or gases. The multi-position aluminum guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service setups. Static discharge reels of this type are commonly paired with fuel hose reels to create a grounded dispensing station that neutralizes static charge before fuel transfer begins.

Key Features

• EZ-Coil patented drive system retracts cable up to 80 percent slower than conventional reels, reducing snap-back risk
• Lubricated and enclosed cartridge-style motor is removable for maintenance without full reel disassembly
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base and support post, no-weld construction, for maximum pedestal stability
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• Includes 50-amp grounding clamp, adjustable solid rubber cable stop, and CPC powder-coat finish that is chip-resistant and rust-inhibiting

Compatibility

The EZ-SD-50 is part of the COXREELS SD and SDH Series and is designed as a static discharge and grounding cable reel for use in combustible environments. It is commonly paired with fuel hose reels in grounded dispensing station configurations.

Installation Notes

Installation is typically performed by qualified industrial or fleet service technicians familiar with grounding and bonding requirements in flammable-liquid environments. Shut off all fuel flow and eliminate ignition sources before mounting or servicing the reel. Follow applicable NFPA, NEC, and local fire codes governing static grounding equipment in hazardous locations. The cartridge-style EZ-Coil motor can be removed separately for service without full reel teardown.

Technical Specifications

• Cable Length: 50 ft
• Cable Construction: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Drive Type: EZ-Coil enclosed cartridge-style motor
• Base Material: Steel, no-weld one-piece construction
• Guide Arm Material: Aluminum
• Grounding Clamp: 50 amp
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 20 pounds
• UPC: 674255921320

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SD-50
