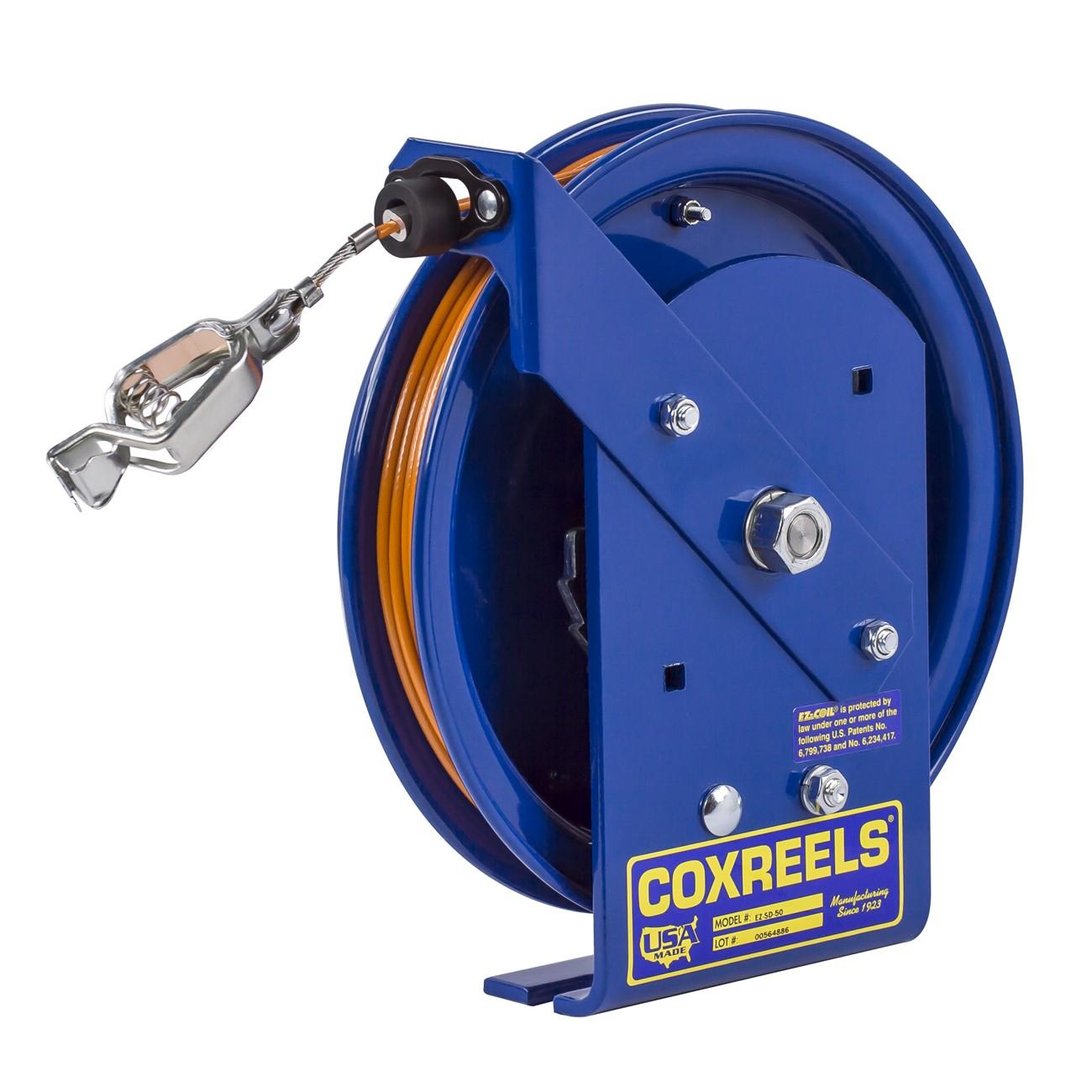

Coxreels EZ-SD-100 Static Discharge Cable Reel 100 Ft

Product Description

The COXREELS EZ-SD-100 is a heavy-duty static discharge cable reel built for use in combustible environments where uncontrolled static buildup presents an ignition risk. Part of the SD Series, this reel is engineered to safely ground equipment and personnel before fueling or fluid transfer operations begin. It ships with a 100 ft galvanized steel cable and features Coxreels patented EZ-Coil retraction system, which slows the return speed by up to 80 percent compared to conventional spring-driven reels. The steel construction and CNC-spun ribbed discs are built to withstand demanding field and facility conditions. Licensed electricians and petroleum equipment technicians are the primary installers.

The EZ-SD-100 is used in fuel transfer stations, fleet fueling facilities, aviation ground support, and industrial environments where combustible vapors or dust may be present. Static discharge reels in this series are commonly paired with fuel hose reels as part of a complete grounding and bonding system. The single-pedestal base and multi-position guide arm support wall, floor, ceiling, and vehicle mounting configurations, making the reel adaptable to a wide range of fixed and mobile installations.

Key Features

• EZ-Coil enclosed cartridge motor retracts up to 80 percent slower than conventional reels, reducing cable snap and operator risk
• Lubricated and enclosed cartridge-style motor is removable for maintenance without full reel disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cable protection
• Solid one-piece steel base with single support post and no-weld construction for maximum stability
• 100 ft, 7-strand x 7-wire galvanized steel cable with high-visibility orange vinyl cover and 50 amp grounding clamp
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber cable stop and permanently lubricated precision bearings

Compatibility

Designed as a replacement or new-installation static discharge cable reel for combustible-environment grounding applications; commonly paired with fuel hose reels requiring a dedicated grounding circuit.

Installation Notes

Installation should be performed by a licensed electrician or qualified petroleum equipment technician familiar with NFPA 77 static electricity guidelines and applicable local codes. Shut down all fuel flow and verify the area is free of ignitable vapors before mounting or servicing the reel. The multi-position guide arm must be secured to a structurally adequate surface rated for the reel weight. Do not operate the reel in a combustible environment without first confirming the grounding clamp connection is clean and making solid metal-to-metal contact.

Technical Specifications

• Cable Length: 100 ft
• Cable Type: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Grounding Clamp Rating: 50 amps
• Drive Type: EZ-Coil spring retraction
• Base Material: Steel
• Guide Arm Material: Aluminium
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 14.5 inches
• Height: 16 inches
• Weight: 32 pounds
• UPC: 674255921337

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SD-100
