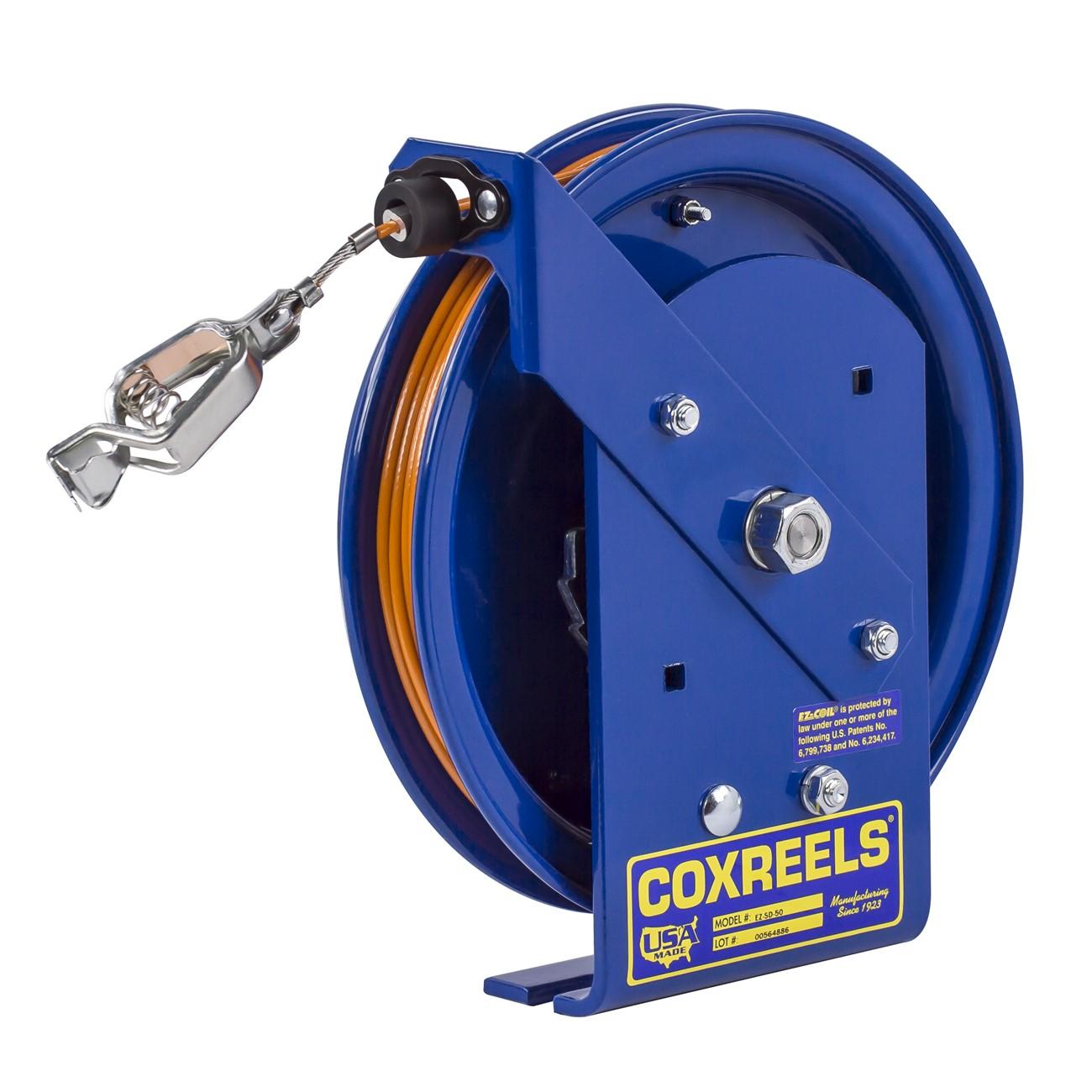

Coxreels EZ-SD-100-1 Static Discharge Cable Reel 100 Ft

Product Description

The COXREELS EZ-SD-100-1 is a static discharge cable reel built for use in combustible and hazardous environments where uncontrolled static buildup poses an ignition risk. Rated for 100 feet of 7-strand by 7-wire stainless steel cable with a high-visibility orange vinyl cover, this reel features the Coxreels EZ-Coil enclosed cartridge motor system, which slows retraction to up to 80 percent slower than conventional spring-driven reels. The heavy-gauge steel construction, CNC-spun ribbed discs, and solid one-piece steel base make it suitable for demanding industrial and fueling applications. Installation is handled by qualified technicians working in facilities requiring static grounding controls.

This reel is designed for combustible environments where static discharge grounding is required before and during fuel transfer, chemical handling, or similar operations. It is commonly paired with fuel hose reels at fueling stations, tank farms, fleet maintenance facilities, and similar fixed or vehicle-mounted installations. The multi-position aluminum guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of service layouts.

Key Features

• EZ-Coil enclosed cartridge motor retracts up to 80 percent slower than conventional reels for controlled, safer cable retrieval
• Lubricated cartridge-style motor is fully enclosed and easily removable for maintenance without disassembling the reel
• CNC robotically spun and ribbed steel discs with rolled edges for increased strength, durability, and cable protection
• Solid one-piece steel base with single pedestal support post and no-weld construction for maximum stability
• 7-strand by 7-wire stainless steel cable with high-visibility orange vinyl cover and adjustable solid rubber cable stop
• Includes 50 amp grounding clamp and CPC chip-resistant, rust-inhibiting powder coat finish

Compatibility

Designed as an OEM-style static discharge grounding reel for industrial fueling, chemical transfer, and combustible-environment applications where grounding cable reels are required by site safety protocol.

Installation Notes

Static discharge cable reels of this type are installed by qualified electrical or industrial service technicians familiar with grounding and bonding requirements for hazardous locations. De-energize any related electrical systems and follow applicable NFPA and NEC guidelines for bonding and grounding in classified hazardous areas before mounting or servicing this reel. Verify that the mounting surface and hardware are rated for the reel weight and the tension loads imposed during cable retraction. Do not bypass or remove the grounding clamp assembly during operation.

Technical Specifications

• Cable Capacity: 100 ft
• Cable Construction: 7-strand x 7-wire stainless steel
• Cable Cover: High-visibility orange vinyl
• Drive Type: EZ-Coil enclosed cartridge motor
• Base Material: Steel, one-piece no-weld construction
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Guide Arm Material: Aluminum, multi-position adjustable
• Grounding Clamp: 50 amp
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 32 pounds
• UPC: 674255923126

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SD-100-1
