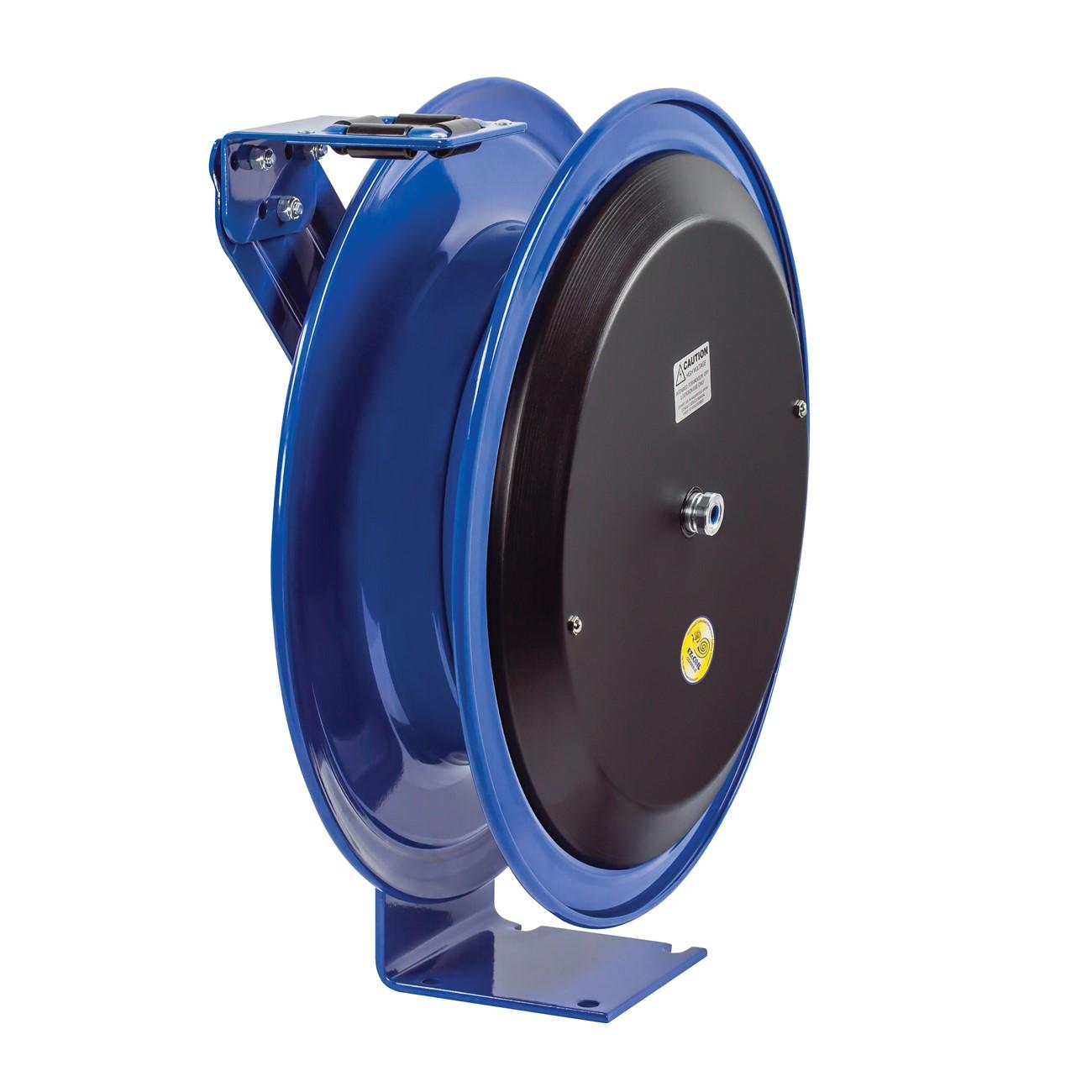

Coxreels EZ-PC24L-0016 Power Cord Reel 100 Ft Steel

Product Description

The COXREELS EZ-PC24L-0016 is a spring-driven power cord reel built for heavy-duty industrial and trade applications. The EZ-Coil drive system retracts the cord up to 80% slower than conventional reels, reducing snap-back hazards and extending cord life. The reel body is constructed from heavy-gauge steel with a chip-resistant, rust-inhibiting powder coat finish. It replaces tangled extension cords on job sites, service vehicles, and shop floors where a reliable, self-retracting power source is required. Licensed electricians and industrial maintenance technicians are the primary installers of this unit.

This cord reel is suited for commercial and industrial environments where a permanent or semi-permanent cord management solution is needed. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations. The single-pedestal steel base with a no-weld support post provides a stable platform across mounting surfaces. At 100 feet of cord capacity, the EZ-PC24L-0016 covers large work areas without the need for secondary extension cords.

Key Features

• EZ-Coil spring-driven retraction system slows rewind up to 80% compared to standard reels, reducing snap-back risk
• Lubricated, enclosed cartridge-style motor is removable for maintenance without taking the reel off its mount
• External component cover in heavy-gauge powder-coated steel allows slip ring access without dismounting
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and cord protection
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mount configurations
• Solid one-piece steel base with no-weld single pedestal design and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven power cord reel in the COXREELS PC Series product family, suitable for industrial and commercial cord management installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize all circuits at the breaker before making electrical connections. Secure the mounting base to a structurally sound surface rated for the combined weight of the reel and cord load. Do not exceed the cord reel rated capacity or bend radius during installation.

Technical Specifications

• Cord Capacity: 100 feet
• Drive Type: EZ-Coil Spring Driven
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 62 pounds
• Material: Steel
• Finish: Powder Coat
• UPC: 674255922921

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC24L-0016
