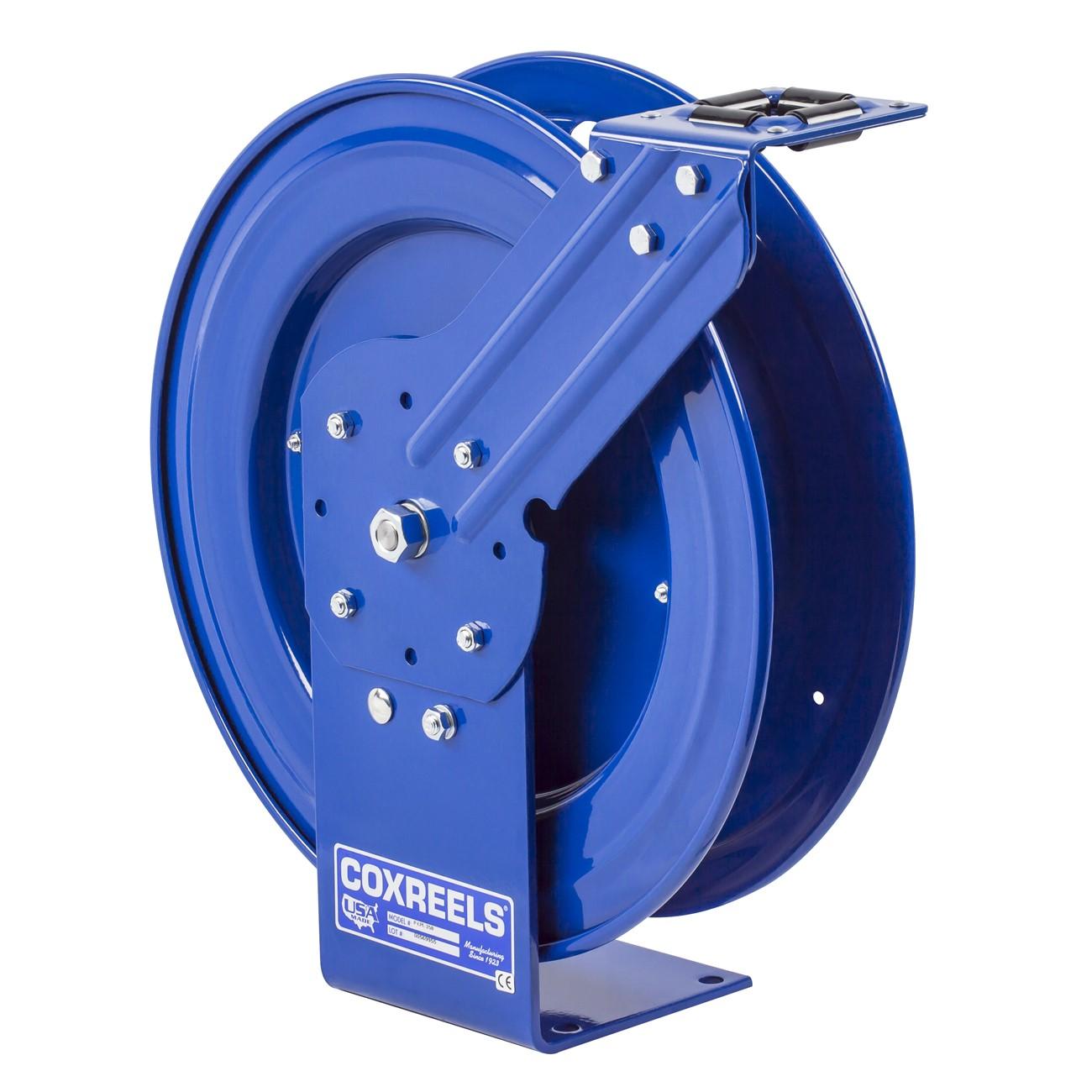

Coxreels EZ-P-LPL-450 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS EZ-P-LPL-450 is a spring-driven retractable hose reel built for demanding trade environments where reliability and compact footprint both matter. Designed around a 1/2 inch inner diameter, 3/4 inch outer diameter hose path with a 50-foot capacity, this unit is part of the COXREELS P Series line — a platform with a long service history in industrial, commercial, and fleet maintenance applications. The EZ-COIL spring motor retracts the hose up to 80 percent slower than conventional reels, reducing snap-back hazards during retraction. The heavy-duty CNC robotically spun and ribbed disc construction, combined with rolled edges, gives the reel durability well beyond light-duty alternatives. Licensed tradespeople and shop technicians are the primary installers.

The EZ-P-LPL-450 suits a wide range of applications including fleet service bays, manufacturing facilities, commercial garages, and mobile service vehicles. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to tight or unconventional install locations. The single-pedestal steel base supports stable fixed mounting without requiring a welded frame. This reel is sized and built for professional fluid transfer and compressed air service lines where consistent retraction performance and low maintenance overhead are operational priorities.

Key Features

• EZ-COIL enclosed cartridge spring motor retracts hose up to 80 percent slower than standard reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect hose jacket from edge wear
• 1/4 inch solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style spring-driven retractable hose reel replacement or new installation unit for professional fluid and air service applications requiring a 1/2 inch ID, 50-foot hose capacity reel.

Installation Notes

Installation is typically performed by a qualified mechanic, industrial maintenance technician, or plumbing professional. Power down or depressurize the supply line completely before connecting or disconnecting the swivel inlet. Mount to a structurally sound surface rated to support the combined weight of the reel and fluid-filled hose. Verify NPT thread connections are properly sealed with appropriate thread sealant per local code requirements before returning the line to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 50 feet
• Reel Drive Type: Spring driven
• Swivel Material: Solid brass
• Base Material: Steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 43 pounds
• UPC: 674255734616

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LPL-450
