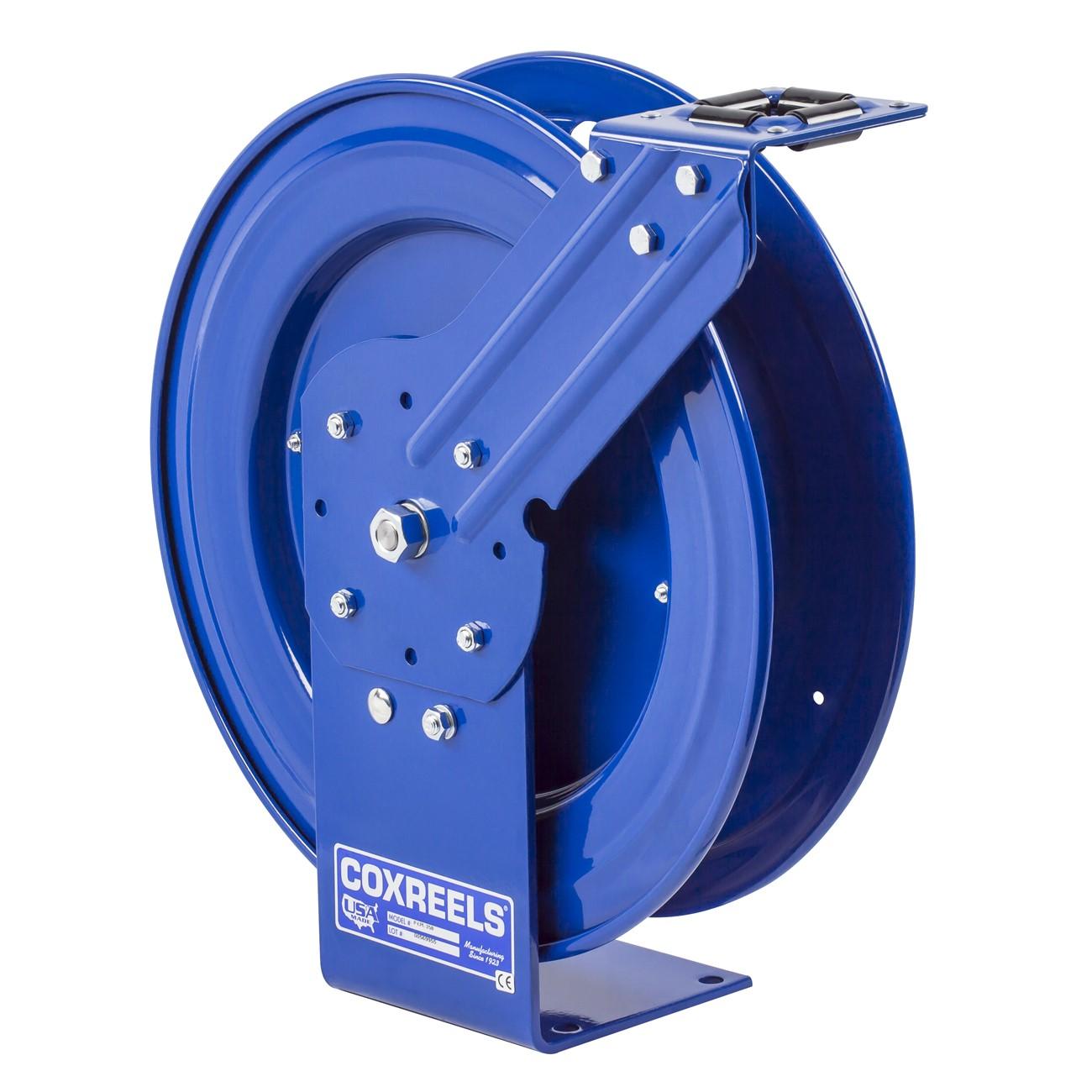

Coxreels EZ-P-LPL-350 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS EZ-P-LPL-350 is a spring-driven hose reel from the EZ-P Series, built for demanding trade and industrial environments where reliable hose management and fast retraction are essential. The reel accommodates 3/8 inch ID hose up to 50 feet in length and features Coxreels patented EZ-Coil spring motor system, which retracts hose up to 80% slower than conventional reels to reduce snap-back risk. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges deliver long-term durability in high-cycle service. Licensed HVAC technicians, plumbers, and industrial mechanics commonly specify this reel for permanent and vehicle-mounted installations.

The EZ-P-LPL-350 is suited for use in residential and commercial service environments where a compact, wall-, floor-, ceiling-, or vehicle-mounted hose reel is required. The multi-position guide arm accommodates a wide range of mounting orientations without modification, making it practical for service vans, shop bays, and mechanical rooms. The 1/4 inch solid steel single-pedestal base with no-weld construction provides stable support in high-vibration or mobile applications. The solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts hose up to 80% slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal maintenance and hose installation without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, hose protection, and durability
• 1/4 inch solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed to accept 3/8 inch ID hose up to 50 feet in length. Suitable for typical spring-driven hose reel applications in trade service, shop, and mobile vehicle installations.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements. Shut off and depressurize the supply line before connecting or disconnecting hose. Secure the reel to a structurally sound mounting surface rated for the combined weight of the reel and loaded hose. Consult applicable facility or vehicle codes for mounting hardware and clearance requirements.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Capacity: 50 feet
• Spring Drive: EZ-Coil enclosed cartridge-style motor
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: 1/4 inch solid steel, no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 36 pounds
• UPC: 674255723993

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LPL-350
