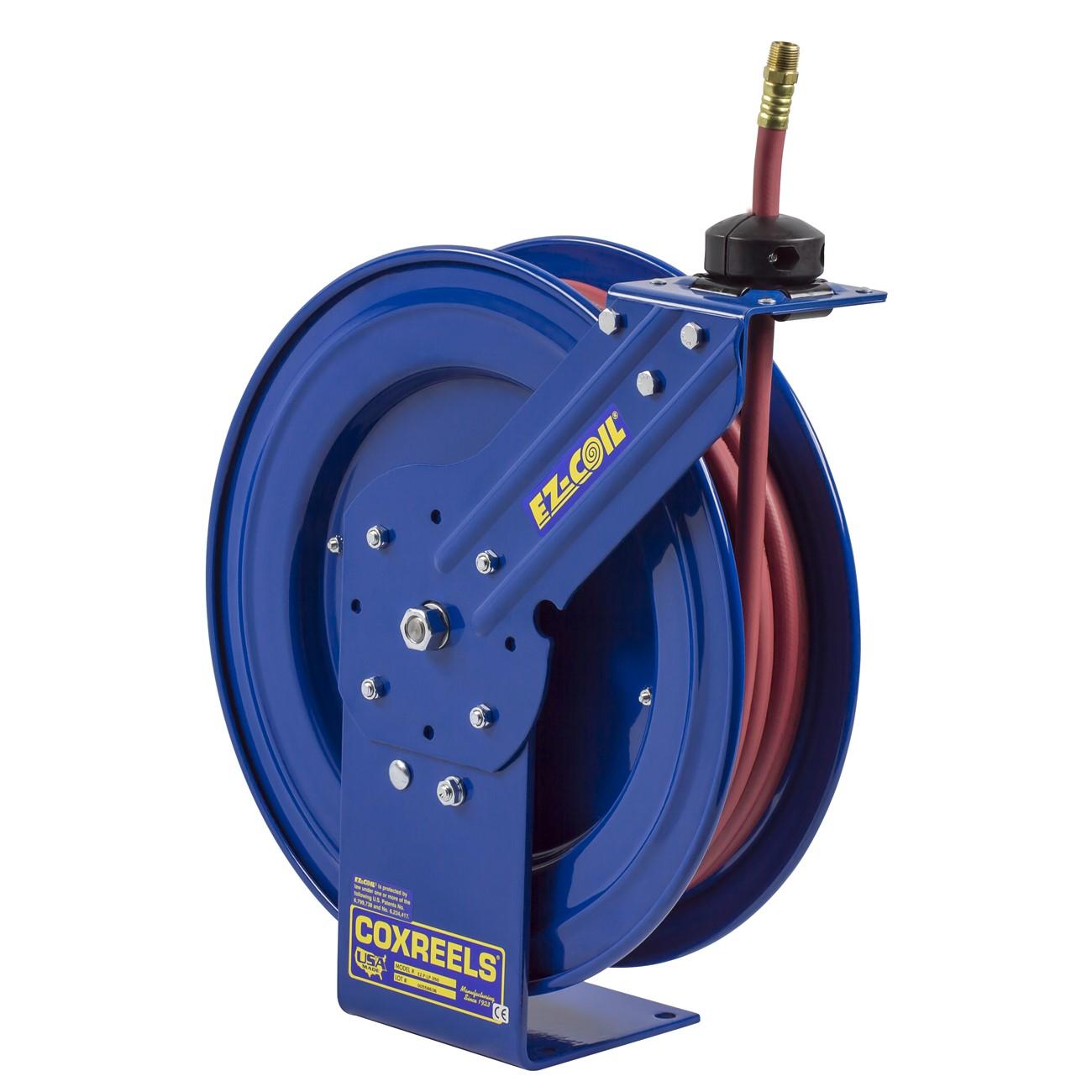

Coxreels EZ-P-LP-450 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS EZ-P-LP-450 is a spring-driven hose reel built for demanding trade and industrial applications. Part of the EZ-P Series, it features the patented EZ-Coil retraction system that retracts up to 80 percent slower than conventional reels, reducing hose wear and operator injury risk. The reel accepts 1/2 inch ID, 3/4 inch OD hose up to 50 feet in length. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges provide structural rigidity and protect hose from abrasion. The unit weighs 51 pounds and measures 17.5 inches long, 8.5 inches wide, and 19.25 inches tall. Licensed HVAC, plumbing, and industrial service technicians are the primary installers.

This reel is suited for use in light industrial, commercial, and service vehicle installations where a compact, reliable retractable hose reel is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it flexible across shop, fleet, and field service environments. The single-pedestal steel base eliminates welded joints, contributing to long-term stability in high-cycle applications. The CPC powder coat finish resists chipping and rust in wet or corrosive service conditions.

Key Features

• EZ-Coil patented retraction system slows recoil up to 80 percent compared to conventional spring reels
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with single pedestal design, no welds, for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven hose reel for trade and industrial service applications requiring 1/2 inch ID hose up to 50 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements. Before servicing the spring motor cartridge, relieve all hose pressure and secure the reel against unintended rotation. Mount to a structurally adequate surface using hardware rated for the combined weight of the reel and fluid-filled hose. Consult local and facility safety codes for overhead and vehicle-mount installations.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 50 feet
• Retraction Type: Spring driven, EZ-Coil
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 51 pounds
• Base Material: Steel, one-piece no-weld construction
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255732391

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-450
